The Text Control Reporting engine MailMerge can populate fields automatically during the merge process. These fields can be also combined with MS Word compatible form fields such as checkboxes.

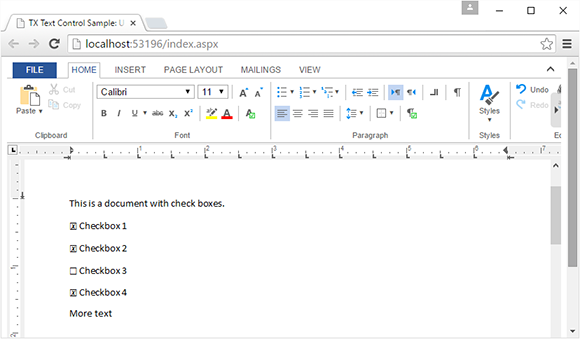

This sample project shows how to display checkbox fields in the HTML5 based Web.TextControl and how to handle the Javascript event TextFieldClicked.

HTML5: Display and handle FormCheckBox fields

The following method loads the document into a temporary ServerTextControl to loop through all ApplicationFields. When FormCheckBoxes are found, a Checked or Unchecked Unicode character is set based on the checked status of the field.

* ProcessCheckboxFields method
* desc: Sets the Unicode characters for all
* checkbox fields
* parameter: document - the document in the internal
* Text Control format
private byte[] ProcessCheckboxFields(byte[] document)
// create a new temporary ServerTextControl
using (TXTextControl.ServerTextControl tx =
new TXTextControl.ServerTextControl())
// load the document
// loop through all ApplicationFields
foreach (IFormattedText textPart in tx.TextParts)
foreach (ApplicationField field in textPart.ApplicationFields)
if ((field.TypeName != "FORMCHECKBOX"))
return null;
// create a new adapter field
FormCheckBox checkboxField = new FormCheckBox(field);
// select the field to change the font name
textPart.Selection.Start = checkboxField.Start - 1;
textPart.Selection.Length = checkboxField.Length;
textPart.Selection.FontName = "Arial Unicode MS";
// set the text (state)
checkboxField.Text =
checkboxField.Checked == true ? CHECKED : UNCHECKED;
tx.Save(out document, BinaryStreamType.InternalUnicodeFormat);
return document;
view raw index.aspx.cs hosted with ❤ by GitHub

In the client-side Javascript, the TX Text Control event TextFieldClicked is used to update the AJAX UpdatePanel with the clicked field name as a parameter:

<script type="text/javascript">
// attach the 'textFieldClicked' event
TXTextControl.addEventListener("textFieldClicked", function (e) {
fieldClicked(e.fieldName, e.fieldType, e.typeName);
// do an AJAX postback on the UpdatePanel
function fieldClicked(fieldName, fieldType, typeName) {
__doPostBack('<%= UpdatePanel1.ClientID %>', fieldName);
view raw index.js hosted with ❤ by GitHub

In the code-behind, the AJAX call is processed and based on the argument, the clicked checkbox field is toggled.

protected void Page_Load(object sender, EventArgs e)
// handle the AJAX postback
string eventTarget =
string eventArgument =
// if the event argument is set, toggle the checkbox
if (eventArgument != null)
view raw index.aspx.cs hosted with ❤ by GitHub

Try the complete sample by cloning the repository from GitHub. Happy coding!
