Creating your First Angular Application

This tutorial shows how to create your first Angular application using the TX Text Control document viewer.

Prerequisites

1. Create your free trial access token here:

   Create Access Token

2. Install Node.js® and npm, if not done before.

3. Open a Command Prompt and install the Angular CLI globally by typing in the following command:

   npm install -g @angular/cli

This tutorial uses Visual Studio Code that can be downloaded for free.

Creating the Angular Project

1. Open a Command Prompt and create a new project and default app by typing in the following command:

   ng new my-viewer-app

   Follow the questions in the command prompt by answering them with "y" to add Angular routing and Enter to confirm CSS as your preferred stylesheet format.

2. Change into the created folder by typing in the following command:

   cd my-viewer-app

3. Install the TX Text Control document viewer package by typing in the following command:

   ng add @txtextcontrol/tx-ng-document-viewer

   Supported Angular Versions

   Are you getting an error similar to this?

   ERESOLVE unable to resolve dependency tree

   You have two options here:

   1. Please check the supported Angular versions of tx-ng-document-editor and downgrade Angular and the global Angular CLI version to a version that will satisfy the requirement.

   2. Force the installation of the package. Read more about that here:
      Document Editor and Viewer with Newer Versions of Angular CLI

4. Open this folder in Visual Studio Code by typing in the following command:

   code .

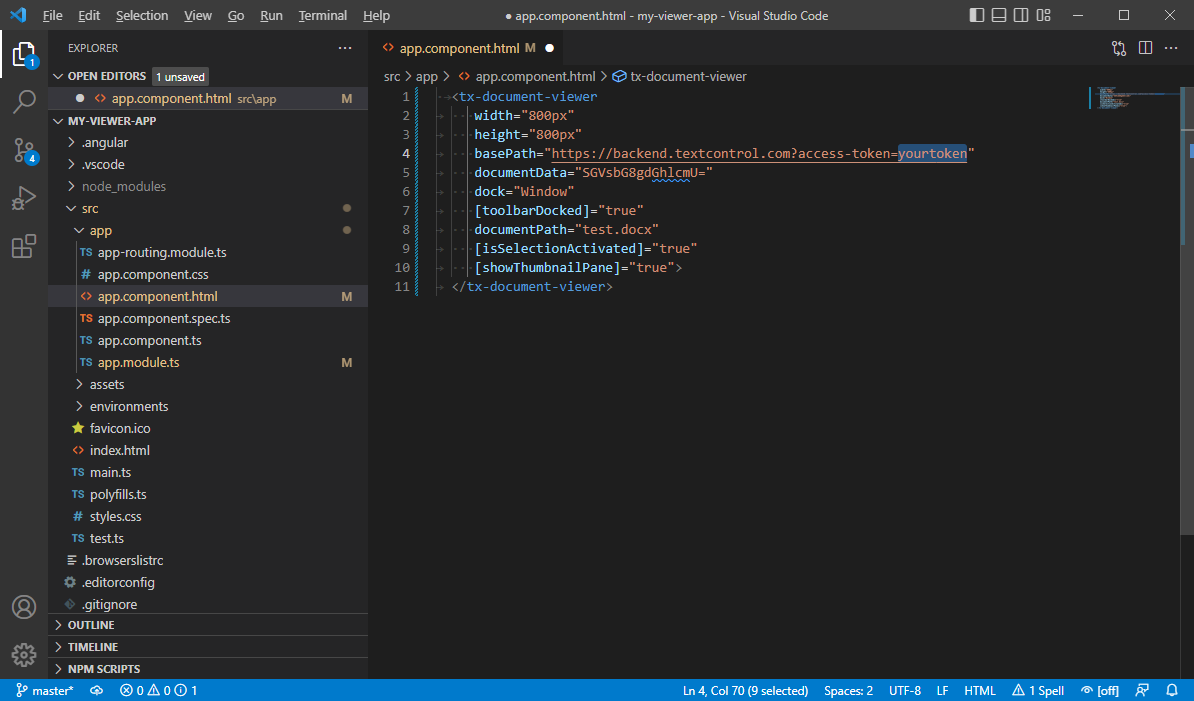

5. In Visual Studio Code, open the file src -> app -> app.component.html, add replace the complete content with the following code, replace yourtoken with your given Trial Access Token and save it:

   <tx-document-viewer
      width="800px"
      height="800px"
      basePath="https://backend.textcontrol.com?access-token=yourtoken"
      documentData="SGVsbG8gdGhlcmU="
      dock="Window"
      [toolbarDocked]="true"
      documentPath="test.docx"
      [isSelectionActivated]="true"
      [showThumbnailPane]="true">
   </tx-document-viewer>

   Backend Server

   In the code above, a hosted demo backend server is used specified through the basePath property. If you are hosting your own required backend server, replace the URL with your backend endpoint.



6. Back in the command prompt, start the Angular application by typing in the following command:

   ng serve --open
