The product TX Text Control .NET Server for ASP.NET contains different modules, components and services to provide document processing functionality and backend tasks for visual document editing libraries.

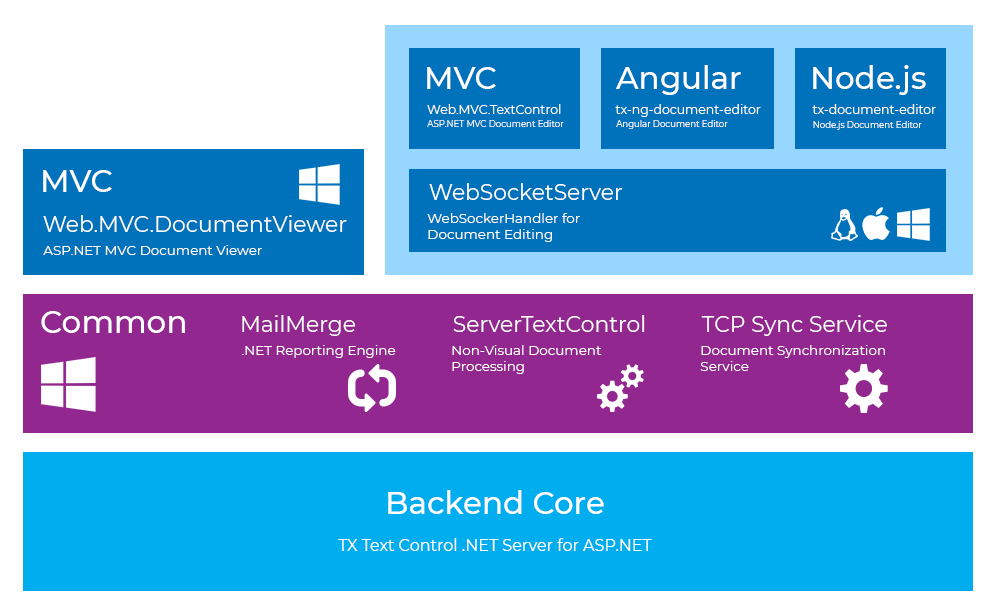

The following diagram shows these features and also illustrates the dependencies for various functionalities.

Modules and layers of TX Text Control

The Backend Core

TX Text Control .NET Server for ASP.NET runs on Windows machines (Server and Desktop) and provides common document processing functionality. The setup must be installed in order to develop using the libraries and services with a developer license. When applications are deployed, a developer license is not required and only the redistributable files need to be copied.

Common Functionalities

The backend offers 3 major common functionalities:

  • MailMerge
    The MailMerge TX Text Control .NET Server for ASP.NET
    DocumentServer Namespace
    MailMerge Class
    The MailMerge class is a .NET component that can be used to effortlessly merge template documents with database content in .NET projects, such as ASP.NET web applications, web services or Windows services.
    class provides the core functionality to merge hierarchical data into templates. This component is taking care of populating fields, images, charts, barcodes and other dynamic elements with associated data fields.

  • ServerTextControl
    The ServerTextControl TX Text Control .NET Server for ASP.NET
    TXTextControl Namespace
    ServerTextControl Class
    The ServerTextControl class implements a component that provide high-level text processing features for server-based applications.
    class is the non-UI document processing component to create and edit documents using a fully featured API. This component can be used to load and save various document types including MS Word DOC, DOCX, RTF and Adobe PDF. It can be connected to the MailMerge engine to merge data into documents loaded into ServerTextControl.

  • TCP Synchronization Service
    The TCP synchronization service runs on a Windows machine to synchronize the document and calculate rendering information for the visual document editor components. This service enables the true WYSIWYG, pixel-perfect rendering including server-side fonts that can be used with all clients and browsers.

DocumentViewer and WebSocketServer

On top of these common features of TX Text Control .NET Server for ASP.NET, the package provides client-side components to display and edit documents.

  • MVC DocumentViewer
    The DocumentViewer is a lightweight, cross-browser compatible, mobile-friendly viewer for ASP.NET MVC. It is typically used to display documents and resulting reports in ASP.NET MVC web applications. Documents can be loaded from files resides physically server-side, from data or from JavaScript.

  • WebSocketServer
    The WebSocketServer provides the WebSocketHandler which is the communication proxy between the client-side editing components and the TCP Synchronization Service. The client-side components open a consistent WebSocket connection to the WebSocketServer to synchronize the rendering.

Client-Side Document Editing

The client-side document editing components are all based on the WebSocketServer which can be either hosted on Windows or other operating systems.

  • MVC Document Editor
    The Web.MVC.TextControl TX Text Control .NET Server for ASP.NET
    Web.MVC Namespace
    TextControl Class
    The TextControl class represents an extension object implementing the Text Control rich text editor functionality.
    class represents an extension object implementing the rich text editor functionality for ASP.NET MVC applications. It is available as a NuGet package and can be used without any reference to other TX Text Control assemblies. But a connection to a WebSocketServer is required. This component runs on Windows only.

  • TX Text Control for Angular
    TX Text Control for Angular represents an Angular component implementing the rich text editor functionality for Angular applications. It is available as an npm package and can be used without any reference to other TX Text Control assemblies. But a connection to a WebSocketServer is required. This component can be used on any platform including Windows and Linux.

  • TX Text Control for Node.js
    TX Text Control for Node.js represents a Node.js component implementing the rich text editor functionality for Node.js applications. It is available as an npm package and can be used without any reference to other TX Text Control assemblies. But a connection to a WebSocketServer is required. This component can be used on any platform including Windows and Linux.
