Opening Microsoft Excel files with TX Text Control X16

TX Text Control X16 imports Microsoft Excel spreadsheets and converts worksheets into document tables with preserved formatting, formulas, and cell number formats. Using LoadSettings, developers can retrieve worksheet names and load multiple sheets into separate sections.

Opening Microsoft Excel files with TX Text Control X16

Since TX Text Control X16 (26.0), Microsoft Excel spreadsheets can be loaded. Worksheets are converted into TX Text Control tables with formatting, formulas and cell number formats.

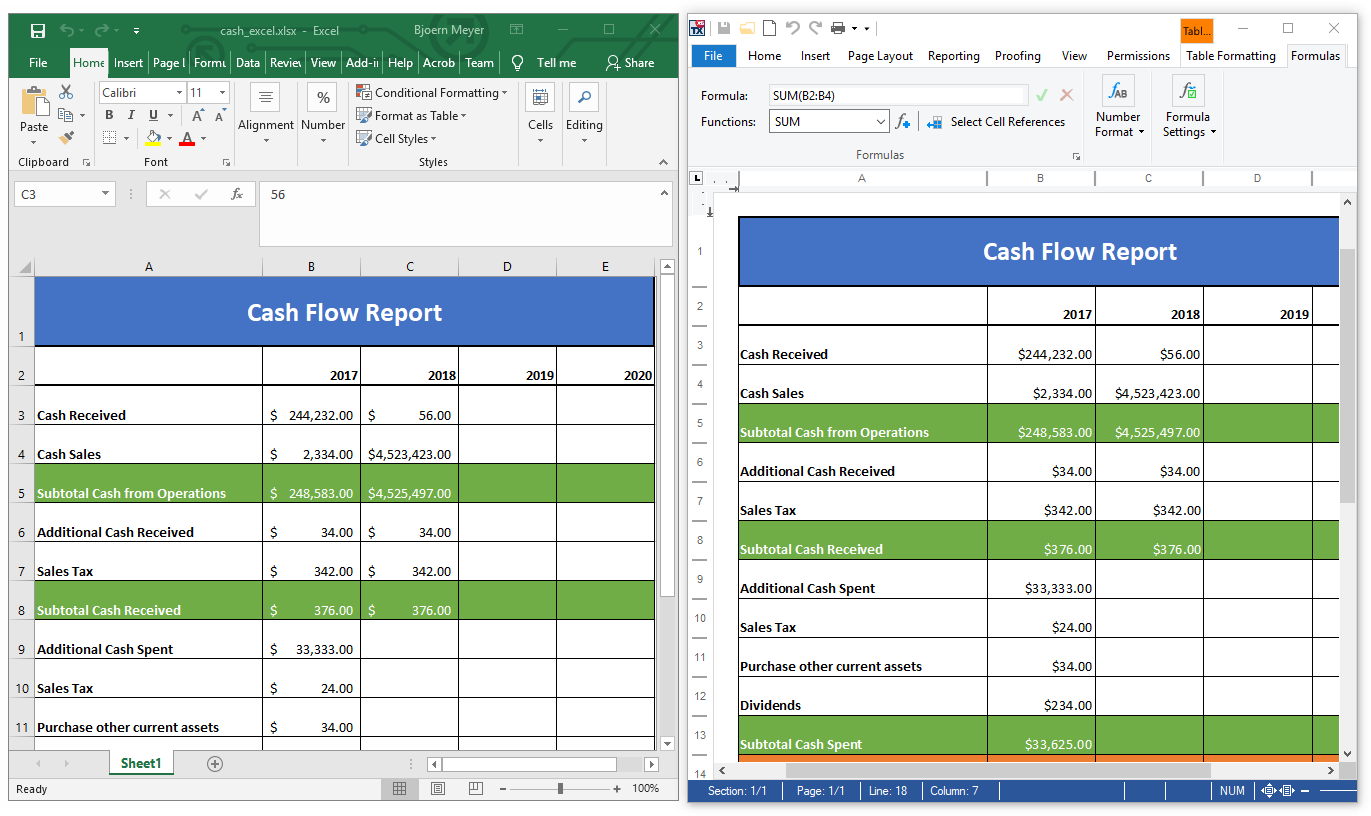

Excel documents

After a table has been created, included formulas are evaluated automatically and values are calculated when values of referenced cells are changed. By default, the formulas are evaluated automatically, but this can be disabled using the TXTextControl.TextControl.IsFormulaCalculationEnabled property.

If an Excel document contains more worksheets, the TXTextControl.LoadSettings.GetDocumentPartNames method can be used to retrieve a list of available worksheets in an Excel document. The name of a worksheet can be defined on loading the document using the TXTextControl.LoadSettings.DocumentPartName property.

Excel documents can be loaded, appended and inserted at the current input position. The following code loops through the returned document part names and imports all available worksheets into new sections in a TX Text Control document.

string[] sDocumentParts = LoadSettings.GetDocumentPartNames("cash_excel.xlsx",
  StreamType.SpreadsheetML);
LoadSettings ls = new LoadSettings();

foreach (string documentPart in sDocumentParts)
{
    ls.DocumentPartName = documentPart;

    textControl1.Append("cash_excel.xlsx",
      StreamType.SpreadsheetML,
      ls,
      AppendSettings.StartWithNewSection);
}

Test this on your own and download a trial version of TX Text Control X16.
