The ZUGFeRD / Factur-X standard is a hybrid electronic invoice format that consists of two parts:

• A PDF visual, human-readable representation of the invoice.

• An XML file that contains invoice data in a structured form that can be processed automatically.

TX Text Control X19 supports the embedding of attachments in PDF/A-3b documents and also the extraction of an attachment. This sample shows 3 steps of the creation process using TX Text Control:

• Creating the required ZUGFeRD XML.
• Creating the visual representation.
• Export both to a valid PDF/A-3b document.

Embedding Existing XML

In case, you already have a valid XML representation created by a third-party tool or an ERP system, you can easily embed this XML to a PDF document using the Save method by specifying an EmbeddedFile in the SaveSettings.

string xmlZugferd = ""; // your XML
string metaData = ""; // required RDF meta data

TXTextControl.SaveSettings saveSettings = new TXTextControl.SaveSettings();

// create a new embedded file
var zugferdInvoice = new TXTextControl.EmbeddedFile(
  "ZUGFeRD-invoice.xml",
  Encoding.UTF8.GetBytes(xmlZugferd),
  metaData);

zugferdInvoice.Description = "ZUGFeRD-invoice";
zugferdInvoice.Relationship = "Alternative";
zugferdInvoice.MIMEType = "application/xml";
zugferdInvoice.LastModificationDate = DateTime.Now;

// set the embedded files
saveSettings.EmbeddedFiles = new TXTextControl.EmbeddedFile[] {
  new TXTextControl.EmbeddedFile(
     "ZUGFeRD-invoice.xml",
     Encoding.UTF8.GetBytes(xmlZugferd),
     metadata) };

// export the PDF
textControl1.Save("test.pdf", TXTextControl.StreamType.AdobePDFA, saveSettings);

Create ZUGFeRD XML

For demo purposes, we implemented the helper class TXTextControl.DocumentServer.PDF.Zugferd.Invoice that creates a valid ZUGFeRD XML. The method CreateSampleInvoice returns the required XML that is embedded into the created PDF document.

private Invoice CreateSampleInvoice() {
   // new zugferd invoice
   Invoice invoice = new Invoice("A12345", DateTime.Now, CurrencyCode.USD);

   invoice.Type = InvoiceType.Invoice;
   invoice.Profile = Profile.Comfort;

   // buyer
   invoice.Buyer = new TradeParty {
      ID = "TX_1",
      Name = "Text Control GmbH",
      ContactName = "Peter Paulsen",
      City = "Bremen",
      Postcode = "28217",
      Country = CountryCode.DE,
      Street = "Überseetor 18"
   };

   // seller
   invoice.Seller = new TradeParty {
      ID = "TX_2",
      Name = "Text Control, LLC",
      ContactName = "Jack Jackson",
      City = "Charlotte, NC",
      Postcode = "28210",
      Country = CountryCode.US,
      Street = "6926 Shannon Willow Rd, Suite 400",
   };

   // add tax id's
   invoice.Seller.SpecifiedTaxRegistrations.Add(
      new TaxID() { ID = "US12367623", Scheme = TaxScheme.VA });

   // add products
   List<LineItem> lineItems = new List<LineItem>();

   lineItems.Add(new LineItem() {
      Price = 200,
      ProductID = "A123",
      Name = "Product A",
      Quantity = 5,
      Total = 1000,
      UnitCode = QuantityCodes.C62
   });

   // add line items to invoice
   foreach (LineItem item in lineItems)
      invoice.LineItems.Add(item);

   // set the total amount
   invoice.TotalAmount = 1000;

   return invoice;
}

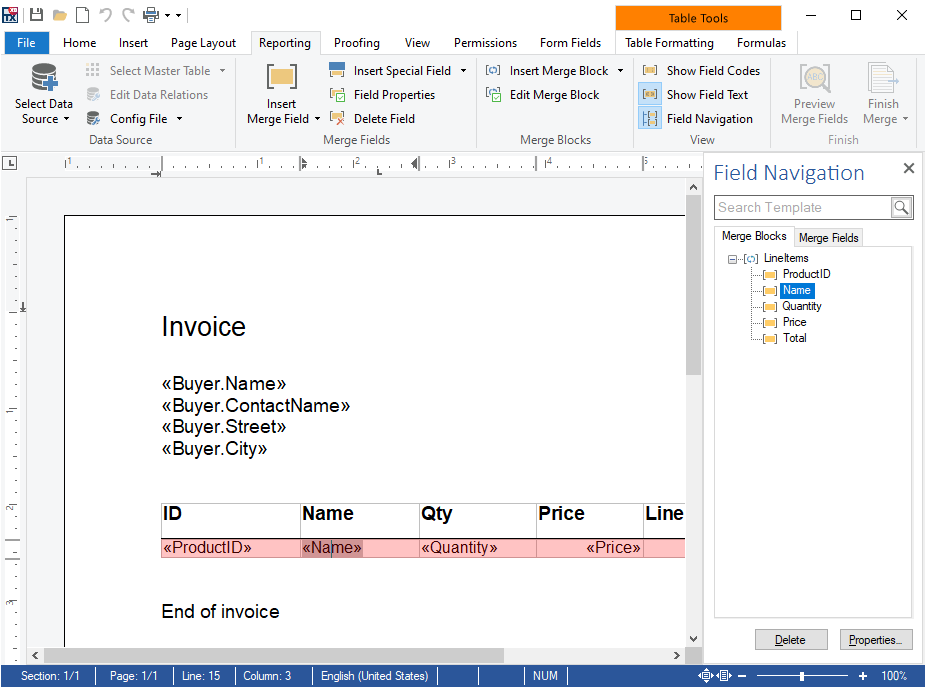

In the sample application, a very simple template is used to create the visual representation of the invoice:

The following code loads the template into a TextControl and uses MailMerge to merge the sample data into the document. The CreateXml method of the Invoice class returns the valid ZUGFeRD XML. Together with the required meta data, the XML is embedded and exported to a valid PDF/A-3b document.

TXTextControl.DocumentServer.MailMerge mm = new TXTextControl.DocumentServer.MailMerge();
mm.TextComponent = textControl1;

textControl1.Load("invoice.tx", TXTextControl.StreamType.InternalUnicodeFormat);

Invoice invoice = CreateSampleInvoice();

// merge data into template
mm.MergeJsonData(JsonConvert.SerializeObject(invoice));

// create the XML
string xmlZugferd = invoice.CreateXml();

// get the required meta data
string metaData = MetaData.GetMetaData();

TXTextControl.SaveSettings saveSettings = new TXTextControl.SaveSettings();

// create a new embedded file
var zugferdInvoice = new TXTextControl.EmbeddedFile(
  "ZUGFeRD-invoice.xml",
  Encoding.UTF8.GetBytes(xmlZugferd),
  metaData);

zugferdInvoice.Description = "ZUGFeRD-invoice";
zugferdInvoice.Relationship = "Alternative";
zugferdInvoice.MIMEType = "application/xml";
zugferdInvoice.LastModificationDate = DateTime.Now;

// set the embedded files
saveSettings.EmbeddedFiles = new TXTextControl.EmbeddedFile[] {
  new TXTextControl.EmbeddedFile(
     "ZUGFeRD-invoice.xml",
     Encoding.UTF8.GetBytes(xmlZugferd),
     metaData) };

// export the PDF
textControl1.Save("test.pdf", TXTextControl.StreamType.AdobePDFA, saveSettings);

The ZUGFeRD XML

The XML document that is embedded in the PDF is listed below:

<?xml version="1.0" encoding="utf-8"?>
<rsm:CrossIndustryInvoice xmlns:a="urn:un:unece:uncefact:data:standard:QualifiedDataType:100" xmlns:rsm="urn:un:unece:uncefact:data:standard:CrossIndustryInvoice:100" xmlns:qdt="urn:un:unece:uncefact:data:standard:QualifiedDataType:10" xmlns:ram="urn:un:unece:uncefact:data:standard:ReusableAggregateBusinessInformationEntity:100" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:udt="urn:un:unece:uncefact:data:standard:UnqualifiedDataType:100">
  <rsm:ExchangedDocumentContext>
    <ram:GuidelineSpecifiedDocumentContextParameter>
      <ram:ID>urn:cen.eu:en16931:2017#compliant#urn:zugferd.de:2p0:comfort</ram:ID>
    </ram:GuidelineSpecifiedDocumentContextParameter>
  </rsm:ExchangedDocumentContext>
  <rsm:ExchangedDocument>
    <ram:ID>A12345</ram:ID>
    <ram:TypeCode>380</ram:TypeCode>
    <ram:IssueDateTime>
      <udt:DateTimeString format="102">20210203</udt:DateTimeString>
    </ram:IssueDateTime>
  </rsm:ExchangedDocument>
  <rsm:SupplyChainTradeTransaction>
    <ram:IncludedSupplyChainTradeLineItem>
      <ram:AssociatedDocumentLineDocument>
        <ram:LineID>1</ram:LineID>
      </ram:AssociatedDocumentLineDocument>
      <ram:SpecifiedTradeProduct>
        <ram:Name>Product A</ram:Name>
      </ram:SpecifiedTradeProduct>
      <ram:SpecifiedLineTradeAgreement>
        <ram:NetPriceProductTradePrice>
          <ram:ChargeAmount>200</ram:ChargeAmount>
        </ram:NetPriceProductTradePrice>
      </ram:SpecifiedLineTradeAgreement>
      <ram:SpecifiedLineTradeDelivery>
        <ram:BilledQuantity unitCode="C62">5</ram:BilledQuantity>
      </ram:SpecifiedLineTradeDelivery>
      <ram:SpecifiedLineTradeSettlement>
        <ram:ApplicableTradeTax>
          <ram:TypeCode>VAT</ram:TypeCode>
          <ram:CategoryCode>S</ram:CategoryCode>
          <ram:RateApplicablePercent>19</ram:RateApplicablePercent>
        </ram:ApplicableTradeTax>
        <ram:SpecifiedTradeSettlementLineMonetarySummation>
          <ram:LineTotalAmount>1000.00</ram:LineTotalAmount>
        </ram:SpecifiedTradeSettlementLineMonetarySummation>
      </ram:SpecifiedLineTradeSettlement>
    </ram:IncludedSupplyChainTradeLineItem>
    <ram:ApplicableHeaderTradeAgreement>
      <ram:SellerTradeParty>
        <ram:Name>Text Control, LLC</ram:Name>
        <ram:PostalTradeAddress>
          <ram:PostcodeCode>28210</ram:PostcodeCode>
          <ram:LineOne>Jack Jackson</ram:LineOne>
          <ram:LineTwo>6926 Shannon Willow Rd, Suite 400</ram:LineTwo>
          <ram:CityName>Charlotte, NC</ram:CityName>
          <ram:CountryID>US</ram:CountryID>
        </ram:PostalTradeAddress>
        <ram:SpecifiedTaxRegistration>
          <ram:ID schemeID="VA">US12367623</ram:ID>
        </ram:SpecifiedTaxRegistration>
      </ram:SellerTradeParty>
      <ram:BuyerTradeParty>
        <ram:Name>Text Control GmbH</ram:Name>
        <ram:PostalTradeAddress>
          <ram:PostcodeCode>28217</ram:PostcodeCode>
          <ram:LineOne>Peter Paulsen</ram:LineOne>
          <ram:LineTwo>Überseetor 18</ram:LineTwo>
          <ram:CityName>Bremen</ram:CityName>
          <ram:CountryID>DE</ram:CountryID>
        </ram:PostalTradeAddress>
      </ram:BuyerTradeParty>
    </ram:ApplicableHeaderTradeAgreement>
    <ram:ApplicableHeaderTradeDelivery>
      <ram:ActualDeliverySupplyChainEvent>
        <ram:OccurrenceDateTime>
          <udt:DateTimeString format="102">20210203</udt:DateTimeString>
        </ram:OccurrenceDateTime>
      </ram:ActualDeliverySupplyChainEvent>
    </ram:ApplicableHeaderTradeDelivery>
    <ram:ApplicableHeaderTradeSettlement>
      <ram:InvoiceCurrencyCode>USD</ram:InvoiceCurrencyCode>
      <ram:ApplicableTradeTax>
        <ram:CalculatedAmount>190.00</ram:CalculatedAmount>
        <ram:TypeCode>VAT</ram:TypeCode>
        <ram:BasisAmount>1000.00</ram:BasisAmount>
        <ram:CategoryCode>S</ram:CategoryCode>
        <ram:RateApplicablePercent>19</ram:RateApplicablePercent>
      </ram:ApplicableTradeTax>
      <ram:SpecifiedTradePaymentTerms>
        <ram:DueDateDateTime>
          <udt:DateTimeString format="102">20210305</udt:DateTimeString>
        </ram:DueDateDateTime>
      </ram:SpecifiedTradePaymentTerms>
      <ram:SpecifiedTradeSettlementHeaderMonetarySummation>
        <ram:LineTotalAmount>1000.00</ram:LineTotalAmount>
        <ram:ChargeTotalAmount>0.00</ram:ChargeTotalAmount>
        <ram:AllowanceTotalAmount>0.00</ram:AllowanceTotalAmount>
        <ram:TaxBasisTotalAmount>1000.00</ram:TaxBasisTotalAmount>
        <ram:TaxTotalAmount currencyID="USD">190.00</ram:TaxTotalAmount>
        <ram:GrandTotalAmount>1190.00</ram:GrandTotalAmount>
        <ram:DuePayableAmount>1190.00</ram:DuePayableAmount>
      </ram:SpecifiedTradeSettlementHeaderMonetarySummation>
    </ram:ApplicableHeaderTradeSettlement>
  </rsm:SupplyChainTradeTransaction>
</rsm:CrossIndustryInvoice>

In Acrobat Reader

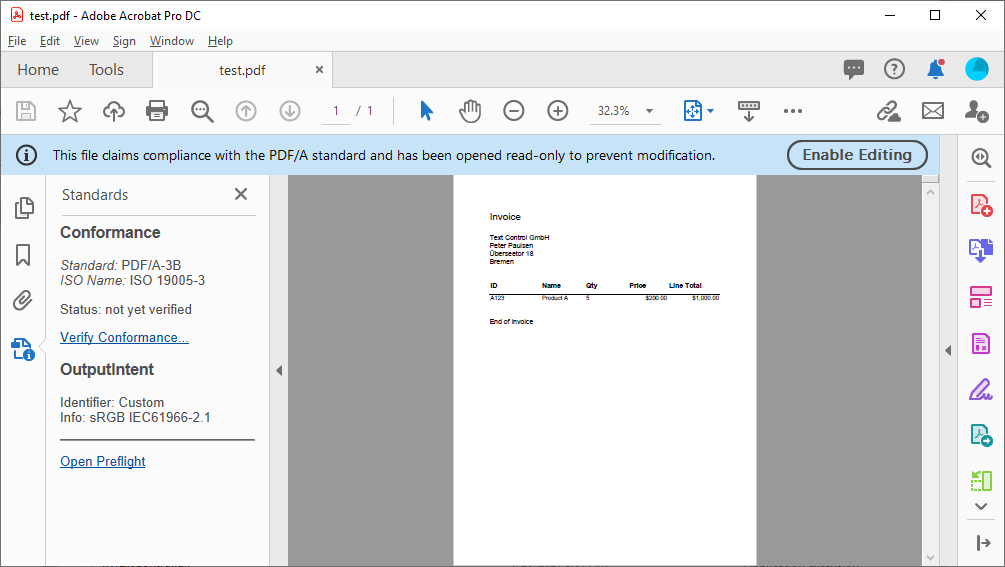

When the resulting PDF document is opened in Acrobat Reader, you can check the PDF/A-3b conformance using the Standards tab:

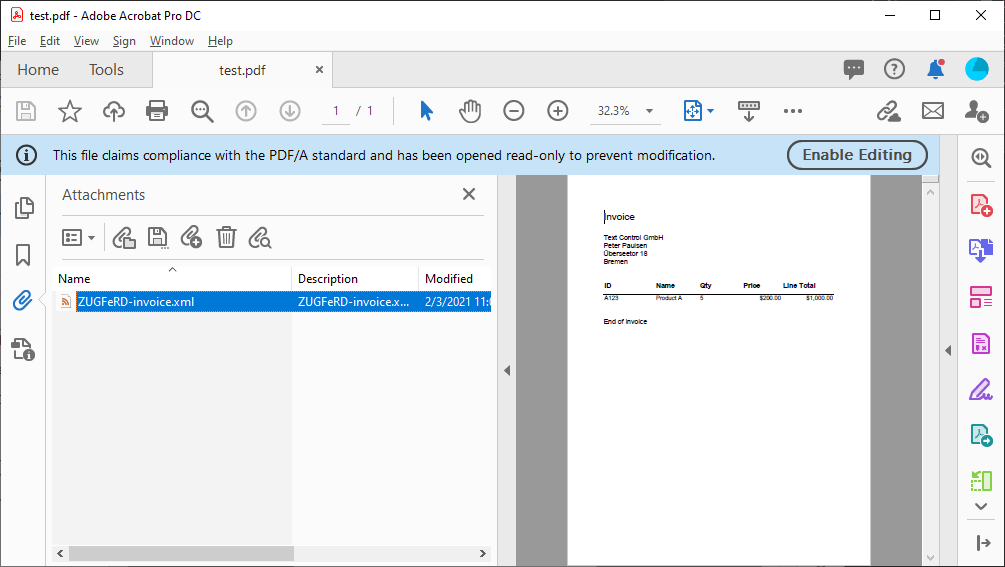

Additionally, you can verify the attachments:

Validating the Conformance

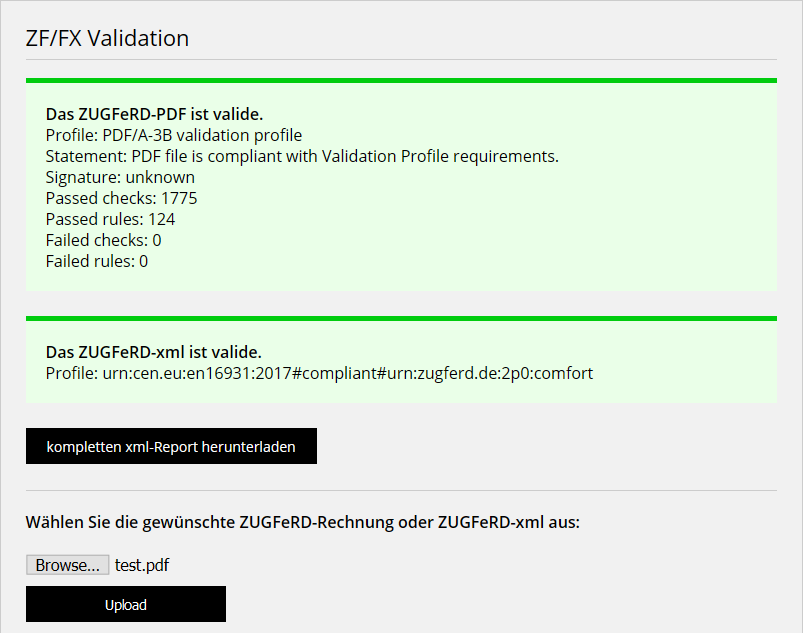

After validating the ZUGFeRD document using validation services such as the ZF/FX Validation (https://www.zugferd-community.net/de/dashboard/validation), you can see that the created document passes all tests:

You can download the sample project from our GitHub repository that contains the ZUGFeRD helper classes to create a valid XML document from scratch.
