This tutorial shows how to use TX Text Control ActiveX within Embarcadero C++ Builder XE7.

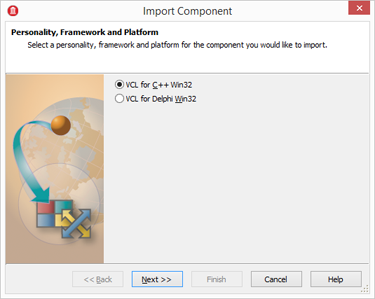

  1. Start RAD Studio XE7 and choose Import Component from the Component main menu. In the opened dialog box, select VCL for C++ Win32 and confirm with Next >>.

    Using TX Text Control with C++ Builder XE7

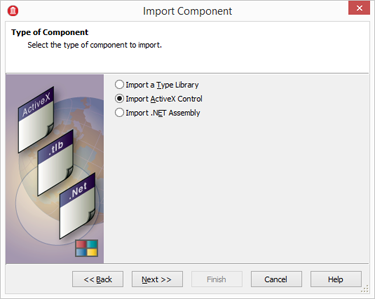

  2. In the next step, choose Import ActiveX Control and confirm with Next >>.

    Using TX Text Control with C++ Builder XE7

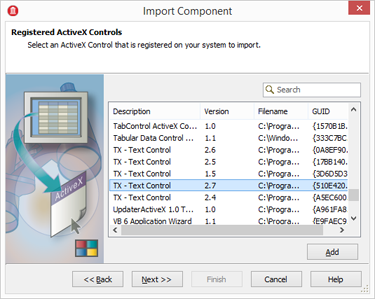

  3. Select your desired version of TX Text Control and confirm with Next >>.

    Using TX Text Control with C++ Builder XE7

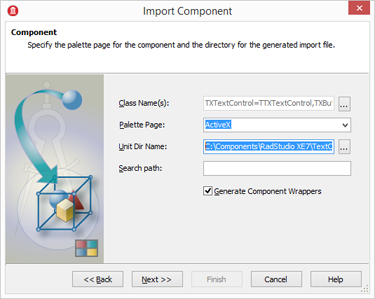

  4. Choose ActiveX as the Palette Page and choose a Unit Dir Name such as:

    C:\Components\RadStudio XE7\TextControl\

    Make sure that Generate Component Wrappers is checked and confirm with Next >>.

    Using TX Text Control with C++ Builder XE7

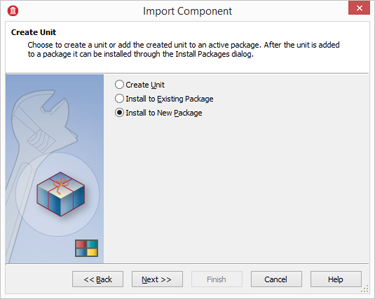

  5. Select Install to New Package and confirm with Next >>.

    Using TX Text Control with C++ Builder XE7

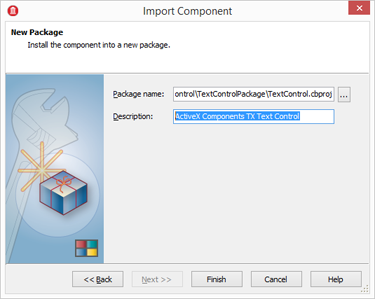

  6. Type in a Package name:

    C:\Components\RadStudio XE7\TextControl\TextControlPackage\
            TextControl.cbproj

    And a Description:

    ActiveX Components TX Text Control

    Click on Finish.

    Using TX Text Control with C++ Builder XE7

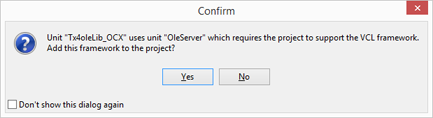

  7. Confirm the question about a missing framework with Yes.

    Using TX Text Control with C++ Builder XE7
  8. In the opened dialog, save TextControlPCH1.h to TX Text Control package folder.

  9. Select Clean TextControl and Build TextControl from the Project main menu.

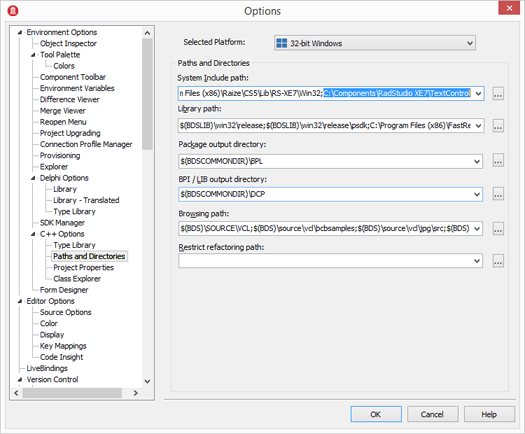

  10. Close all projects and choose Options from the Tools main menu.

  11. Add the path of the TX Text Control package to the System Include Path separated with a semicolon.

    Using TX Text Control with C++ Builder XE7
  12. Open the saved project TextControl.cbproj and build it by choosing Build TextControl from the Project main menu.

  13. Right-click TextControl.bpl and select Install to install the imported components to the Tool Palette.

If you create a new VCL Forms Application - C++ Builder project now, you will find the imported TX Text Control controls in the Tool Palette in the ActiveX palette page:

Using TX Text Control with C++ Builder XE7
