Manual document creation and processing is a high-effort process and error-prone. Information is manually typed into documents, older versions are reused (copy and change of existing documents) or documents are created from scratch each time a new document is required.

Contract Lifecycle Challenges

Specifically for business critical documents such as contracts and agreements, manual processes can be dangerous in many ways.

The following table lists typical challenges with agreement processes:

Preparation Collaboration Signing Managing
Errors due to manually entered data into contracts. Usage of different "red-lining" tools and versions (MS Word). No central portal to see status of the signing process. Errors due to manually entered data into contracts.
Delays due to long preparation process. No central control over tracked changes. Delays due to missing information. No central contract repository or search.
No data binding to CRM and ERP systems. Poor user experience. Delays due to wrong routing. Security and data privacy

For this sample, we take a look at the Preparation column and specifically the first reason:

Errors due to manually entered data into contracts.

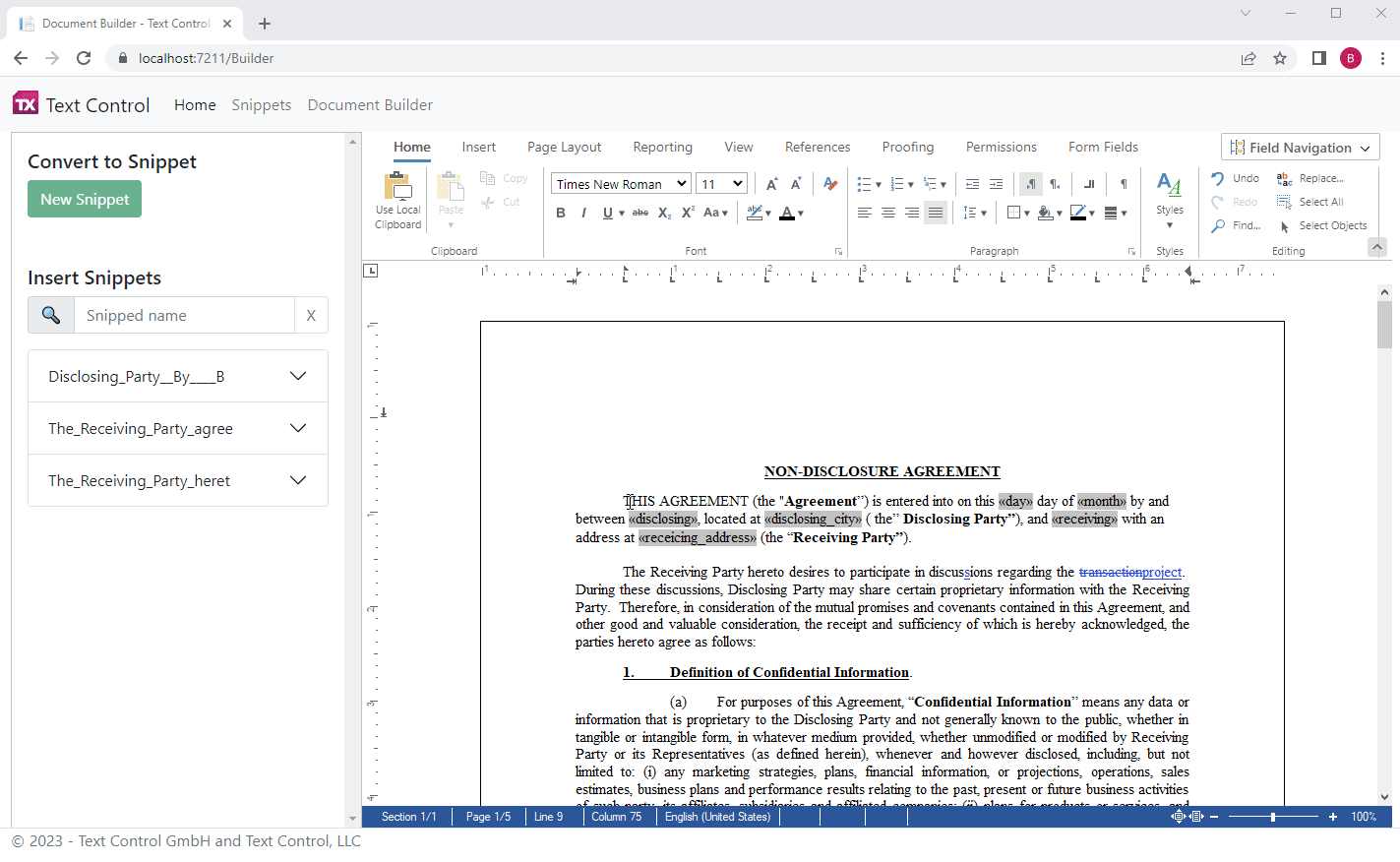

To avoid this, reusable text snippets should be used and maintained at a central location. The following screenshot shows the sample that allows users to insert formatted snippets.

Text Snippets in TX Text Control

Creating Snippets

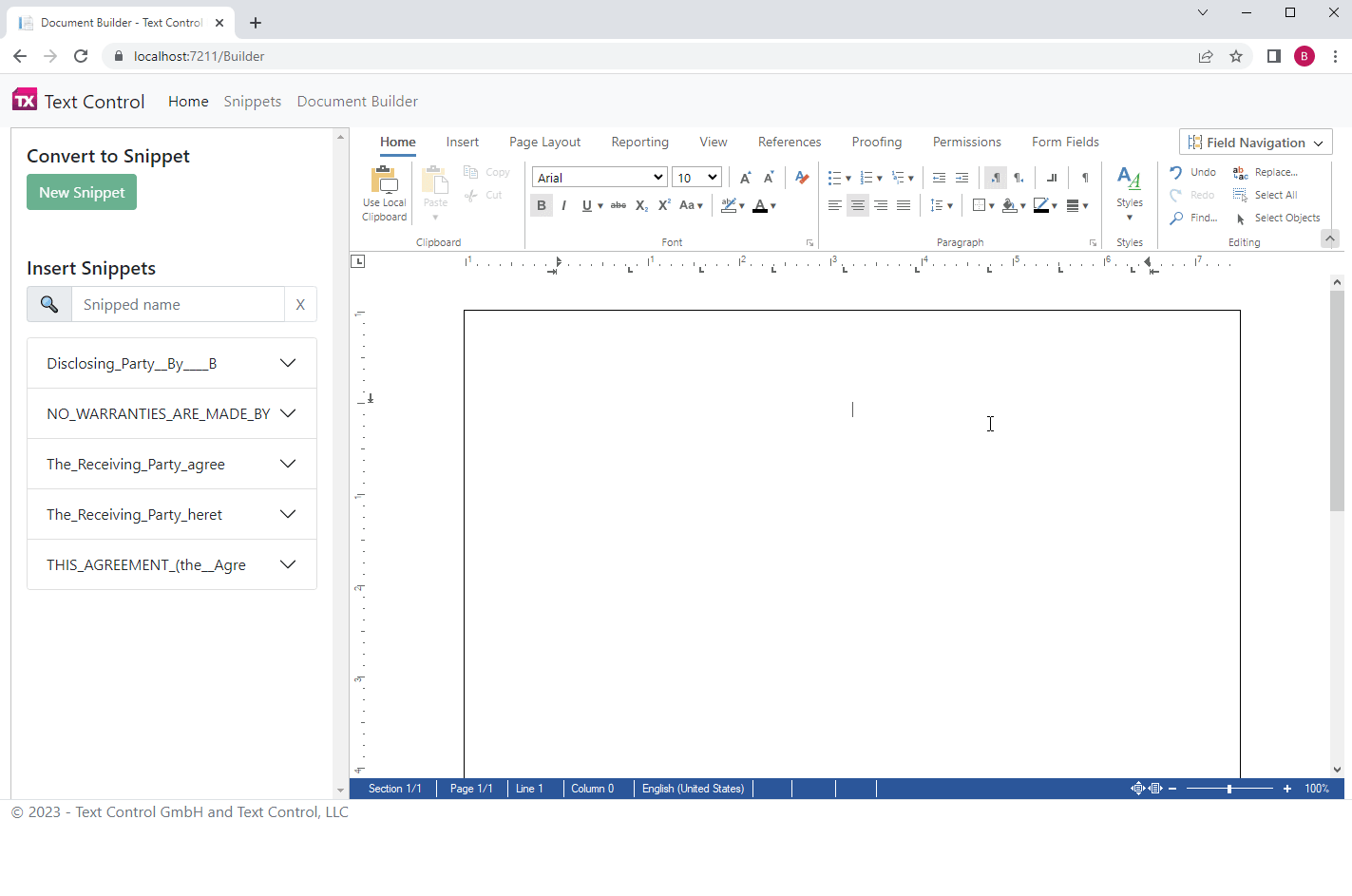

The interface allows users to create new snippets by selecting any text in the document and clicking New Snippet.

Text Snippets in TX Text Control

All elements are saved within the snippet including formatted text, merge and form fields, tables and other document elements. Technically, the snippet is saved using the Selection.save ╰ TX Text Control .NET Server for ASP.NET
╰ JavaScript API
╰ Selection Object
╰ save Method
Saves the current selection in a certain format and sends the result back asynchronously by calling a given callback function. method and is stored server-side along with an HTML preview generated by TX Text Control.

[HttpPost]
public bool Create(string document, string name) {
var snippetName = _applicationSettings.SnippetDirectory +
"/" + Path.GetInvalidFileNameChars().Aggregate(name, (f, c) => f.Replace(c, '_').Replace(' ', '_'));
using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) {
tx.Create();
// load the snippet
tx.Load(Convert.FromBase64String(document), TXTextControl.BinaryStreamType.InternalUnicodeFormat);
// select 200 chars as a preview
tx.Select(0, 200);
// save the body of the snippet
TXTextControl.SaveSettings saveSettings = new TXTextControl.SaveSettings() {
CssSaveMode = TXTextControl.CssSaveMode.Inline
};
tx.Selection.Save(out string htmlString, TXTextControl.StringStreamType.HTMLFormat, saveSettings);
TextReader reader = new StringReader(htmlString);
HtmlDocument doc = new HtmlDocument();
doc.Load(reader);
HtmlNode bodyNode = doc.DocumentNode.SelectSingleNode("/html/body");
System.IO.File.WriteAllText(snippetName + ".htm", bodyNode.InnerHtml);
}
// store the actual snippet in the Text Control format
System.IO.File.WriteAllBytes(snippetName + ".tx", Convert.FromBase64String(document));
return true;
}
view raw test.cs hosted with ❤ by GitHub

Loading Snippets

In case a snippet is inserted into the document, the Selection.load ╰ TX Text Control .NET Server for ASP.NET
╰ JavaScript API
╰ Selection Object
╰ load Method
Loads text in a certain format into the current selection. method is used to load the document asynchronously.

function getSnippet(snippetName, snippetFormat) {
var serviceURL = "@Url.Action("Content", "Snippets")";
console.log(snippetName);
$.ajax({
type: "POST",
url: serviceURL,
data: {
name: snippetName,
format: snippetFormat
},
success: successFunc,
error: errorFunc
});
function successFunc(data, status) {
if (snippetFormat == "HTM")
document.querySelector('[tx-snippet-name="' + snippetName + '"] .snippet-preview').innerHTML = data + "...";
else
TXTextControl.selection.load(TXTextControl.StreamType.InternalUnicodeFormat, data);
}
function errorFunc() {
$("#myToast .toast-body").text("Error! :-(");
$("#myToast").toast("show");
}
}
view raw test.js hosted with ❤ by GitHub

Managing Snippets

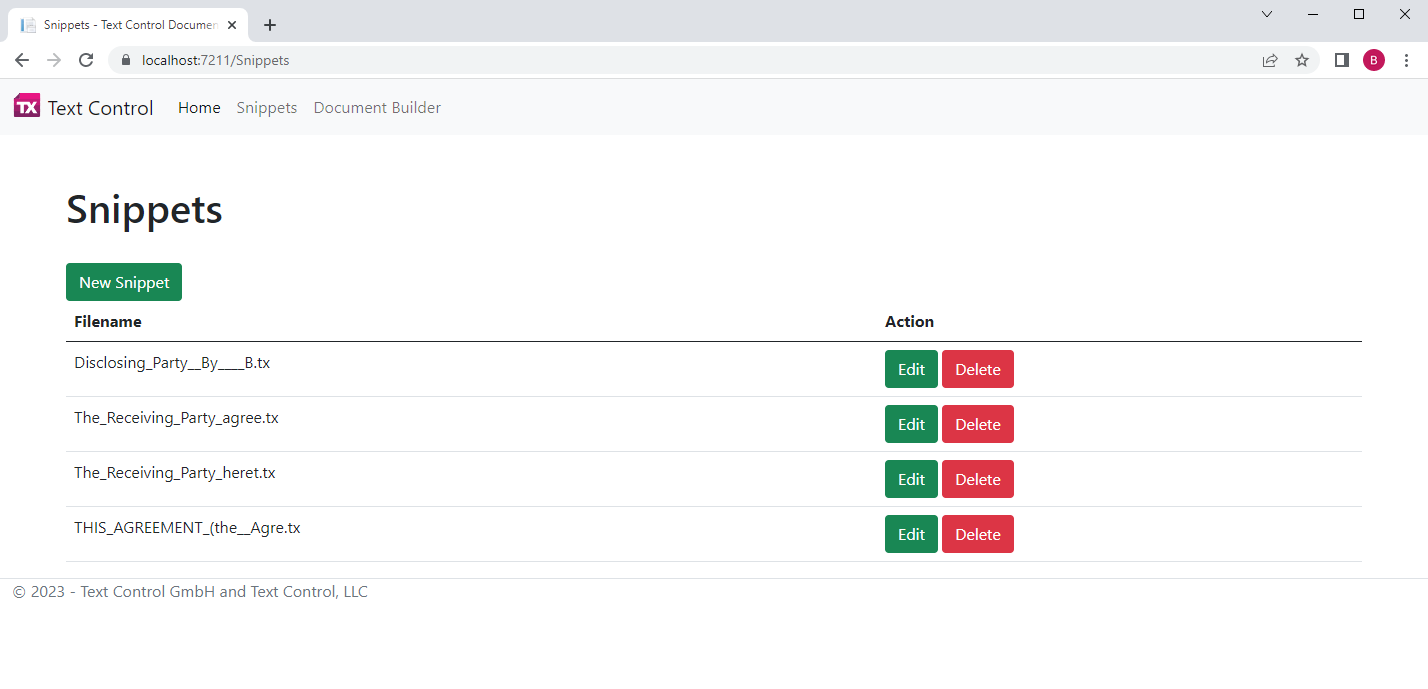

The sample also implements an overview page that lists all created snippets.

Text Snippets in TX Text Control

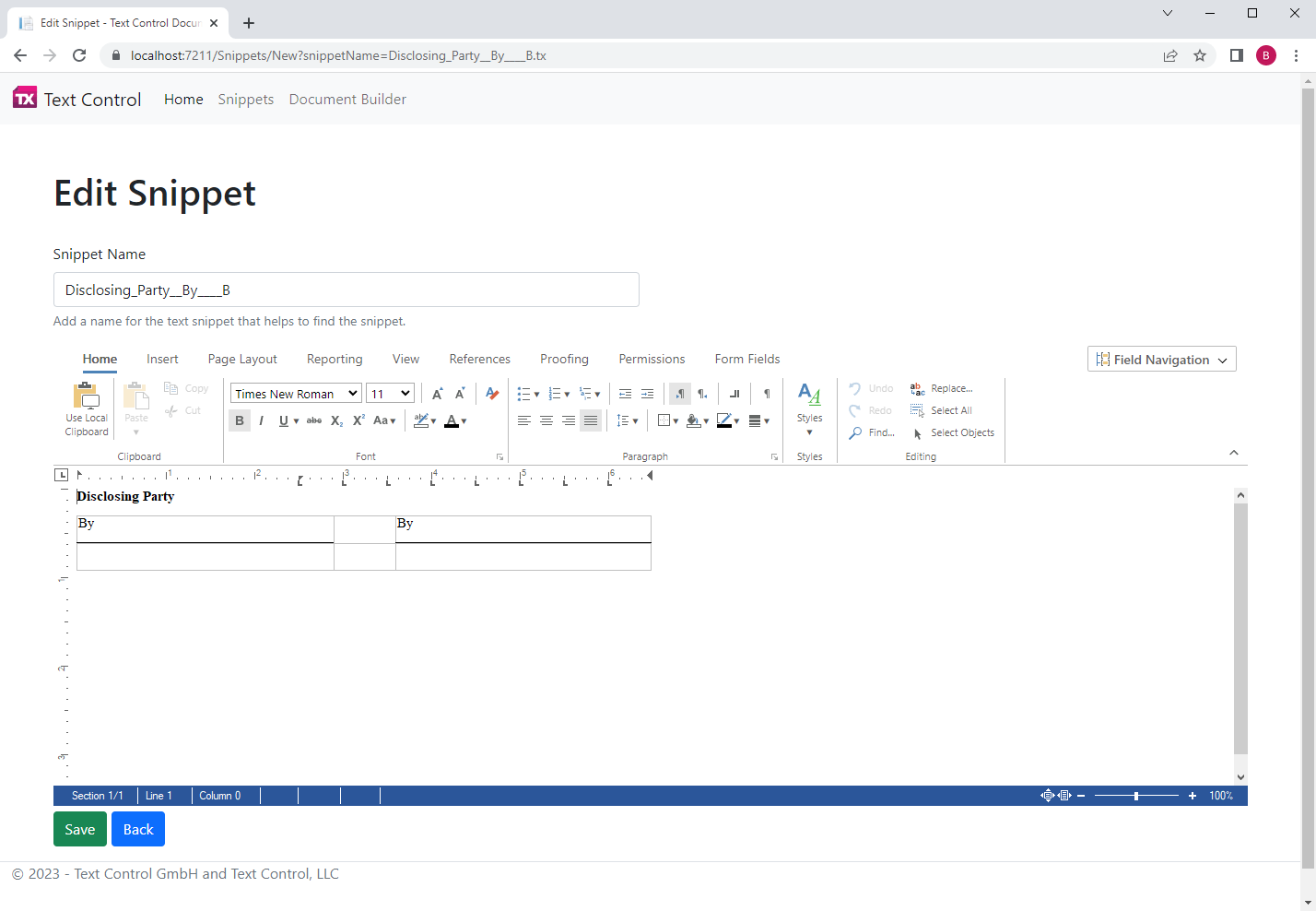

This section allows you to edit and delete existing snippets and to create new snippets from scratch.

Text Snippets in TX Text Control

Test this on your own and fork our sample project on GitHub.
