Understanding TableCell Width, Borders and Text Distances
A TableCell object has a border, a text distance and a total width. These values are interacting and I thought to shed some light on this interaction. The different properties in detail: TableCell.Width This property gets or sets, in twips, the width of the cell. TableCell.CellFormat.BottomTextDistance Gets or sets, in twips, the distance between the table cell's bottom border and its text. TableCell.CellFormat.TopTextDistance Gets or sets, in twips, the distance between the table cell's top…
A TableCell object has a border, a text distance and a total width. These values are interacting and I thought to shed some light on this interaction.
The different properties in detail:
- TableCell.Width
This property gets or sets, in twips, the width of the cell. - TableCell.CellFormat.BottomTextDistance
Gets or sets, in twips, the distance between the table cell's bottom border and its text. - TableCell.CellFormat.TopTextDistance
Gets or sets, in twips, the distance between the table cell's top border and its text. - TableCell.CellFormat.LeftTextDistance
Gets or sets, in twips, the distance between the table cell's left border and its text. - TableCell.CellFormat.RightTextDistance
Gets or sets, in twips, the distance between the table cell's right border and its text. - TableCell.CellFormat.BottomBorderWidth
Gets or sets the width of the table cell's bottom border. - TableCell.CellFormat.TopBorderWidth
Gets or sets the width of the table cell's top border. - TableCell.CellFormat.LeftBorderWidth
Gets or sets the width of the table cell's left border. - TableCell.CellFormat.RightBorderWidth
Gets or sets the width of the table cell's right border.
The TableCell.Width property is completely independent from all other settings. In other words, the width of a TableCell stays constant even if you change the border width or the distance from the text to the border.

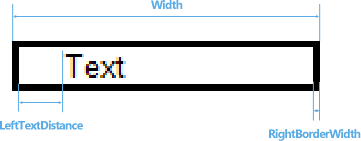

The following illustration shows the different values of a TableCell:
As you can see, the text distance is measured from the inner border to the text and the width is measured from the left outer border to the right outer border.
