In order to add watermarks to documents, images are inserted into a page headers of each section. The content of headers (and footers) are repeated on each page automatically. Frame
╰ TXTextControl Namespace
╰ FrameBase Class
The FrameBase class is the base class of the Image, TextFrame, ChartFrame, BarcodeFrame and DrawingFrame classes. objects including images can be inserted into a header by overlapping the main text.
Scalable SVG Images
Since version 30.0, TX Text Control supports the insertion of SVG images which is the preferred image format for watermarks. The advantage of using SVG images is that they, as the name "Scalable Vector Graphics" implies, are scalable. One SVG image can be used for all required sizes in any document.
Positioned Behind Text
Additionally, objects can be positioned behind the actual text, so that the text is still visible and the watermark can be seen virtually in the background of a document. To achieve this, the following implementation of the Images.
╰ TXTextControl Namespace
╰ ImageCollection Class
╰ Add Method
Inserts a new image in a Text Control document. method must be used:
public bool Add(Image image, | |
int pageNumber, | |
System.Drawing.Point location, | |
ImageInsertionMode insertionMode); |
The required enumeration combination for the InsertionMode is FixedOnPage and BelowTheText:
hf.Images.Add(image, | |
1, | |
new System.Drawing.Point(0, 0), | |
TXTextControl.ImageInsertionMode.FixedOnPage | | |
TXTextControl.ImageInsertionMode.BelowTheText); |
Center the Image
Finally, the image must be centered vertically and horizontally on each page of each section in case there are different page sizes and orientations. The following formula is used to calculate the location of the background images:
([Page width] - [image width] - [both page margins]) / 2

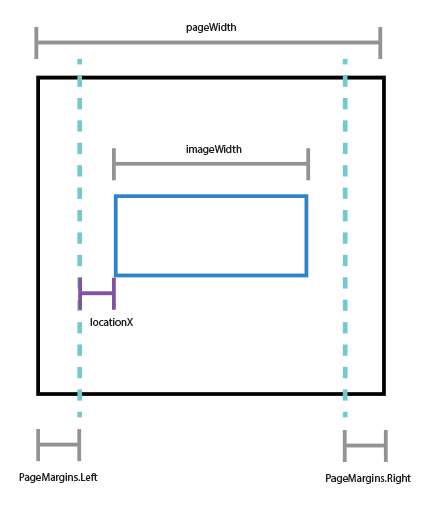

The following diagram shows the various values that must be considered into the calculation of the exact horizontal location:
The following method AddWatermark creates headers for each section in order to insert a watermark centered on each page of the document:
public void AddWatermark(TXTextControl.ServerTextControl tx, string imagePath) | |
{ | |
foreach (TXTextControl.Section section in tx.Sections) | |
{ | |
// remove existing headers for demo purposes | |
section.HeadersAndFooters.Remove(TXTextControl.HeaderFooterType.All); | |
// add new header for each section | |
section.HeadersAndFooters.Add(TXTextControl.HeaderFooterType.Header); | |
TXTextControl.HeaderFooter hf = | |
(section.HeadersAndFooters.GetItem(TXTextControl.HeaderFooterType.Header)); | |
// add the watermark | |
TXTextControl.Image image = new TXTextControl.Image(); | |
image.FileName = imagePath; | |
hf.Images.Add( | |
image, | |
1, | |
new System.Drawing.Point(0, 0), | |
TXTextControl.ImageInsertionMode.FixedOnPage | | |
TXTextControl.ImageInsertionMode.BelowTheText); | |
// calculate the horizontal center location | |
var pageWidth = (int)section.Format.PageSize.Width; | |
var pageMarginsHorizontal = (int)(section.Format.PageMargins.Left + | |
section.Format.PageMargins.Right); | |
var imageWidth = image.Size.Width; | |
int locationX = (pageWidth - imageWidth - pageMarginsHorizontal) / 2; | |
// calculate the vertical center location | |
var pageHeight = (int)section.Format.PageSize.Height; | |
var pageMarginsVertical = (int)(section.Format.PageMargins.Top + | |
section.Format.PageMargins.Bottom); | |
var imageHeight = image.Size.Height; | |
int locationY = (pageHeight - imageHeight - pageMarginsVertical) / 2; | |
// set the location | |
image.Location = new System.Drawing.Point(locationX, locationY); | |
} | |
} |
This method is called with an instance of a ServerTextControl (same code is compatible to Windows Forms and WPF) and a path to the image. In the following code, an HttpGet method is implemented to load any document to add a watermark to the document pages:
[HttpGet] | |
public IActionResult AddWatermark() | |
{ | |
byte[] bDocument; | |
// create a ServerTextControl | |
using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) { | |
tx.Create(); | |
tx.PageUnit = TXTextControl.MeasuringUnit.Twips; | |
// load the template | |
tx.Load("App_Data/nda.tx", TXTextControl.StreamType.InternalUnicodeFormat); | |
AddWatermark(tx, "App_Data/draft.svg"); | |
// save in the internal format | |
tx.Save(out bDocument, TXTextControl.BinaryStreamType.InternalUnicodeFormat); | |
} | |
return Ok(bDocument); | |
} |
