Sneak Peek X15: MS Word Compatible Document Protection and Editable Regions

Bjoern Meyer by Bjoern Meyer| November 16, 2017 | ASP.NET Reporting Windows Forms WPF MS Word Release

Summary

In version X15, admin users are able to protect a document and to add editable regions to a document. This article gives an overview of the new UI and functionality for this feature.

Using TX Text Control X15, documents can be protected by restricting the formatting and editing of content. When protecting a document, it is possible to define whether the document is completely locked or formatting can be applied.

Editable regions are exceptions within protected documents that can be defined through a start position and a length or through a selection. These regions can be nested and overlap. Each editable region is associated with a user through the UserName property. Only this user can edit the region, when the document has been set to read only.

The TX Text Control RibbonBar contains the new ribbon tab Permissions that provides the complete UI and workflow to add and modify document restrictions.

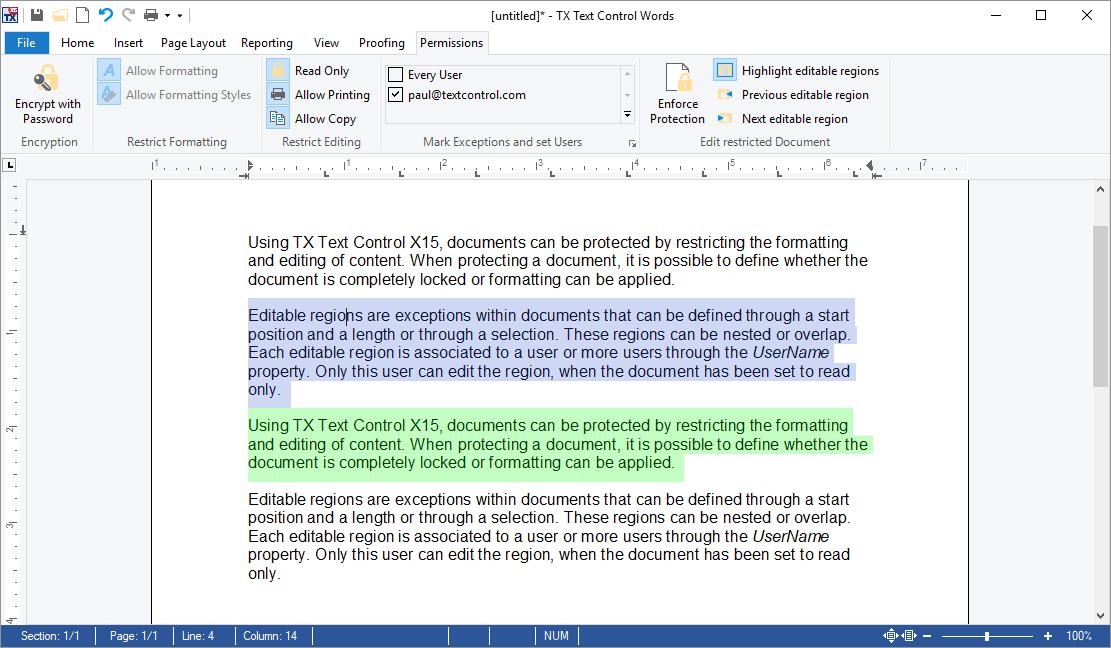

Editable Regions

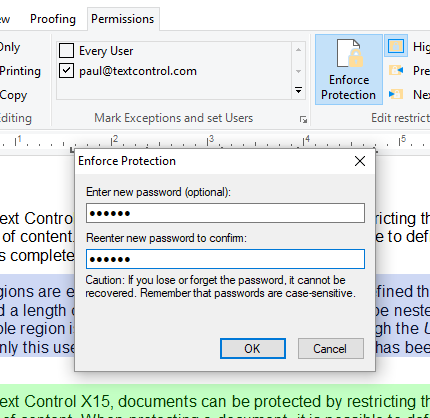

In order to add an exception, a user can be added or selected. After clicking Enforce Protection, a password can be specified to protect the document.

Editable Regions

Then, only the specified user has access to the associated editable regions. The Text Control can be created in a user mode by specifying UserNames that gets or sets a list of names specifying users who have access to editable regions. When a document is set to read-only, all editable regions, that are related to these users, can be edited.

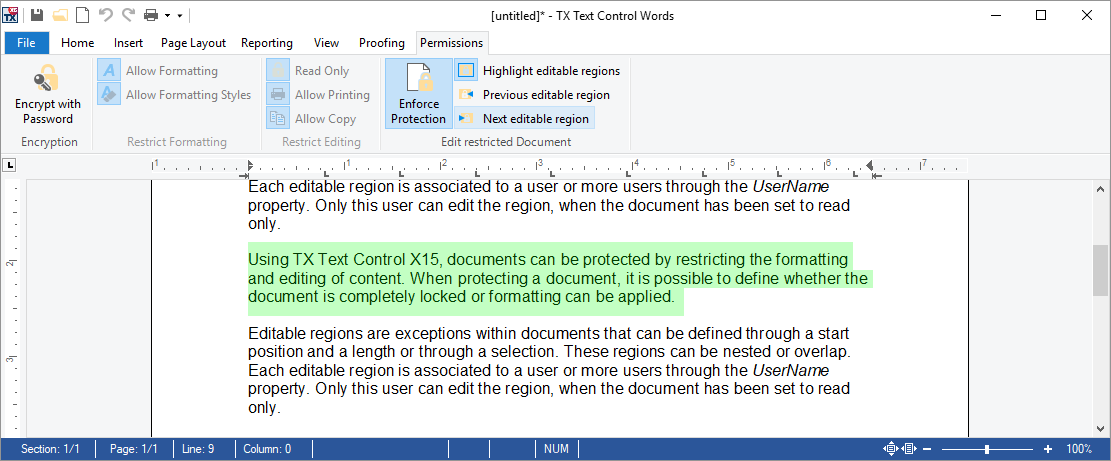

In protection mode, the user can easily navigate between associated editable regions using ribbon navigation buttons:

Editable Regions

Stay tuned for more!

Also See

This post references the following in the documentation:

  • TXTextControl.EditableRegion Class ╰ TX Text Control .NET for Windows Forms
    ╰ TXTextControl Namespace
    ╰ EditableRegion Class
    An EditableRegion object represents an editable region in a TX Text Control document.
  • TXTextControl.EditableRegion.UserName Property ╰ TX Text Control .NET for Windows Forms
    ╰ TXTextControl Namespace
    ╰ EditableRegion Class
    ╰ UserName Property
    Gets or sets the name of the user who can edit the region.
  • TXTextControl.TextControl.UserNames Property ╰ TX Text Control .NET for Windows Forms
    ╰ TXTextControl Namespace
    ╰ TextControl Class
    ╰ UserNames Property
    Gets or sets a list of names specifying users who have access to editable regions.
