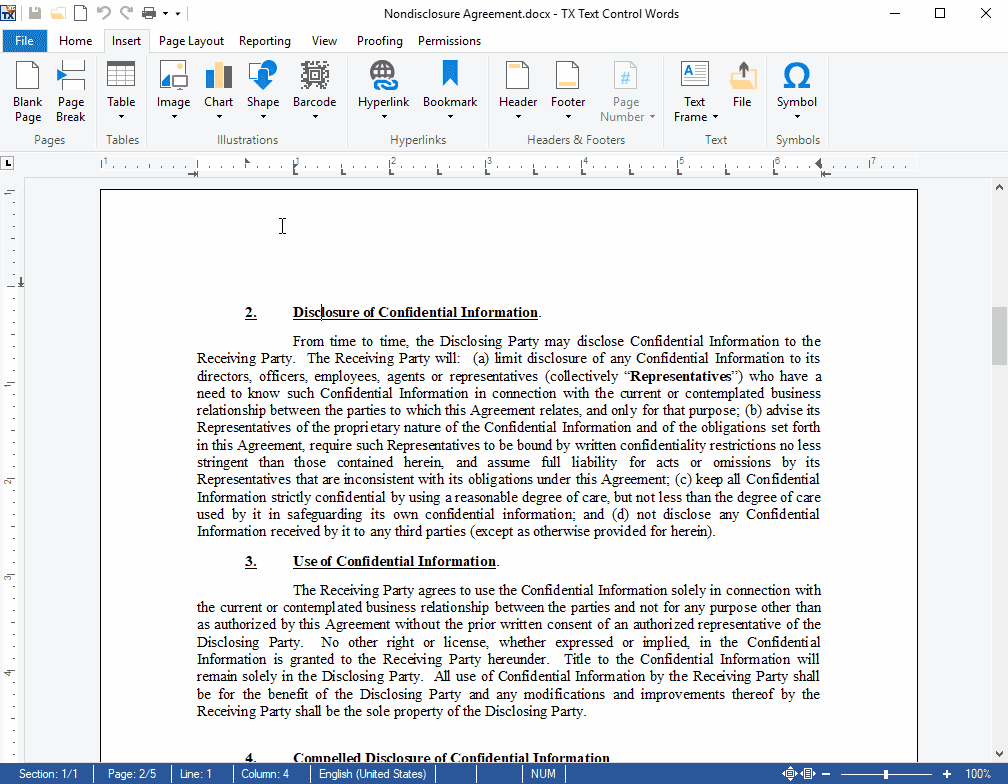

Watermarks in Headers and Footers

A highly requested feature was content in headers and footers that overlaps the main text. This is typically used in letterhead templates to place the address in a text box on the side of the main text. This content is repeated on each page and is therefore part of the header or footer text part.

Objects can be freely moved on the page and are placed behind the main text when headers and footers are deactivated. When a new page is inserted within the same section, the objects that belong to the header and footer are repeated on following pages as well.

Learn more

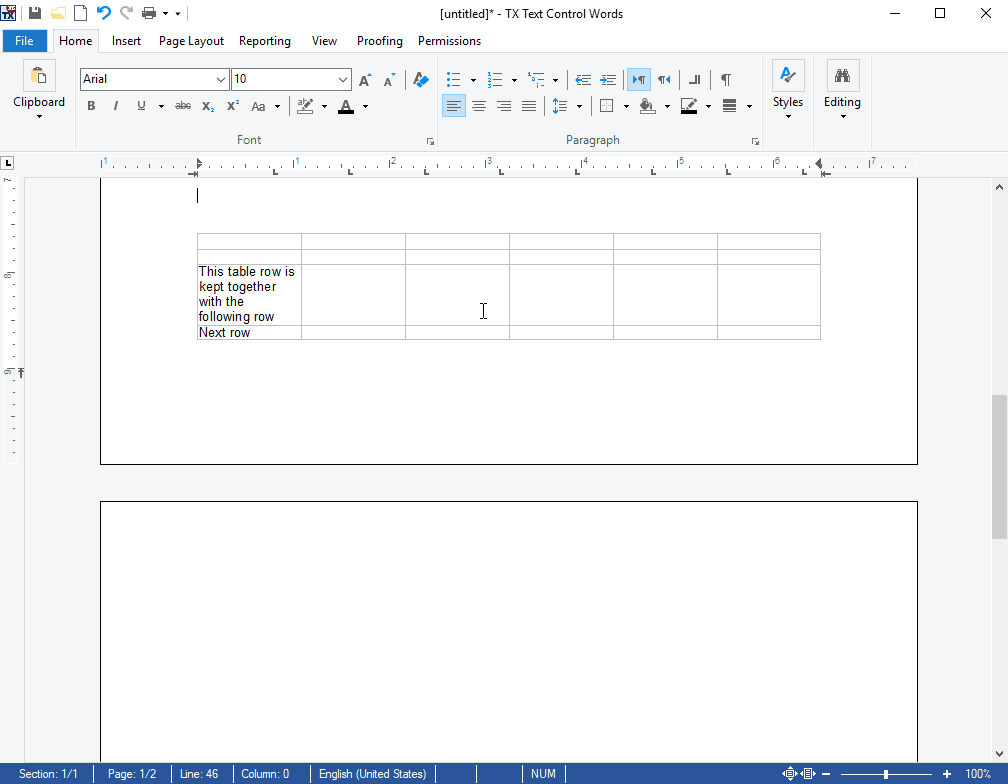

Pagination in Tables

The pagination settings keep with next and page break before can now be used in tables to control page breaks within a table. The first paragraph of a table row determines how to treat the complete row. If the first paragraph of a table row has the keep with next setting, the complete table row is positioned on the same page like the following table row.

Learn more

Inserting Client-Side Images

Using JavaScript API enhancements, client-side images can be added to documents. All supported image types can be added as Base64 encoded strings and inserted at character position, anchored to paragraphs or fixed on pages.

Additionally, TextFrames can be added programmatically as well using the same object positioning.

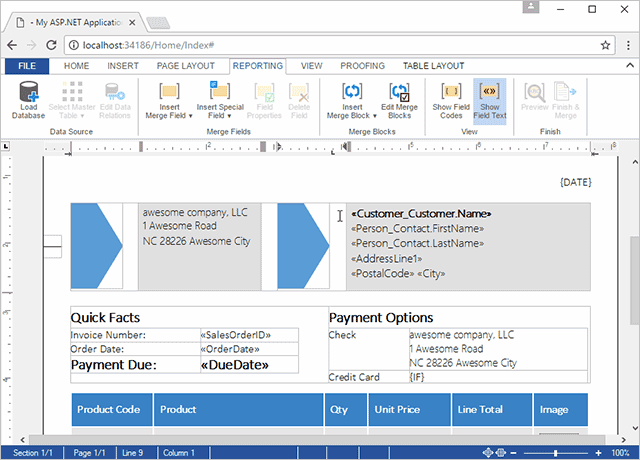

Custom Field Overlays

A highly requested feature for our HTML5-based Web.TextControl is the ability to show field overlays or custom elements such as HTML form elements on top of all types of fields. In version X15, fields provide it's location using the bounds property that can be used to render a custom overlay at this location.

This concept can be used for many different applications including the rendering of form elements on top of MS Word form fields and content control fields. All of these fields are accessible in version X15 using the new TXTextControl.getTextFields method that returns an ApplicationField object. This allows the development of MS Word compatible form completion applications based on Web.TextControl.

Learn more

JavaScript API Improvements

In version X15 of TX Text Control .NET Server for ASP.NET, it is possible to switch between the two different clipboards using a toggle button or the JavaScript API.

Additionally, TX Text Control .NET Server for ASP.NET provides a general interface to add, remove and modify all text field types including MS Word merge fields, form fields and TX Text Control text fields.

The JavaScript API allows manipulations of TXTextControl.SubTextPart objects. A SubTextPart object represents a user-defined part of a TX Text Control document.

Learn more

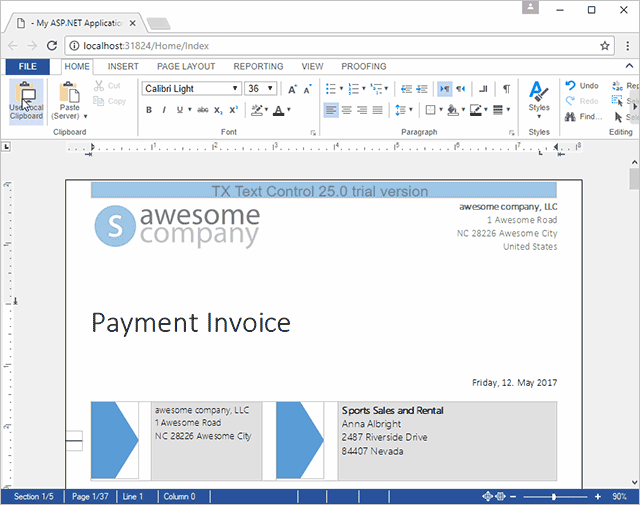

Copy to Local Clipboard Support

In version X15 of TX Text Control .NET Server for ASP.NET, it is possible to switch between the two different clipboards using a toggle button or the JavaScript API. In case, the local clipboard is activated, an HTML form element is simulated and content can be pasted into the control and copied from the control to the local clipboard.

Learn more

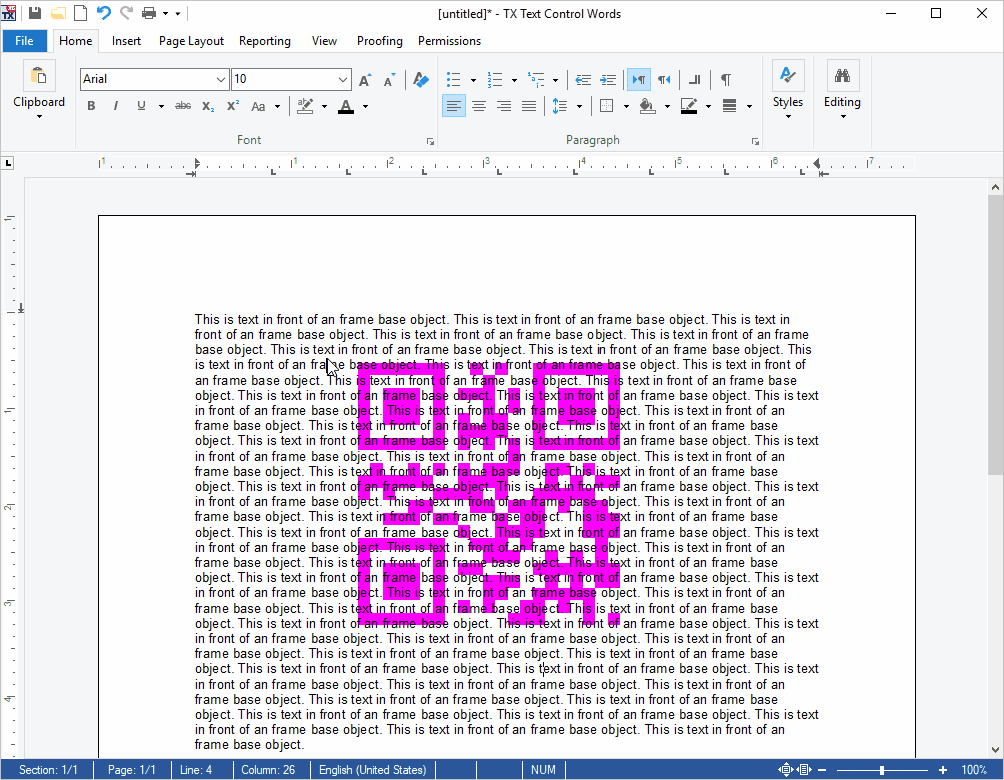

Select Objects Behind the Text

The new TXTextControl.SelectObjects property controls the selection of objects which are located behind the text. When this property is set to True, a mouse click selects the object in the background. Otherwise, when this property is set to False, text in front of the object is selected.
