The MailMerge engine is able to merge images in the same way like merge fields or form fields in a document template. Image placeholders are added at design-time and merged with data from files, databases or memory.

Image Placeholders

An image placeholder is basically an image that is added to a template with a given Name. The data column must contain either the binary image data as a byte array, an object of type System.Drawing.Image, a file name, a hex or Base64 encoded string. These options cover most typical image representations in databases. Merged images are scaled up or down to match the width of the placeholder image in the template.

Adding Placeholders with UI

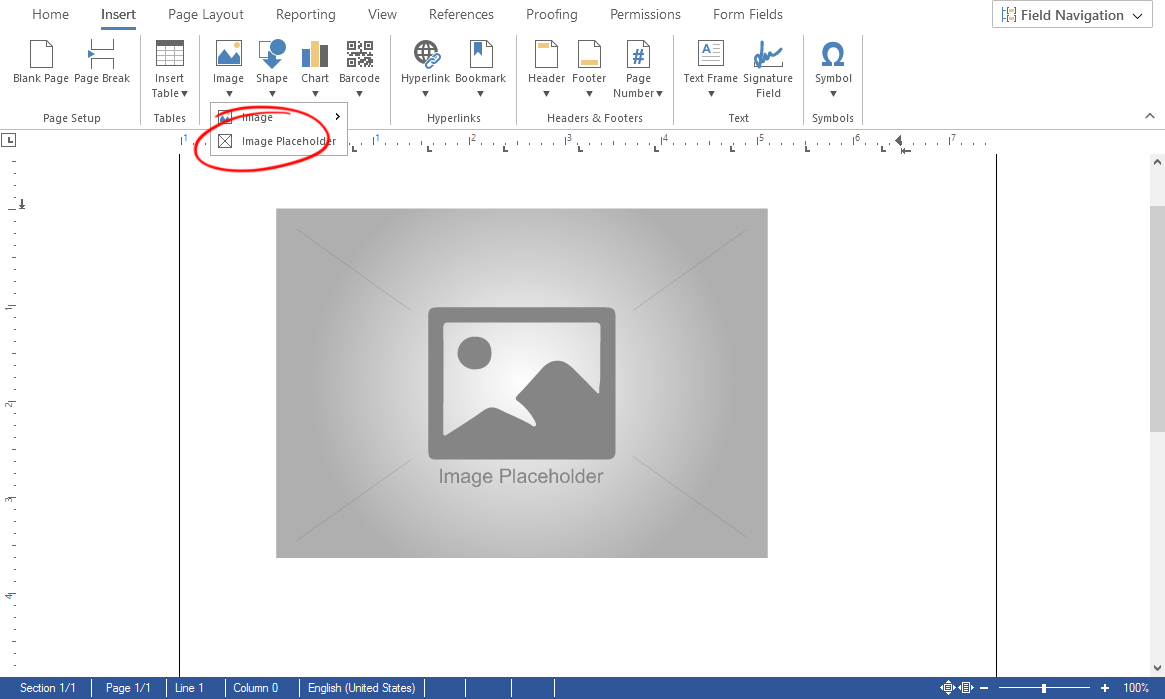

To insert an image placeholder, a pre-designed RibbonBar can be used:

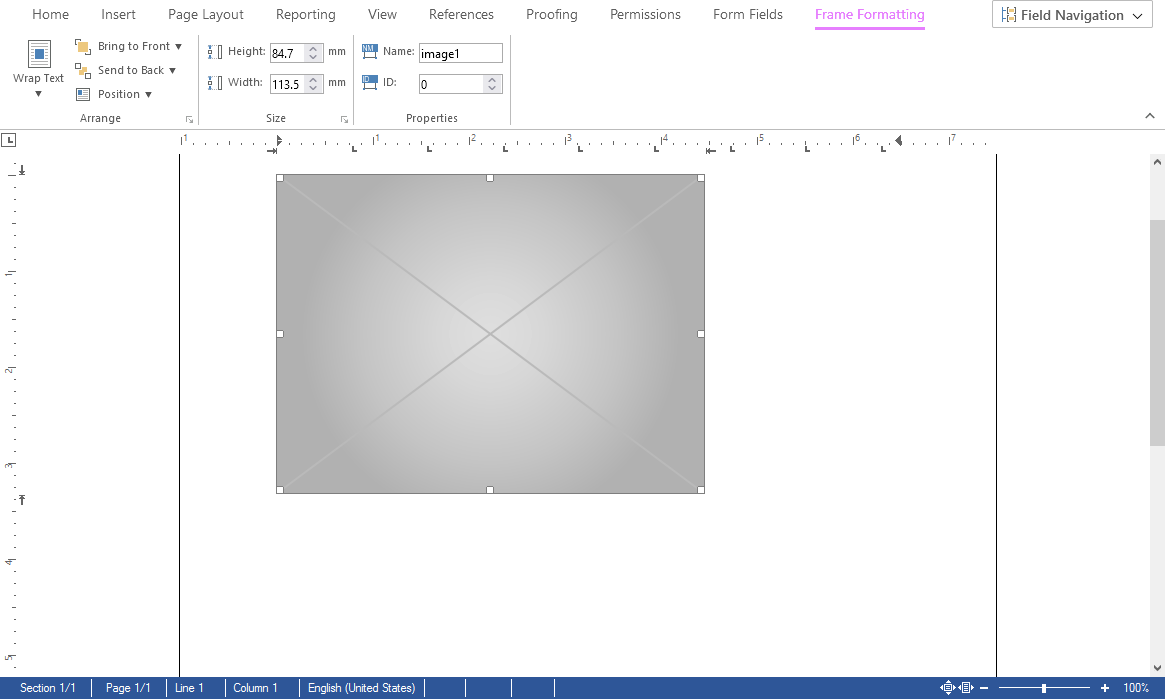

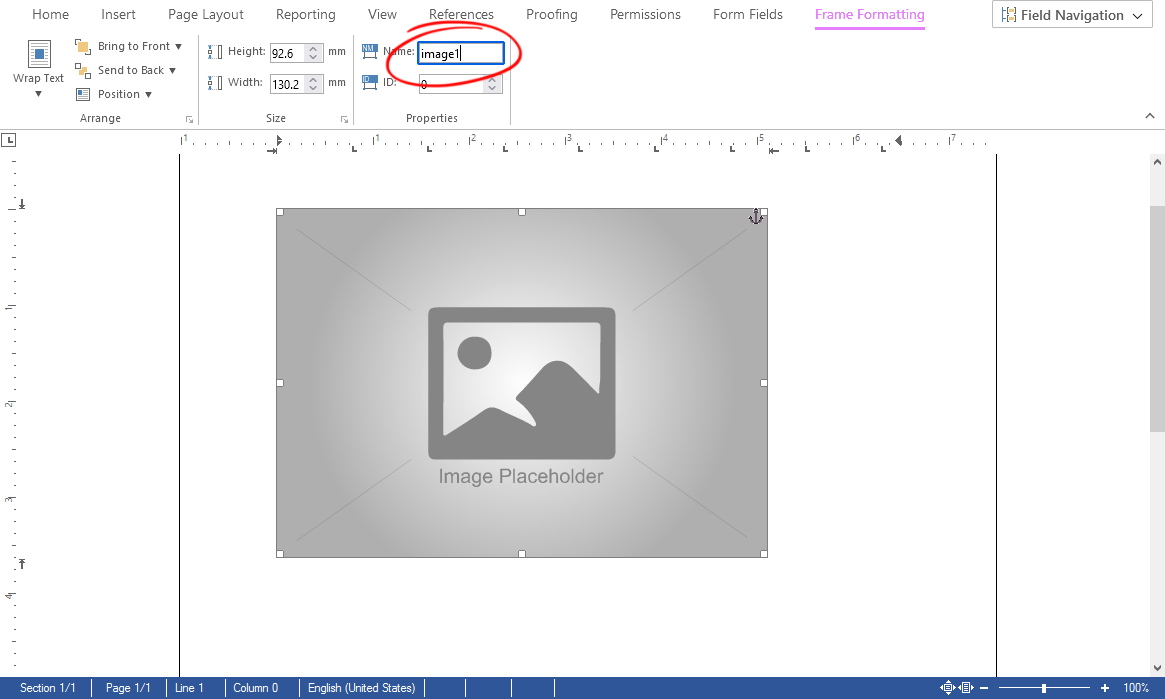

After the placeholder has been added, the name of the object can be defined in the Frame Formatting ribbon tab.

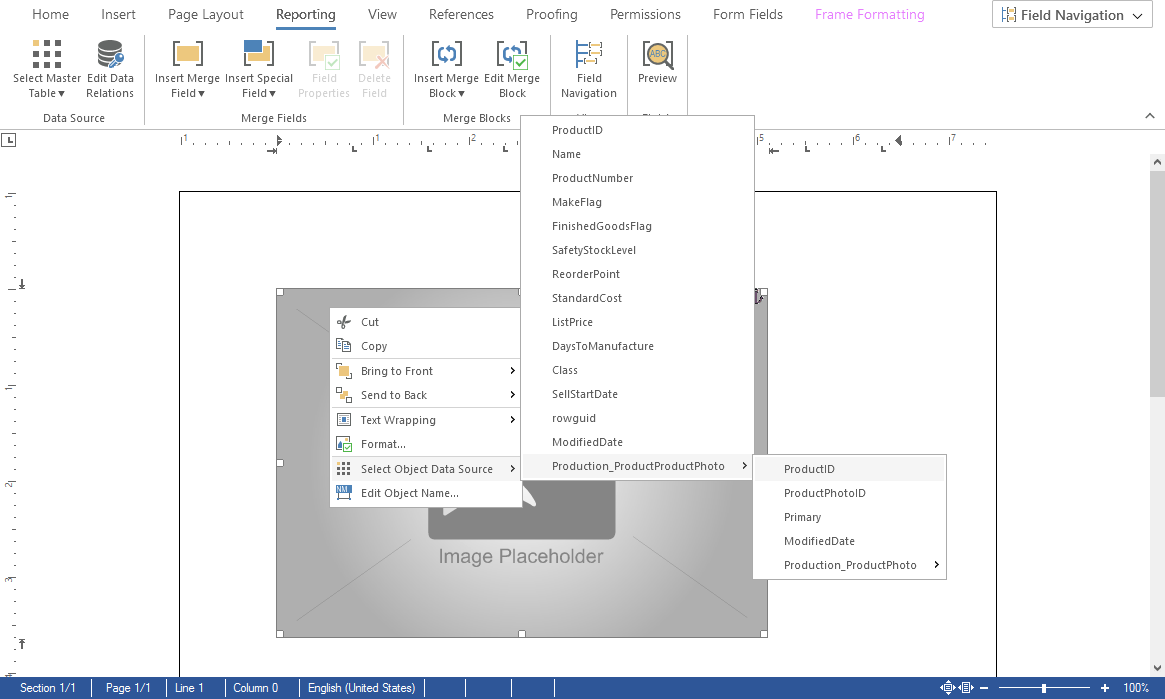

In case a data source is already loaded using the LoadDataFromJson method (MVC) or using the JavaScript method loadJsonData, the image name can be directly defined through the right-click context menu.

Adding Placeholders Programmatically

Image placeholders can be also inserted programmatically using the JavaScript API. A placeholder is nothing more than an image with a name that should match the data column in the used data source. The following code inserts an image placeholder at a character location with the name image1.

var imageData = "PD94bWwgdmVyc2lvbj0iMS4wIiBlbmNvZGluZz0idXRmLTgiPz4NCjwhLS0gR2VuZXJhdG9yOiBBZG9iZSBJbGx1c3RyYXRvciAyNy4xLjAsIFNWRyBFeHBvcnQgUGx1Zy1JbiAuIFNWRyBWZXJzaW9uOiA2LjAwIEJ1aWxkIDApICAtLT4NCjxzdmcgdmVyc2lvbj0iMS4xIiBpZD0iTGF5ZXJfMSIgeG1sbnM9Imh0dHA6Ly93d3cudzMub3JnLzIwMDAvc3ZnIiB4bWxuczp4bGluaz0iaHR0cDovL3d3dy53My5vcmcvMTk5OS94bGluayIgeD0iMHB4IiB5PSIwcHgiDQoJIHZpZXdCb3g9IjAgMCA0MjkgMzIwIiBzdHlsZT0iZW5hYmxlLWJhY2tncm91bmQ6bmV3IDAgMCA0MjkgMzIwOyIgeG1sOnNwYWNlPSJwcmVzZXJ2ZSI+DQo8c3R5bGUgdHlwZT0idGV4dC9jc3MiPg0KCS5zdDB7ZmlsbDp1cmwoI1NWR0lEXzFfKTt9DQoJLnN0MXtmaWxsOm5vbmU7c3Ryb2tlOiNCQ0JDQkM7c3Ryb2tlLXdpZHRoOjI7c3Ryb2tlLW1pdGVybGltaXQ6MTA7fQ0KPC9zdHlsZT4NCjxnPg0KCTxyYWRpYWxHcmFkaWVudCBpZD0iU1ZHSURfMV8iIGN4PSIyMTQuNSIgY3k9IjE2MCIgcj0iMTg5LjIyMjQiIGdyYWRpZW50VW5pdHM9InVzZXJTcGFjZU9uVXNlIj4NCgkJPHN0b3AgIG9mZnNldD0iMCIgc3R5bGU9InN0b3AtY29sb3I6I0UwRTBFMCIvPg0KCQk8c3RvcCAgb2Zmc2V0PSIwLjI3OTgiIHN0eWxlPSJzdG9wLWNvbG9yOiNEOUQ5RDkiLz4NCgkJPHN0b3AgIG9mZnNldD0iMC42ODQ1IiBzdHlsZT0ic3RvcC1jb2xvcjojQzZDNkM2Ii8+DQoJCTxzdG9wICBvZmZzZXQ9IjEiIHN0eWxlPSJzdG9wLWNvbG9yOiNCM0IzQjMiLz4NCgk8L3JhZGlhbEdyYWRpZW50Pg0KCTxyZWN0IHk9IjAiIGNsYXNzPSJzdDAiIHdpZHRoPSI0MjkiIGhlaWdodD0iMzIwIi8+DQo8L2c+DQo8bGluZSBjbGFzcz0ic3QxIiB4MT0iMCIgeTE9IjAiIHgyPSI0MjkiIHkyPSIzMjAiLz4NCjxsaW5lIGNsYXNzPSJzdDEiIHgxPSIwIiB5MT0iMzIwIiB4Mj0iNDI4LjgiIHkyPSItMC4yIi8+DQo8L3N2Zz4NCg==";

TXTextControl.images.addInline(imageData, -1, function(image) {
        if (image != undefined) {
                image.setName("image1");
        }
})

Merging Placeholders

Image placeholders are merged automatically when calling one of the Merge methods of MailMerge. The following simple JSON data source is used in the following example:

[
  {
    "image1" : "iVBORw0KGgoAAAANSUhEUgAAAS0AAABHCAIAAADdmYYxAAAOzklEQVR42u2d+XsURRrH/QN213PxeHR9dN31BjwQhAVEBVS8EXBx1VUQwxUJIsFA5AgoCAqEKx6BhBzkMndCYu5gyEFAEswFuY/JOTM5Z3IN2Xdtn7Lp7qqunklkZp73+9Qv6amq7q6qT9VbVW91rhlBoVBXW9dgEaBQyCEKhUIOUSjkEIVCIYcoFHKIQqGQQxQKOUShUMghCoUcolAo5BCFQg5RKBRyiEIhhygUCjlEoZBDFAqFHKJQyCEKhUIOUSh75PDg8VT+0G7oJilPnanQlLasUkfSXqptIdcLi2s0PXFrRxdJm3P2IlyJSj7L/xjnS+s13a63t7esrCwrKzM6OiowMODYsaO+vt9D8PM7FhYWdvJkYn5+XnV1tdls1pTt4OBgXV1dYeGZ1NSUmJiY8PCw0NCQiIjwmJjolJQUuF5bWwtxOHPr7jEzXrmgqIqdXLEqoVSFX/sHhjRVNE8gt9ZUd34RpyJOnoGnrdfpbWn0VXWthwPT3l///ZTXt90xze1PDy0Two2Prhj/wqZXP9y/1TsamtawxcKTG618jkf+pIFD8hA8oajs90a8fmeoprSB0TniR39y/jbh+j2zPtEbe/mfeMGqg0LC26euaWwxwJXn/ruH/zHEjYCturrahIR4gTqekJiYWF1dZVGrvNbW1vT0NMBYNUNgHiiF+OqP2tTBeOW7Z64zdvUxkitWJZSq8Gtnd5+miuYJ5Naa6k4cHpjz6Zb9UW36bv6Wc/ny5cjkwlmLd3Le4p9Pr9/lk9Db18/OllY+8IT2ziEIhkfofoSfoGfifNyAqBySIXSNVtQlD4ednZ3x8XH8BIrDiRPBHR0ditn29fUBV1ZkCAlt4RDChxuPORmHQrh1iut3IZk8LediTctTi7+w4hZ3zfg4+sezY87hjkOxkkAy8vz6B8lPLe1d8sqDopRnIg9ihgWBbUDuBR0VT69/y2RXIf7SDb7kOhAuuRcZbBetPiT5SdVIq6mp8ff3sw5CIYBJKc+2ubkZzFqtWUVFRfb09Ng4HgohKfuC83EohFVbAmCsY5QPvPu4x1fZcgsoIpqZOjocyi+RjOAGPJ0oNG7rzHQou5c/2Ctkcuf0tTDxY0d+/r095A27ekyMyND9Kw7CqqqpqT4KE0AbIFTkUKdr4jFEJQHMV84pIg+H9z3rDtNIp+QQgrd/ChXCrOK/jP/Q9lu4bPJTpN3hOfx/A201kokyjF2MmGBPCtGgTH8qvMjO1joO9Xq9Ki0wZ4uICI+NjYmM/IE2bEo4NBqNx4/7s7MNDQ2JiYkODw8TegHIuaKinP/JeTiEsHLzcWfl8LYpHyn2MuVVOvZICJbtS0v3wswImt+EeZvYd9l3LNk5OQSB8U3uGBSTqxinorqZTCbBWlbN0woOoauLiopioJKcnNTY2DA0NESSWCyW1tbWnJyfJPSKOYRsATBansHBQeXlZeK11v7+/oqKCkBXeZV1aHj7wVh5vXByCCErv1wrh3DTuLSfaeHddd8q3mi5pz8jlSqHOWcvwmsKoV6nr6xthVRAy58fpo5s4YkFkveyWC5PX7iDFv/+2Rug7Q0NWyTTyLfcfGhJrp+4HMB2Tg5/xcaP9GpNrdImCCU1Y9FvpTltgRc0i7HgEFo/jRbArLKykpG2r68vIyNdkUMY1mjZwohqMpn4S6m5rXP2O1/CS7nvCrWaQ2gc8gVANodsiRcUrFiXpnEoX00QlJhRRHu1TbIOOjg2lxZ55r8/N3RSV+l3+STQEi5YddBpOezpNT8410PIDWaMEiv888Nxwk83PbZS3huNFodgbSrSAoZiY2MjTw4NDQ0wvkk4BFNTMdugoEDVVVCx0nNL7565jpRDh6HHOg4hfPJFiONyCAKEaPM3Scwpr2+jLYGKd8IVtcTdl1aAMGY6J4eg3HOVZDLtG5ZFrp8rqb1ugotw3Sc4nXuA1cZhS0szbdQ6c6ZAQ4fS05OZmdHW1kbWSGnZ8k//YPhy2x7MXpbQxCGYdoL/g4NySCMESkkcrbi8gVYCPA2pTd8N/Z1i8q3e0U7LIQheT8hw3KTVtY3tcMXcP/jYy5uFi6+57GevTdvCYX5+viItAQHH+Z1alLLNow2Gw8PDPDkUFtdAdcrr+IX3v+LhcNHqQ4rXJ8zbBGXroBwupLzUTp94cbTd3yYqRrtlsivYXzzPtnSDMvBT3/ByZg5h4kfmgXPe2Q2T7E+/DBP+/Nu/3GB2pGXCqY3DuLhYRWCys7NseSPaCk1u7mnOHOD5Fev45idWQ/moclhyqen+2RsUf9q4J8IROTT1D0JjUEySmlOi6HclCW+v/Ya3+lLOKeYAhlufqd9pORRWq8gqM/RGZHFMvMI2FhzStiuqqqpseR3FbGGM1el0nDnUNLTTjKuK6mZVDuH6j6d+oTUm4tnrKBwODA4BRTTfPckC3vgXNtno2NjS3kUrfLGXsr1wCI0+u6BCNYh9cRj6PjRLvgKufQFWA4dms4k2i6PtH/DIZDLJdymKis5rMnTBFL92vItiNaedLuXhkDGhmvTqlv6BITvnEBphh6EHOp2AqJxpC7xoYMi92254ZIVizPj08/zlT8vkZGaR3XFonX8po+XNX3GApHroOQ9VR1sbOezu7qZxqGlJUyKDwUDyCQ8PKy0t5ZwTSnTn9LWK5UnOQ6hy2G7optlywpKDHXKoKbzl5iO20oU5Di2yqhOIWGSNWhLEG93OyeGIyHVGkwu41Rzq9R00DgcGBqzmUMg2MTGhrq6Of4VJLsV1GsmrsTlk7KRdN8EFRh6H5hAgFEZ1nrUT9gqQdYVvLxzC/aA0VQNMVLj206ub/3rlejFMl8eUw66uLhqHvb29VvNjNpv1epuOyQm6a8bHql2yKoegV5btU4zz5Pxt8n0Rh+DwpsdWHvBPUezjYHikpYIpku3jYUh8njOv08BEnMwBSBHcMc1N7mQzihyC8UnjkOwEXkXRpihJWcWaOKxtbKd5Wt425SOH4/Dh5zcKp09por2spm6dlknyqQvOzOHGryLI8Qtdq3Hmm795Tsxb8rVkAvDHrJeWl5ePLlTwFknZF86V1HLGr65v47GveDgEefun8Dd0+x8Pwdhm5Pz4K5sVU+35LpGz8BneEaWXmpyWw4y8MrJREZt6buRK9+69vkljxyFtoy8tLXW0COzt6/8mOGPiPE94qs37ojhThSUUKNbxteNdTKKNeE4Ohy2/e+raOYdfHImDuoNwJCj9+onLaXYpo0ejOaAvZB7rESsyuVAxB2iT4j0Sp+LQ0Nn7j6fXCxku8zgqX7MB84z/0zJaOczNPU075cRzDFe1W/XYHS62/R6c68E5vL+3/jvFOp6+cAdPzy3hcORXby/iJ2jPHIpH+0MBqbSHvPcZd9qxVQBYMQmYmuyGTfTGSmVPgDnv7OZZE3JIDslhk/uedRef8YX2Sqrq0Zc+6zMPjAWHjY0NtCliZmaG1S/VbuhevOaI4iHUxIwi1eT1Oj1tKIDhwjoOQZ/tjXQsDkG07XsIc9/dPTA4pMmq9DoQo/pgJZeaaGesJKcQnYdDv4hT5KaZeWWSX2sb229+YrXwq+vWwLHg0GKxhIaG0H2yK6x7L7Be7pn1iWIlwexF7OGpuI9K648BbAlgmjiE+6oeeLU3DsGqh16Y9qhrvIIUMydfe5Ablr9cbGSvF9I+ZgN2mWQEdhIOL9W2jJu0mnYkR9Cx8GxN/hBWnHsqKyuTExgYGJCdnVVfX8eTA8y+krIvQM8t3qHZdzSZcZLNREERICS+tfIg31PVxCEou6DCsTgElV5qIu1EHqArl2cOfTrjW2xix8Ar1s9N/TRXcvmpDifhUOzb/ciLnox2OX+5N1lKVfX5toJDGBLJak1IyInc3FydTse5/w42DMwA//7UOrk3LLzRw89vpFXqpFe3ALqSuWLhhZqXlu6lJQHTQP71Tq0cglZ85u9YHDJWrYST8vnnFZyB/7OWergeqP78cFxV3e+fpezuMQdGn6bt3QvnDeRfaqRxeMtkV2CEM1xlDjfviyILgND+GDGbWo23T10jRH5l2T42IdZ9n8ZoNJ49W9je3s4Zv8PQczgwTf7lBYlXet7PlbRpHjmW+prL/qUbfOevOPDQcx5sPE7E5fHPhRgcQuXSNqnt+bzFxztO0B4Y+kGdbJ9Zb+y971l3dpFCOUAlTpznya4mmA6I3UpVOdQUriaHp85UkDWM7QfVMwmJzyPPdoD+fa4RG77XxrkDEZ5Y8KbrYVq1yU+HMD7QoClIlmds4XDkyi8DOQqHjJmb8LULuY9beZWO5qOrKdBOD9sLh9CdPDl/m2pIuHJeZ+zqu/cZd7IKz/PVGbGZAdPl4vKGP5JDAb/Fa47QjmkzOBQ6EZpnDOch+v1+P2rdcWZzCFpEnwjZ7TnghmYDgyv51zGENQiepSlauPHRFWCvMiwLu+DQOj9vss0KL8n51RlhJ4BYU4wlx1HkkB8/oXdY4u5L88I7X1pPPnCsKdw/e0OGbBl5VDiERyWfZnYUDkFpp0sZnyQ9EpSuWI9u24Nph8gYYdbinSUi7xmn4hB6F04LU6749PMk7dodwWPKYWpOCfEuYIcZi3ZAy1P9Rx3DFgvYqPw0PjjXw9s/xdQ/qOoqYB2HI0oHPu2fQxCY6LRCu26CC82Zu6K62XVr4K1TXFVLHjh/ccnXYMSprtWNFYdQeUJg+3wYOntJTJ4gPkbY0t7FeReaZSKkpf3fnw5Dj/ym1gnIKSiqglYF9ffyB3sFG3vqG17QgN5e+81W7+ik7AuML/DRBCYAAAZm9uTXtor/5dC4x1c98qLnglUHd/rEFxbXcBYO2AWKZ6/N/epnjqGdwURdnpbzfBAUsuKt2U7YRHAXxeSqFUd7bCEw5izCJDM9txRKGGoQZpsT53k+MOdTCNMWeL3u4u2+KzQ0IZ//P9gMDVt4zsGzA/7/QxTq6gs5RKGQQxQKhRyiUMghCoVCDlEo5BCFQiGHKBRyiEKhkEMUCjlEoVDIIQqFHKJQKOQQhUIOUSgUcohCIYcoFAo5RKGQQxQKhRyiUPao/wGX3M0uFVqECgAAAABJRU5ErkJggg=="
  }
]

The image data is part of the data source as a base64 encoded string.

The following code uses the MailMerge method to merge the image data into the placeholder:

using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) {

  tx.Create();
  tx.Load("template.tx", TXTextControl.StreamType.InternalUnicodeFormat);

  using (TXTextControl.DocumentServer.MailMerge mailMerge = new TXTextControl.DocumentServer.MailMerge()) {
    mailMerge.TextComponent = tx;

    var jsonData = System.IO.File.ReadAllText("data.json");

    mailMerge.MergeJsonData(jsonData);
  }

}

Image References

Images can be also merged from file paths. The following data source contains an image file name:

[
  {
    "image1" : "result.png"
  }
]

In this case, the MailMerge class expects this image as a physical file at the location defined through the SearchPath property.

using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) {

  tx.Create();
  tx.Load("template.tx", TXTextControl.StreamType.InternalUnicodeFormat);

  using (TXTextControl.DocumentServer.MailMerge mailMerge = new TXTextControl.DocumentServer.MailMerge()) {
    mailMerge.TextComponent = tx;
    mailMerge.SearchPath = Application.StartupPath;
    var jsonData = System.IO.File.ReadAllText("data.json");

    mailMerge.MergeJsonData(jsonData);
  }
}

Removing Empty Images

In case the data source doesn't contain an image with the given name in the template, the placeholder is maintained by default. To remove empty image placeholders, the RemoveEmptyImages property can be set to true.

mailMerge.RemoveEmptyImages = true;

Positioning and Object Size

The positioning and the insertion mode of the image placeholder is maintained during the merge process. If the destination image width is larger or smaller, the width is adjusted based on the width of the placeholder image.
