Prerequisites

There are two ways to evaluate the TX Text Control Document Editor. You can either host your own backend by downloading the trial version of TX Text Control .NET Server for ASP.NET, or by creating a trial access token to use a hosted backend, valid for 30 days:

Creating your First Angular Application

This tutorial shows how to create your first Angular application using the TX Text Control document editor.

Prerequisites

  1. Create your free trial access token here:

    Create Access Token

  2. Install Node.js?? and npm, if not done before.

  3. Open a Command Prompt and install the Angular CLI globally by typing in the following command:

    npm install -g @angular/cli

This tutorial uses Visual Studio Code that can be downloaded for free.

Creating the Angular Project

  1. Open a Command Prompt and create a new project and default app by typing in the following command:

    ng new my-editor-app

    Follow the questions in the command prompt by answering them with "y" to add Angular routing and Enter to confirm CSS as your preferred stylesheet format.

  2. Change into the created folder by typing in the following command:

    cd my-editor-app
  3. Install the TX Text Control document editor package by typing in the following command:

    ng add @txtextcontrol/tx-ng-document-editor
  4. Open this folder in Visual Studio Code by typing in the following command:

    code .

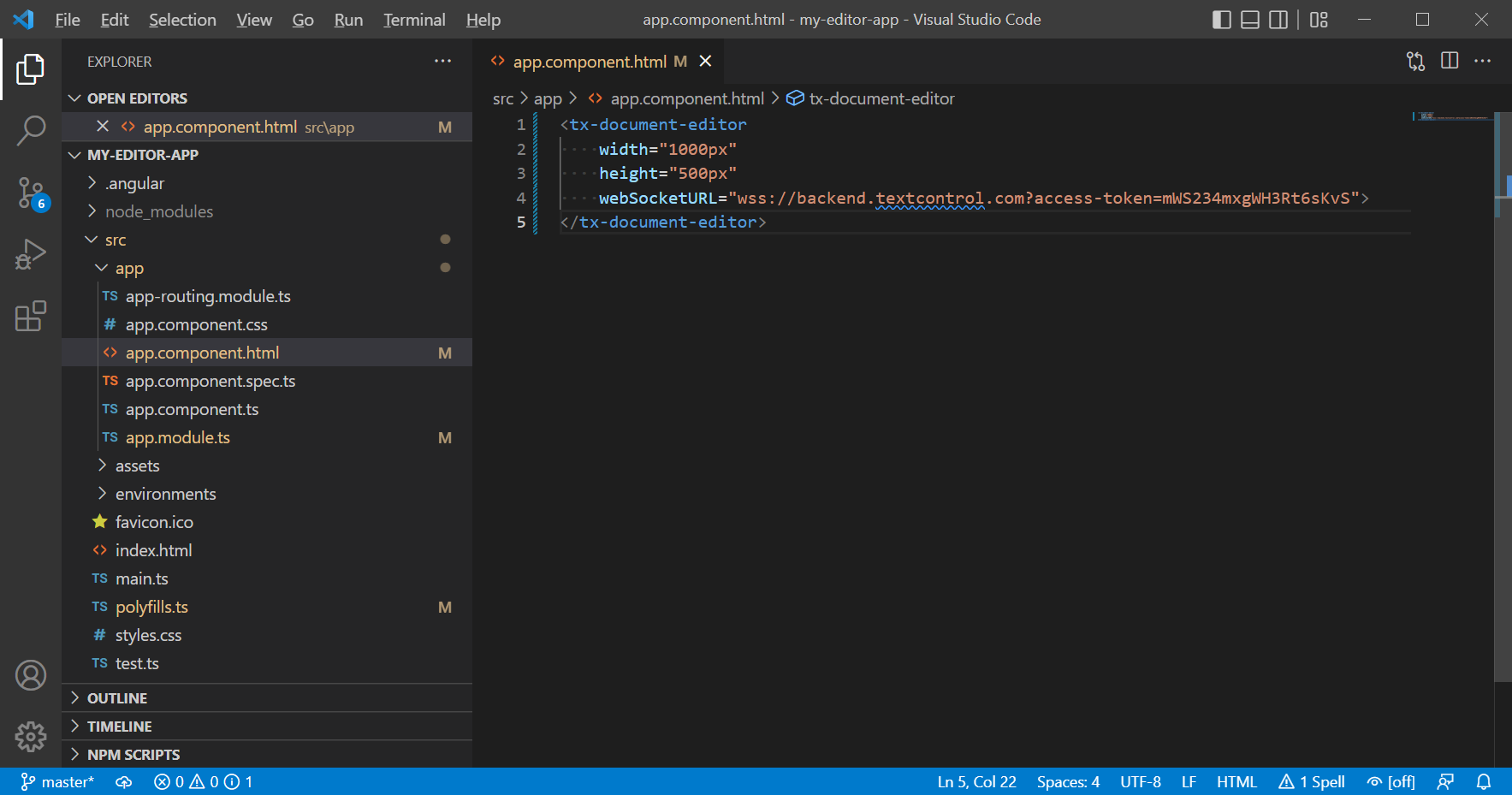

  5. In Visual Studio Code, open the file src -> app -> app.component.html, add the following code, replace yourtoken with your given Trial Access Token and save it:

    <tx-document-editor
    width="1000px"
    height="500px"
    webSocketURL="wss://backend.textcontrol.com?access-token=yourtoken">
    </tx-document-editor>
    view raw gistfile1.html hosted with ❤ by GitHub

    Backend Server

    In the code above, a hosted demo backend server is used specified through the webSocketURL property. If you are hosting your own required backend server, replace the URL with your backend endpoint such as ws://localhost:8080/TXWebSocket.

    Creating the application

  6. Back in the command prompt, start the Angular application by typing in the following command:

    ng serve --open

Additional Steps

This tutorial uses a demo server backend for the required synchronization service that synchronizes the document in order to provide the WYSIWYG rendering - a unique feature of TX Text Control to edit documents pixel-perfect across devices and browsers.

Creating your own WebSocket Server

To learn how to create your own WebSocket server project, please have a look at this tutorial:

Creating a WebSocket Server Project with Node.js

Attribute Documentation

All available attributes for the Angular element are documented in the NPM package overview page:

TX Text Control HTML5 Document Editor (Angular version)

Using the JavaScript API

In order to program the Angular Document Editor, a JavaScript API is available. This API is compatible to all supported platforms including ASP.NET MVC, WebForms and Node.js. The API documentation can be found here:

JavaScript API

This article shows how to integrate the JavaScript API into Angular's TypeScript structure:

Loading and Saving Documents using Angular

Deploying your Angular Application

To learn how to deploy this project with your own WebSocket Server, please have a look at this article:

Deploying the Angular Document Editor
