New Article

This article contains outdated information and has been replaced with a new version.

TX Text Control Document Editor Deployment Strategies

The following tutorial shows how to create an ASP.NET Core .NET 6 web application that uses the MailMerge class to merge JSON data into a document template and to load this into the document viewer.

Creating the Application

Make sure that you downloaded the latest version of Visual Studio 2022 that comes with the .NET 6 SDK.

1. In Visual Studio 2022, create a new project by choosing Create a new project.

2. Select ASP.NET Core Web App (Model-View-Controller) as the project template and confirm with Next.

3. Choose a name for your project and confirm with Next.

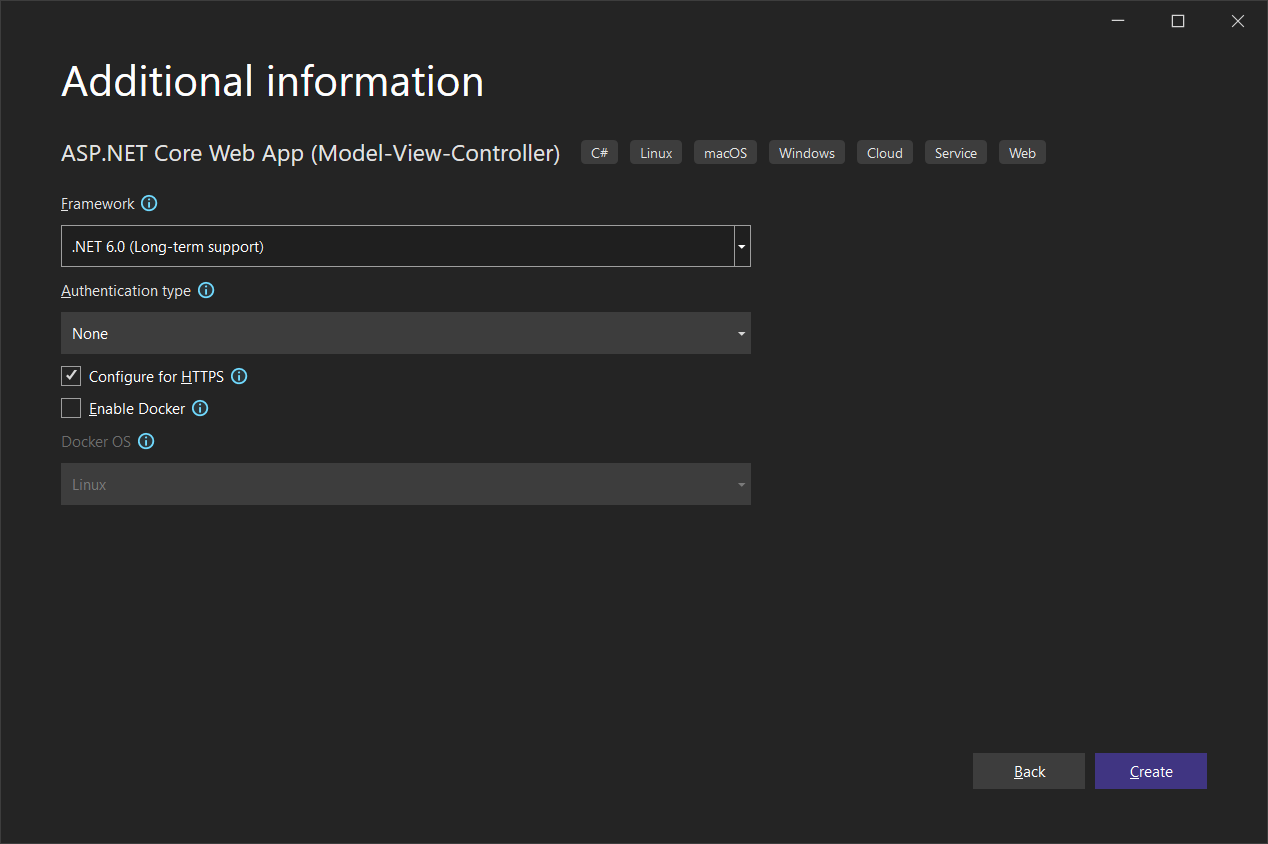

4. In the next dialog, choose .NET 6 (Long-term support) as the Framework and confirm with Create.



Adding the NuGet Package

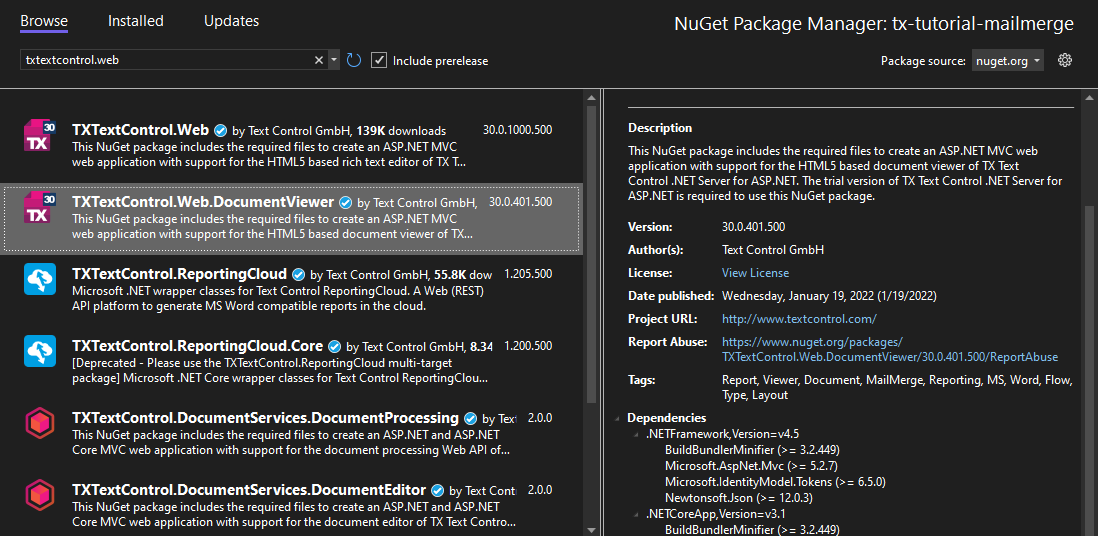

5. In the Solution Explorer, select your created project and choose Manage NuGet Packages... from the Project main menu.

   Browse for txtextcontrol.web and Install the latest version of the TXTextControl.Web.DocumentViewer package.



Configure the Application

6. Open the Program.cs file located in the project's root folder. Add the following code after the entry app.UseStaticFiles();:

   // enable local 'App_Data' folder to access local documents
   AppDomain.CurrentDomain.SetData("DataDirectory", System.IO.Path.Combine(System.IO.Path.GetDirectoryName(
                  System.Reflection.Assembly.GetEntryAssembly().Location), "App_Data"));

Adding the Document Viewer to the View

7. Find the Index.cshtml file in the Views -> Home folder. Replace the complete content with the following code:

   @using TXTextControl.Web.MVC.DocumentViewer

   <div style="width: 800px; height: 600px;">
           @Html.TXTextControl().DocumentViewer(settings => {
                   settings.Dock = DocumentViewerSettings.DockStyle.Fill;
                   settings.ToolbarDocked = true;
           }).Render()
   </div>

   <input type="button" value="Merge Document" onclick="mergeDocument()" />

   @section Scripts {
           <script type="text/javascript">

               function mergeDocument() {

                   // call the Web API "MergeDocument"
                   $.ajax({
                       type: "GET",
                       url: "/Home/mergeDocument",
                       contentType: 'application/json',
                       success: successFunc,
                       error: errorFunc
                   });

                   function successFunc(data, status) {
                       TXDocumentViewer.loadDocument(data);
                   }

                   function errorFunc(xhr, ajaxOptions, thrownError) {
                       alert(thrownError);
                   }

               }
           </script>
   }

   This code adds the document viewer to the view and a button that calls a Web API endpoint to merge a document server-side.

Adding ServerTextControl to the Project

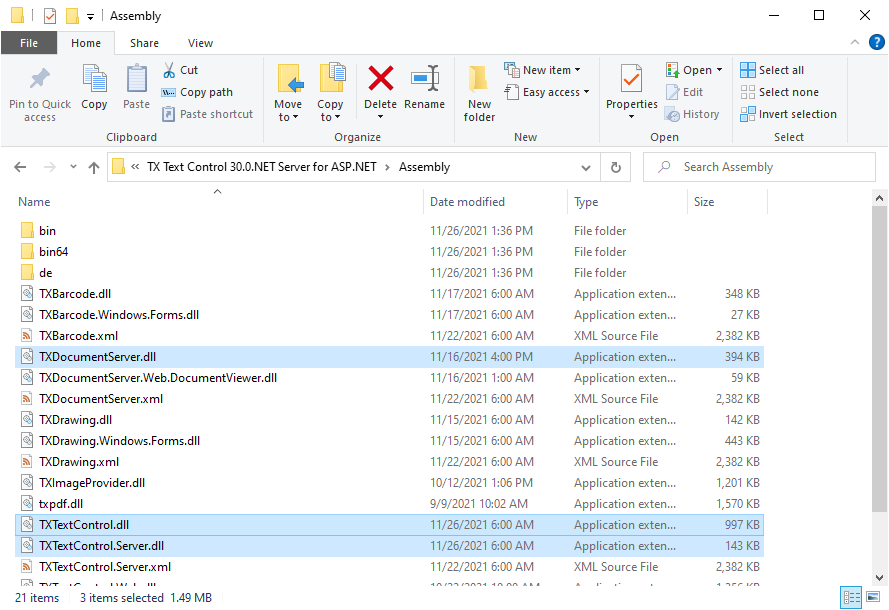

8. While the project is selected in the Solution Explorer, choose Project -> Add Project Reference... to open the Reference Manager. In the opened dialog, select Browse... to select the required TX Text Control assemblies. Navigate to the installation folder of TX Text Control and select the following assemblies from the Assembly folder:

   • TXDocumentServer.dll
   • TXTextControl.dll
   • TXTextControl.Server.dll



   Repeat this step with the following assemblies from the Assembly/bin64 folder:

   • txic.dll
   • txkernel.dll
   • txtools.dll

   After selecting these assemblies, close the Reference Manager by confirming with OK.

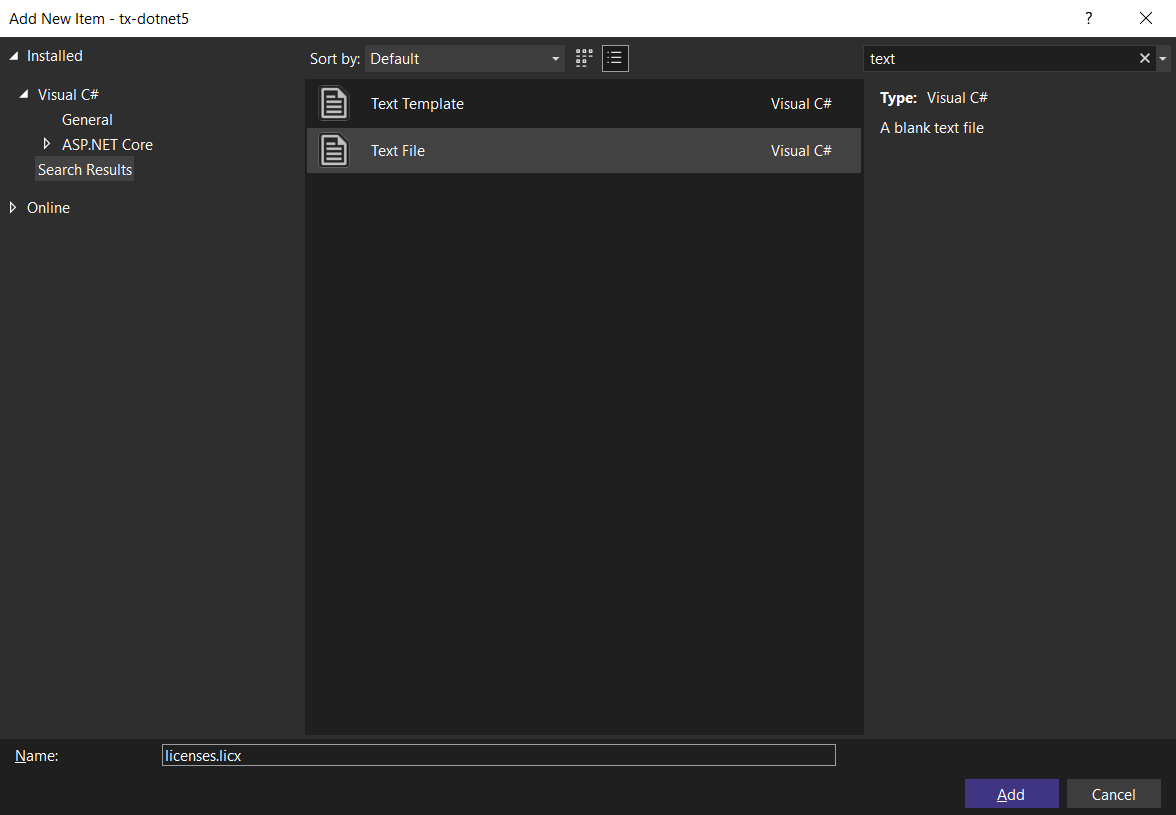

9. While the project is selected in the Solution Explorer, choose Project -> Add New Item.... Select Text File, name the file licenses.licx and close the dialog by clicking Add.



   Open the newly added file and add the following content:

   TXTextControl.ServerTextControl, TXTextControl.Server, Version=30.0.1500.500, Culture=neutral, PublicKeyToken=6b83fe9a75cfb638

   Set the Build Action property to Embedded Resource.

10. Select the project in the Solution Explorer and choose Edit Project File from the Project main menu. Find the PropertyGroup entry and replace the whole node with the following code:

    <PropertyGroup>
            <TargetFramework>net6.0</TargetFramework>
            <EnableUnsafeBinaryFormatterSerialization>true</EnableUnsafeBinaryFormatterSerialization>
            <EnableUnsafeBinaryFormatterInDesigntimeLicenseContextSerialization>true</EnableUnsafeBinaryFormatterInDesigntimeLicenseContextSerialization>
            <ImplicitUsings>enable</ImplicitUsings>
            <Nullable>enable</Nullable>
    </PropertyGroup>

    BinaryFormatter Information

    The above setting is required to enable the obsolete .NET BinaryFormatter while compiling the license into the assembly. We are working with Microsoft to avoid this requirement in the near future.

Adding the Template and Data

11. In the Solution Explorer, select the project and click New Folder from the Project main menu and name it App_Data.

12. Download the following sample template and save it to the newly created folder:

    template.tx

13. In the same folder, create a new JSON file, name it data.json and insert the following content into it:

    [
      {
        "name": "Jackson",
        "firstname": "Peter",
        "city": "Charlotte",
        "zip": "28226",
        "street": "6920 Shannon Willow Rd",
        "product": [
          {
            "name": "TX Text Control .NET Server for ASP.NET",
            "price": "2998"
          },
          {
            "name": "TX Text Control .NET for Windows Forms",
            "price": "1459"
          }
        ]
      }
    ]

Adding a Web API Endpoint

14. Open the HomeController.cs and add the following method:

    [HttpGet]
    public IActionResult MergeDocument()
    {

        byte[] bDocument;

        // create a ServerTextControl
        using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) {

            tx.Create();

             // load the template
            tx.Load("App_Data/template.tx", TXTextControl.StreamType.InternalUnicodeFormat);

            // create the mail merge engine
            using (TXTextControl.DocumentServer.MailMerge mm = new TXTextControl.DocumentServer.MailMerge())
            {
                // connect to ServerTextControl instance
                mm.TextComponent = tx;

                // merge data
                var jsonData = System.IO.File.ReadAllText("App_Data/data.json");
                mm.MergeJsonData(jsonData);
            }

            // save in the internal format
            tx.Save(out bDocument, TXTextControl.BinaryStreamType.InternalUnicodeFormat);
        }

        return Ok(bDocument);
    }

Now, compile and start the application. Click the button Merge Document to call the Web API and to load the merged document.
