One of the new helpful features in the next version X9 of TX Text Control are the ready-to-use contextual menus we are currently working on. These dynamic menus are available by default and usable without any additional programming.

The following steps are required to create a fully-featured word processing application using TX Text Control that gives you full access to these new context menus - without writing a single line of code.

  • Open Visual Studio and create a new project.

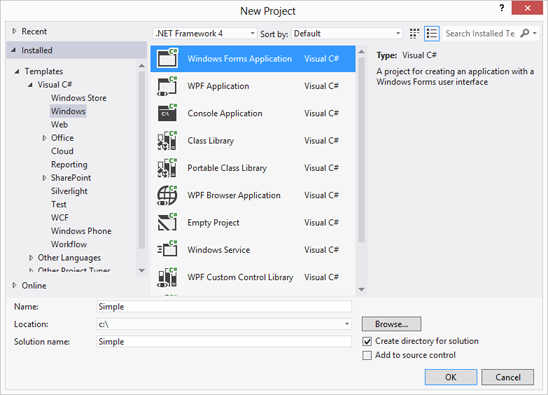

    Select Windows Forms Application from the Windows templates, choose a name, select a location and confirm with OK.

    TX Text Control X9 in Visual Studio
  • Find TextControl in the toolbox and drag and drop an instance onto the form.

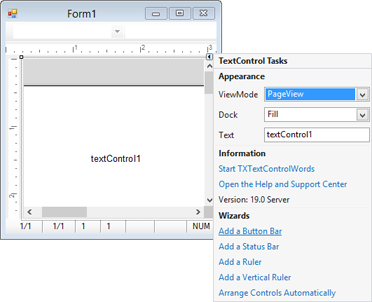

    Visit the SmartTag in the upper right corner of TextControl and add a button bar, a status bar, a ruler bar and a vertical ruler using the available Wizards. Finally, arrange and connect the controls by clicking Arrange Controls Automatically.

    TX Text Control X9 in Visual Studio TX Text Control X9 in Visual Studio
  • Start the application.

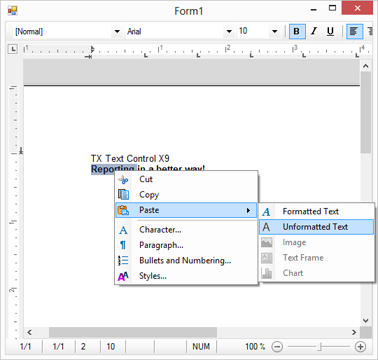

    You can immediately start typing text, use the button bar to do some formatting or to zoom using the status bar. Here is the new part: You can right-click everywhere in the document which opens contextual menus dependent on whether the mouse is over normal text, header or footer area or in a table.

    TX Text Control X9 in Visual Studio

Context Menus for Page Settings, Tables, Images and Text Frames

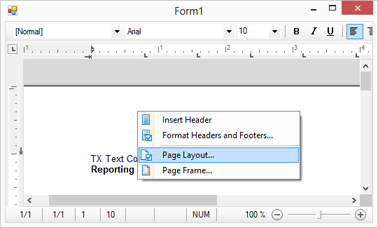

You can use the context menu to insert headers and footers or to adjust the page layout or borders:

TX Text Control X9 in Visual Studio

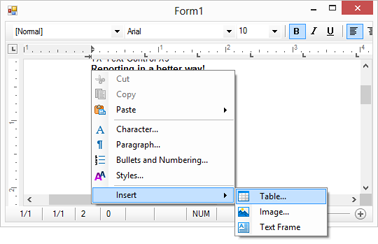

The following screenshot shows a context menu that is shown when no text is selected:

TX Text Control X9 in Visual Studio

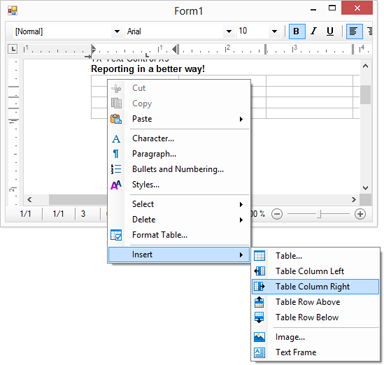

When the input position is inside a table, the following context menu options are available:

TX Text Control X9 in Visual Studio

There are many more menu options available for all kind of situations in a document. The ready-to-use context menus contain pre-defined icons that matches the icons in our Ribbon demo. You will have access to more than 350 different icons that can be used in your applications.

The context menus are fully customizable and you can add, remove or change menu items from the context menus.

This is just another great new feature of TX Text Control X9. Stay tuned for more!
