Creating Office Open XML (DOCX) documents in .NET applications is a common requirement and can be very complex when using the Open XML SDK. TX Text Control provides a high-level API for creating and manipulating DOCX documents in .NET applications. The library supports all the features of the DOCX format, including tables, headers and footers, and images.

With TX Text Control, you can generate MS Word document files in any .NET application, whether it's ASP.NET Core, a console app, or a Windows application.

Creating the Application

To demonstrate how easy this is with the TX Text Control library, we will use a .NET console application.

Make sure that you downloaded the latest version of Visual Studio 2022 that comes with the .NET 8 SDK.

Prerequisites

The following tutorial requires a trial version of TX Text Control .NET Server for ASP.NET.

  1. In Visual Studio 2022, create a new project by choosing Create a new project.

  2. Select Console App as the project template and confirm with Next.

  3. Choose a name for your project and confirm with Next.

  4. In the next dialog, choose .NET 8 (Long-term support) as the Framework and confirm with Create.

Adding the NuGet Package

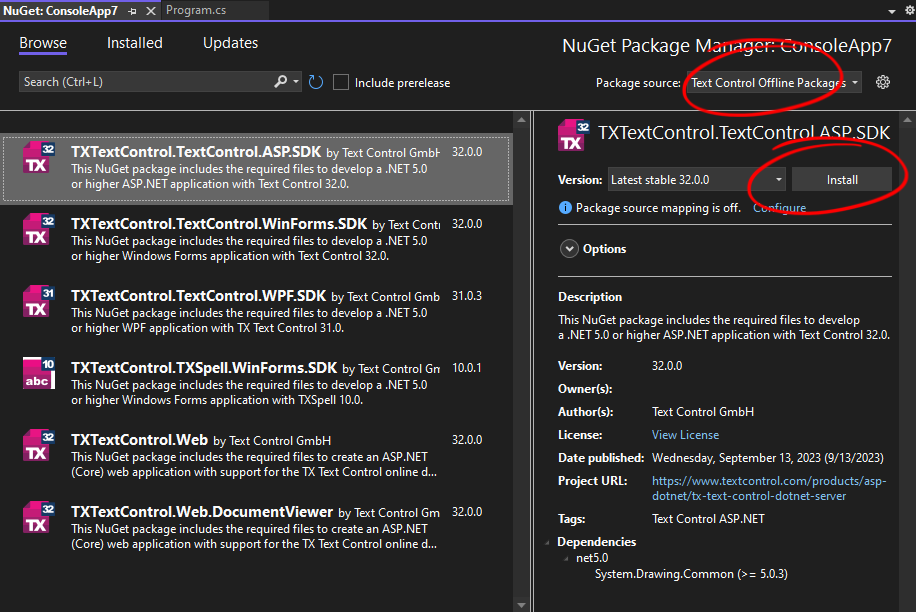

  1. In the Solution Explorer, select your created project and choose Manage NuGet Packages... from the Project main menu.

    Select Text Control Offline Packages from the Package source drop-down.

    Install the latest versions of the following package:

    • TXTextControl.TextControl.ASP.SDK

    ASP.NET Core Web Application

Creating a Word Document

  • Open the Program.cs file and add the following code:

    using TXTextControl;
    using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl())
    {
    tx.Create();
    // Add a paragraph to the document
    TXTextControl.Selection selection = new TXTextControl.Selection(0, 0);
    selection.Text = "Hello Office Open XML!";
    // Set the paragraph format
    selection.ParagraphFormat = new ParagraphFormat()
    {
    Alignment = HorizontalAlignment.Center,
    BackColor = System.Drawing.Color.LightGray,
    Frame = Frame.BottomLine,
    FrameLineColor = System.Drawing.Color.Red,
    FrameStyle = FrameStyle.Double,
    FrameLineWidth = 10
    };
    // Set the font format
    selection.FontSize = 240; // 240 twips = 12 pt
    selection.FontName = "Arial";
    selection.Bold = true;
    // Apply the changes to the document
    tx.Selection = selection;
    // Save the document
    tx.Save("results.docx", TXTextControl.StreamType.WordprocessingML);
    }
    view raw test.cs hosted with ❤ by GitHub

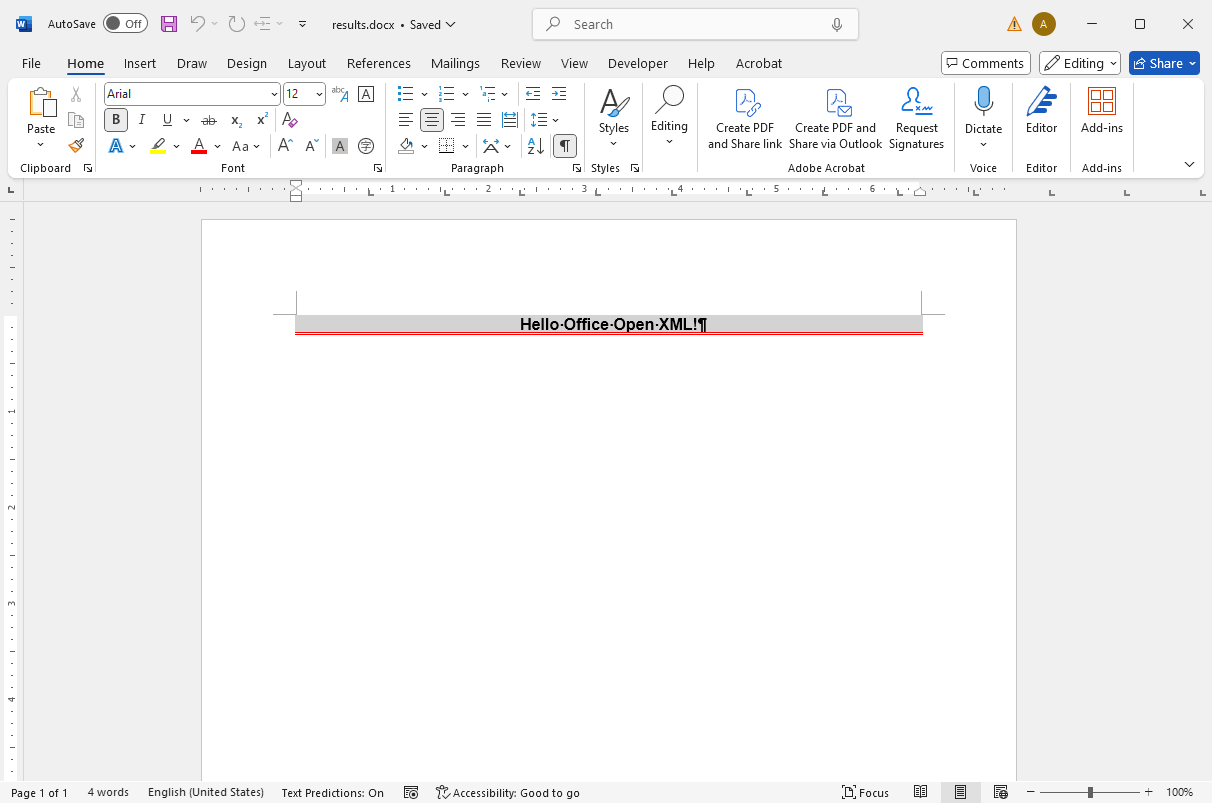

This generates a new document and inserts a paragraph with defined formatting, such as borders, alignment, and character styling. The document is then saved as a DOCX file.

Creating documents with TX Text Control

To create the document in the legacy DOC format, you can use the StreamType TX Text Control .NET Server for ASP.NET
TXTextControl Namespace
TXTextControl Enumerations Enumerations
StreamType Enumeration Enumeration
Determines a certain text format.
MSWord:

tx.Save("results.doc", TXTextControl.StreamType.MSWord);
view raw test.cs hosted with ❤ by GitHub

Adding Tables

Inserting tables into a document is as straightforward as adding text. The following code snippet demonstrates how to create a table, format cells, and apply borders and background colors for a customized appearance.

using TXTextControl;
using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl())
{
tx.Create();
tx.Tables.Add(5, 5, 10);
// Set the table border style
Table table = tx.Tables.GetItem(10);
// Set the table border style
TableCellFormat cellFormat = new TableCellFormat()
{
BottomBorderWidth = 1,
BottomBorderColor = System.Drawing.Color.Red,
TopBorderWidth = 1,
TopBorderColor = System.Drawing.Color.Red,
LeftBorderWidth = 1,
LeftBorderColor = System.Drawing.Color.Red,
RightBorderWidth = 1,
RightBorderColor = System.Drawing.Color.Red,
BottomTextDistance = 80,
TopTextDistance = 80,
LeftTextDistance = 120,
RightTextDistance = 120
};
// Loop through all cells and set the cell format
foreach (TableCell cell in table.Cells)
{
cell.CellFormat = cellFormat;
cell.Text = $"Cell: {cell.Row}/{cell.Column}";
}
// Highlight the first column and row
TableCellFormat highlightCellFormat = new TableCellFormat()
{
BackColor = System.Drawing.Color.LightGray
};
table.Columns.GetItem(1).CellFormat = highlightCellFormat;
table.Rows.GetItem(1).CellFormat = highlightCellFormat;
// Save the document
tx.Save("results.docx", TXTextControl.StreamType.WordprocessingML);
}
view raw test.cs hosted with ❤ by GitHub

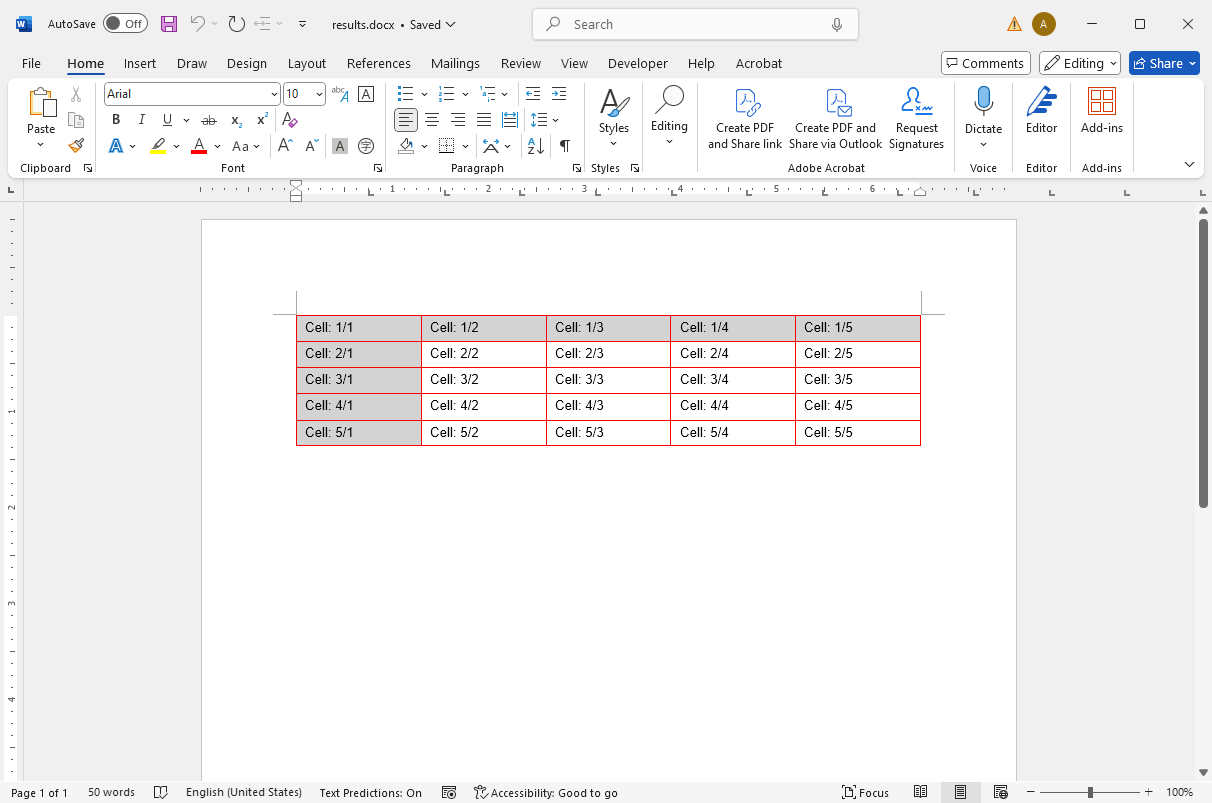

When opened in MS Word, the DOCX document looks like this:

Adding tables to a document

Adding Headers and Footers

You can add headers and footers to a document through the HeadersAndFooters TX Text Control .NET Server for ASP.NET
TXTextControl Namespace
Section Class
HeadersAndFooters Property
Gets a collection of all headers and footers of the section.
collection. The following code snippet demonstrates how to add a header to the current section, complete with an image positioned in the right corner and page number fields for dynamic page tracking.

Headers and footers are designated areas at the top (header) and bottom (footer) of each page within a document. They typically contain information like page numbers, titles, dates, logos, or other consistent elements that repeat across the document to enhance structure and readability.

using TXTextControl;
using (ServerTextControl tx = new ServerTextControl())
{
tx.Create();
// Add a header
tx.Sections.GetItem().HeadersAndFooters.Add(HeaderFooterType.Header);
// Get the header/footer object
HeaderFooter headerFooter = tx.Sections.GetItem().HeadersAndFooters.GetItem(HeaderFooterType.Header);
// Add an image to the header
Image image = new Image("tx_logo.svg", 0);
headerFooter.Images.Add(image, HorizontalAlignment.Right, 1, ImageInsertionMode.AboveTheText);
// Add a text to the header
headerFooter.Selection.Text = "Header Text\r\n\r\n";
// Add a page number field to the header
headerFooter.Selection.Text = "Page ";
headerFooter.PageNumberFields.Add(new PageNumberField());
headerFooter.Selection.Text = " of ";
headerFooter.PageNumberFields.Add(new PageNumberField() { ShowNumberOfPages = true });
// Add a new page
tx.Selection.Text = "\f";
// Save the document
tx.Save("results.docx", StreamType.WordprocessingML);
}
view raw test.cs hosted with ❤ by GitHub

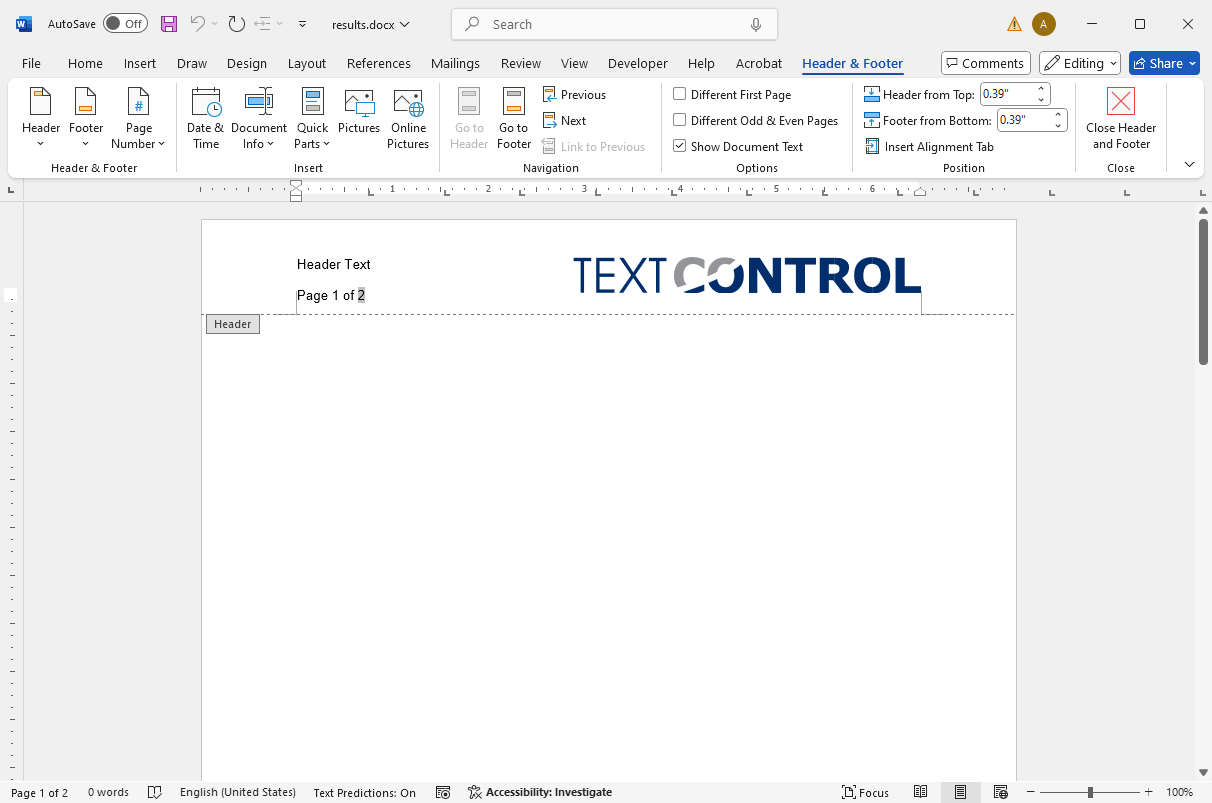

When you open the Word document in Microsoft Office, it looks like this:

Adding headers and footers to a document

Meta Data and Document Properties

Document properties, often referred to as metadata, are details about the document that describe or identify it. This can include information such as the document title, author name, modification date, subject, and specific keywords to identify or categorize the content.

In TX Text Control, metadata can be added using the SaveSettings TX Text Control .NET Server for ASP.NET
TXTextControl Namespace
SaveSettings Class
The SaveSettings class provides properties for advanced settings and information during save operations.
object provided as a parameter in the Save method.

TXTextControl.SaveSettings saveSettings =
new TXTextControl.SaveSettings() {
Author = "Susan Paul",
CreationDate = DateTime.Now,
CreatorApplication = "TX Text Control",
DocumentKeywords = new string[] { "Summary", "Report" },
DocumentSubject = "Detailed summary report 2022",
DocumentTitle = "Sales Report 2022"
};
textControl1.Save("output.docx",
TXTextControl.StreamType.WordprocessingML, saveSettings);
view raw test.cs hosted with ❤ by GitHub

Custom properties allow you to store extra information within a document, which stays embedded and is visible to any MS Word user who opens it. Various property management servers offer data tracking features, enabling users to search, sort, and monitor documents based on these embedded document properties.

The following code is an example of how to add new custom properties to an MS Word document:

TXTextControl.UserDefinedPropertyDictionary userSettings =
new TXTextControl.UserDefinedPropertyDictionary();
userSettings.Add("CustomPropertyString", "Custom property string");
userSettings.Add("CustomPropertyInt32", 123);
userSettings.Add("CustomPropertyBoolTrue", true);
userSettings.Add("CustomPropertyBoolFalse", false);
userSettings.Add("CustomPropertyDouble", 123.232);
TXTextControl.SaveSettings saveSettings = new TXTextControl.SaveSettings() {
UserDefinedDocumentProperties = userSettings
};
textControl1.Save("output.docx",
TXTextControl.StreamType.WordprocessingML,
saveSettings);
view raw test.cs hosted with ❤ by GitHub

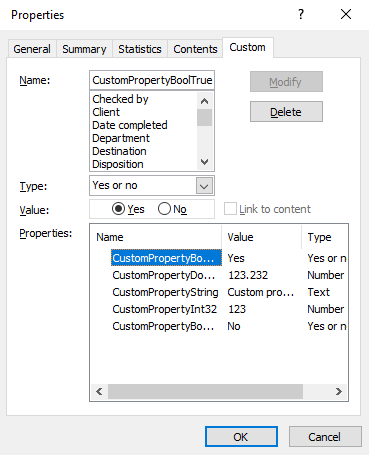

When you open the Advanced Properties dialog box in MS Word, you see a list of these key/value pairs:

Adding meta data and document properties

Conclusion

TX Text Control provides developers with a powerful, high-level API to create and manipulate DOCX documents seamlessly within .NET applications. It provides comprehensive support for all DOCX features, including tables, headers and footers, images, and more. TX Text Control makes it easy to create dynamic, professional-looking documents. Imagine effortlessly creating MS Word files directly from any .NET environment, whether it's ASP.NET Core, console applications, or Windows applications. Take advantage of the flexibility and efficiency of TX Text Control to transform the way you work with documents and add value to your applications.
