Text can be manipulated in many ways using the TX Text Control API. Depending on the current task, various classes can be used to set the input position, to retrieve the text or to set the text at the current input position.
The Basics: The Input Position
The following two properties can be used to manipulate the input position:
-
Selection ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ Selection Class
The Selection class describes and handles the attributes of a text selection. class -
Input
Position ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ InputPosition Class
An instance of the InputPosition class represents the current text input position of a TXTextControl document. class
Both classes can be use to set the input position to a specific character index which is 0-based.
Selection Class
The following code uses the Selection ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ Selection Class
The Selection class describes and handles the attributes of a text selection. class to set the input position to the index location 3 which is the beginning of character location 4.
textControl1.Selection.Start = 3; |
The Selection class can be now used to select a range of text in order to replace it with new text.
textControl1.Selection.Start = 3; | |
textControl1.Selection.Length = 4; | |
textControl1.Selection.Text = "New Text"; |
Although the above code works, the Selection class should be used in a different way. The Selection ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ ServerTextControl Class
╰ Selection Property
Gets or sets the current selection in the main text of the document. property accepts a complete Selection object. The object can be prepared and then applied to the text as shown in the code snippet below.

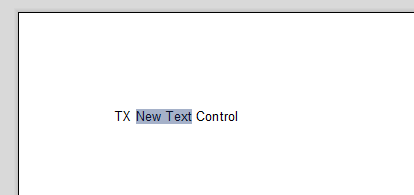

textControl1.Text = "TX Text Control"; | |
TXTextControl.Selection selection = new TXTextControl.Selection(3, 4) { | |
Text = "New Text" | |
}; | |
textControl1.Selection = selection; |
InputPosition Class
The Input
╰ TXTextControl Namespace
╰ InputPosition Class
An instance of the InputPosition class represents the current text input position of a TXTextControl document. constructor offers other possibilities to set the input position. This class can be used to set the input position in case the X and Y coordinates are known or a specific page, column and row number is used. The following implementations of the constructor are available:
public InputPosition(int page, int line, int column); | |
public InputPosition(int textPosition); | |
public InputPosition(int textPosition, TextFieldPosition textFieldPosition); | |
public InputPosition(Point location); |
To set the input position to index 3 similar to the above sample using the Selection property, the following code is required.
textControl1.InputPosition = new TXTextControl.InputPosition(3); |
Retrieving Text
In order to retrieve text from a specific range of text, the Selection class must be used. The following code shows how to retrieve the string "Text" from the above sample.
textControl1.Text = "TX Text Control"; | |
TXTextControl.Selection selection = new TXTextControl.Selection(3, 4); | |
textControl1.Selection = selection; | |
var selectedText = selection.Text; |
To get the formatted text in any supported format, the Selection.
╰ TXTextControl Namespace
╰ Selection Class
╰ Save Method
Saves the selected text of a document with the specified format. method can be utilized. The following code shows how retrieve the word "Text" in HTML format.
string htmlString; | |
textControl1.Text = "TX Text Control"; | |
TXTextControl.Selection selection = new TXTextControl.Selection(3, 4); | |
textControl1.Selection = selection; | |
selection.Save(out htmlString, TXTextControl.StringStreamType.HTMLFormat); |
The variable htmlString contains the word "Text" in HTML format.
<?xml version="1.0" ?> | |
<html xmlns="http://www.w3.org/1999/xhtml"> | |
<head> | |
<meta content="TX31_HTM 31.0.1101.500" name="GENERATOR" /> | |
<title></title> | |
</head> | |
<body style="font-family:'Arial';font-size:12pt;text-align:left;"> | |
<p lang="en-US" style="text-indent:0pt;margin-top:0pt;margin-bottom:0pt;font-size:10pt;">Text</p> | |
</body> | |
</html> |
Retrieving Text without Selecting Text
Using the above methods the text must be selected to retrieve the text. The Text
╰ TXTextControl Namespace
╰ TextChar Class
An instance of the TextChar class represents a single character in a Text Control document. class can be used to retrieve a character at a specific location without setting the input position to that location. The following code returns the character "T" at index 4.
var charAtInputPos = textControl1.TextChars[4].Char; |
The Line ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ Line Class
An instance of the Line class represents a single line in a Text Control document. class can be used to retrieve text from a specific line. The following code returns the complete text of the first line.
var lineText = textControl1.Lines[1].Text; |
The third option to retrieve text without selecting text is the usage of the Paragraph ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ Paragraph Class
An instance of the Paragraph class represents a single paragraph in a Text Control document. class that represents a complete paragraph including text and formatting. The following code returns the plain text of the complete paragraph based on input position 3.
var parText = textControl1.Paragraphs.GetItem(3).Text; |
