What's New in X16
We regularly release major updates to our libraries, adding new features and responding to customer requests.
Collaboration
Track changes
Changes are visually marked in TX Text Control .NET Server and are also available in the new sidebar Tracked Changes. The sidebar lists all changes with a timestamp and author information. This allows multiple users to collaborate by working on the same document.
Excel
Excel compatible formulas
TX Text Control .NET Server supports 100+ formulas, including most mathematical and trigonometric formulas compatible to Microsoft Excel. Typically, a SUM formula is inserted at the end of a table to create a total sum value.
Excel
Excel import
Microsoft Excel spreadsheets can be imported into TX Text Control .NET Server. On loading, the spreadsheet can be selected from the available spreadsheets, which is then converted into a smart table, including Excel compatible formulas.
Mail merge
Data shaping
Merge blocks can be sorted and filtered. The UI (ribbon and dialog boxes), which is available out-of-the-box, reflects these new improvements. This enables very flexible data structures and data shaping options in TX Text Control .NET Server based reporting applications.Track changes
Track and collaborate on document changes with visual cues. TX Text Control .NET Server X16 enables document collaboration features in your application. Track Changes, also known as redline or redlining, is a way to keep track of the changes different authors make to a document.
These changes can be accepted or rejected by the authors to collaborate on the same document. TX Text Control .NET Server X16 remembers these changes, and stores them MS Word-compatible in the document.
Changes are visually marked in the Text Control editor and also available in the new sidebar Tracked Changes that lists all changes with a timestamp and author information. This allows multiple users to collaborate by working on the same document.
Not only interactive changes can be tracked, but also programmatic changes that are done using the Selection object and based on the currently active user. All changes within the text are also visible in the sidebar and accessible programmatically using the API.
Excel compatible formulas
Support for Excel-compatible formulas and live demo. TX Text Control .NET Server X16 supports calculations in a table by using formulas. A formula is a property of a table cell and can be loaded from a SpreadsheetML document or can be inserted using the TXTextControl.TableCell.Formula property and TXTextControl.TableCellFormat.NumberFormula property.
TX Text Control .NET Server X16 supports 100+ formulas including most mathematical and trigonometric formulas compatible to Microsoft Excel.
Formulas can reference other table cells and the text content of a formula cell is automatically updated when the content of an input cell changes.

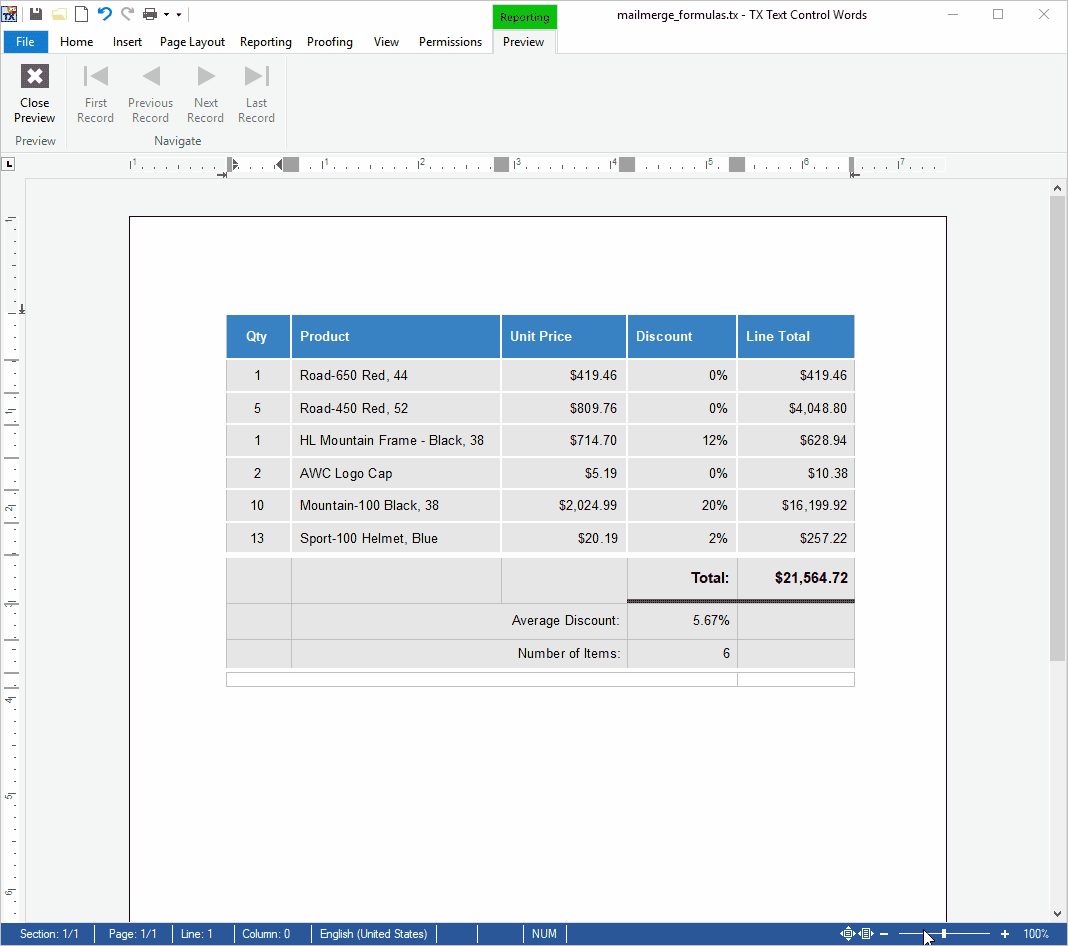

MailMerge: Sorting and filtering
Sort and filter data rows in MailMerge for flexible reporting. TX Text Control .NET Server X16 supports data shaping to filter and sort data rows in a MergeBlock.
The UI (ribbon and dialog boxes), which is available out-of-the-box, reflects these new improvements. The Insert Merge Block dialog box, that inserts a new merge block based on the connected data from the TXText
All of these settings can be set programmatically using the new properties of the TXText
This enables very flexible data structures and data shaping options in TX Text Control based reporting applications.
Excel spreadsheet import
Import Excel spreadsheets with support for specific worksheets. TX Text Control .NET Server X16 supports the SpreadsheetML part of the Microsoft Office Open XML format. This format is a ZIP compressed XML format for spreadsheet processing and is used as the standard format of Microsoft Excel.
TX Text Control loads the *.xlsx format from physical files or from memory containing documents formatted with this format. The StreamType enumeration has been extended with the new SpreadsheetML member.
The LoadSettings.DocumentPartName property returns the names of all document parts of the specified document. Each SpreadsheetML document can contain multiple named worksheets. Using the LoadSettings.DocumentPartName property, the worksheet to be loaded can be defined.

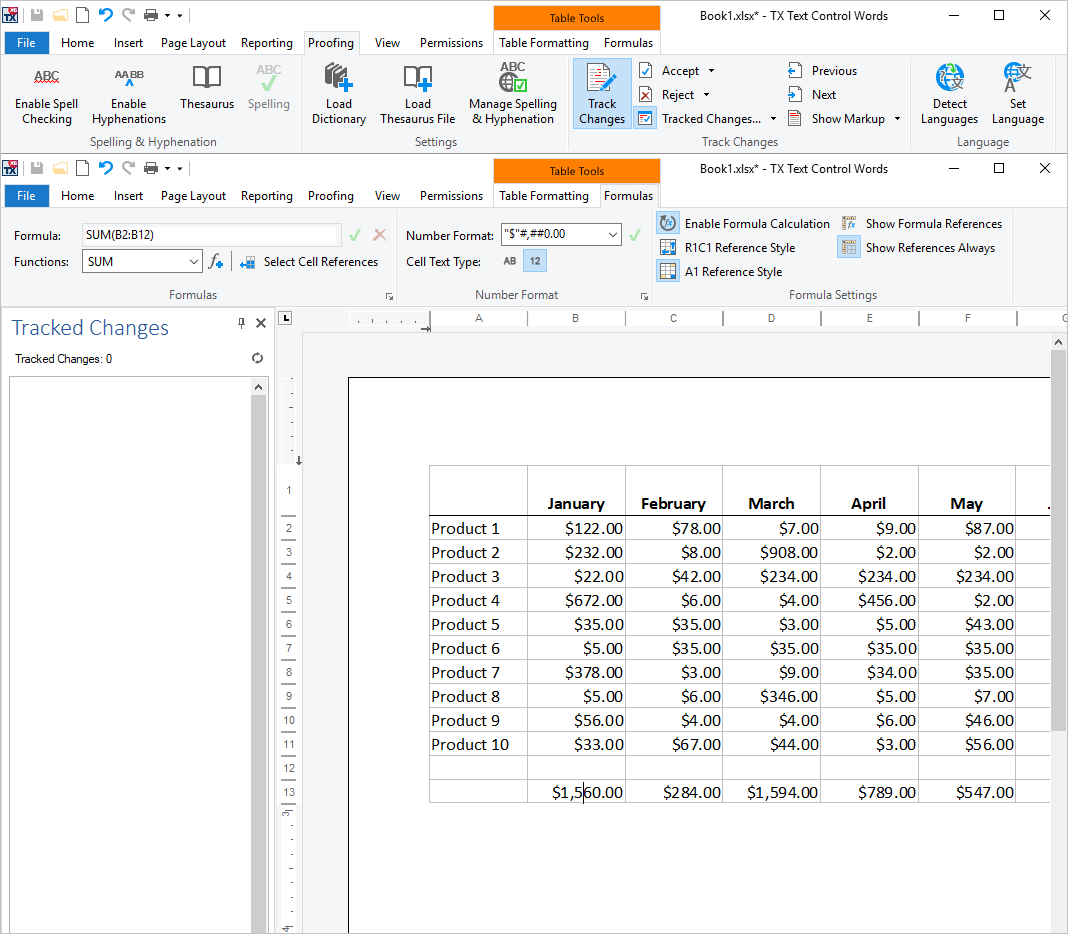

UI: Extended ribbon tabs
Explore extended Ribbon Tabs for track changes and table layout. The Proofing ribbon tab has been extended with a new Track Changes ribbon group, containing buttons to turn on and off tracking changes, to accept and reject tracked changes, and to scroll to the next or to the previous tracked change.
The Table Layout tab has been extended to support formulas and number formats in table cells.

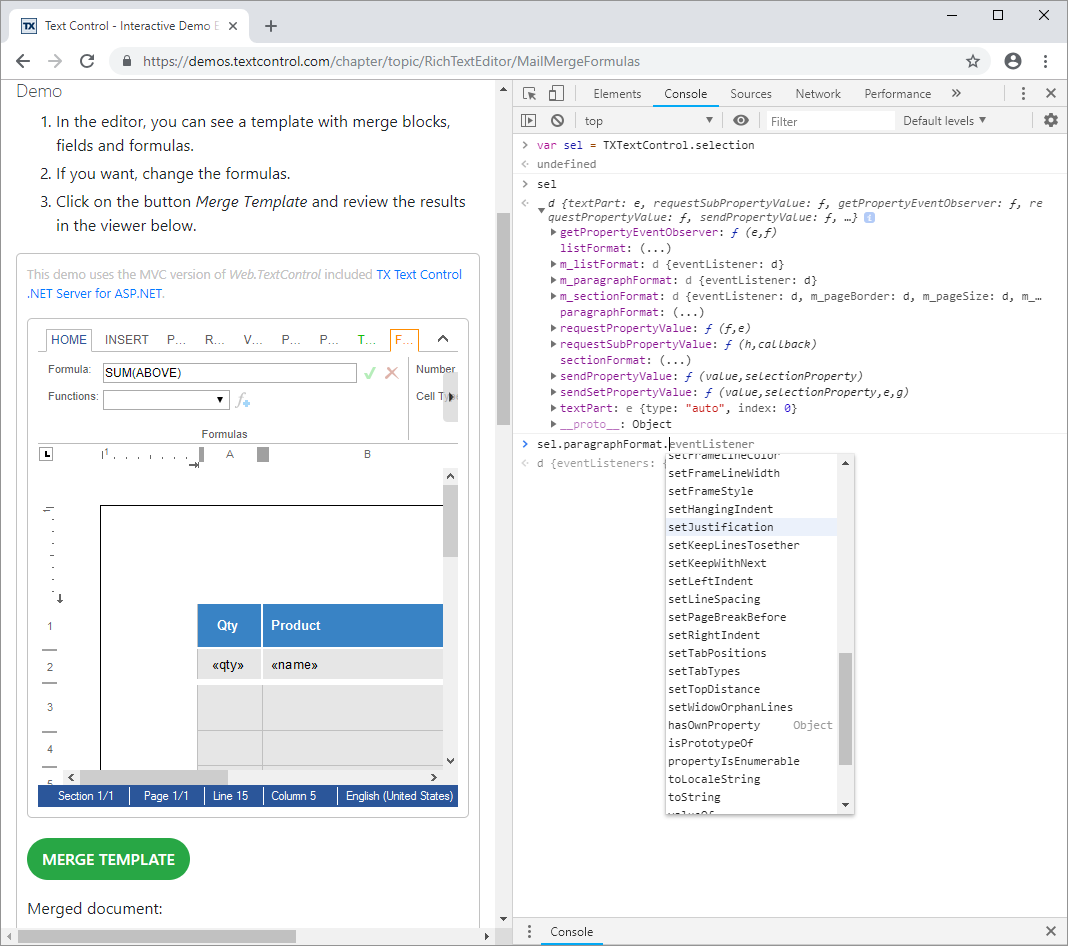

Extended JavaScript API
Extended JavaScript API with new methods, properties, and events. The JavaScript API of the HTML5-based editor part of TX Text Control .NET Server X16 has been extended with 14 new classes, 30+ new properties, 30+ new methods, and 8 new events.
The API now allows programmatic changes to the Javascript: Selection object and the Javascript: Selection.paragraph
