Collecting structured data from users and producing polished documents is a common requirement. Contracts, onboarding forms, declarations, and applications often follow this pattern: Users fill out forms, and systems generate professional PDF documents.

Many systems begin with an HTML form and then try to create a document from the collected data. This approach often results in layout issues and redundant logic between the web form and the final document.

A better approach is document-first architecture.

Using TX Text Control, you can start with a pixel-perfect document template, extract the form fields from it, dynamically generate an HTML form, collect user input, and merge the data back into the document to create a PDF.

The sample application demonstrates exactly this workflow using ASP.NET Core MVC and TX Text Control.

The Core Idea

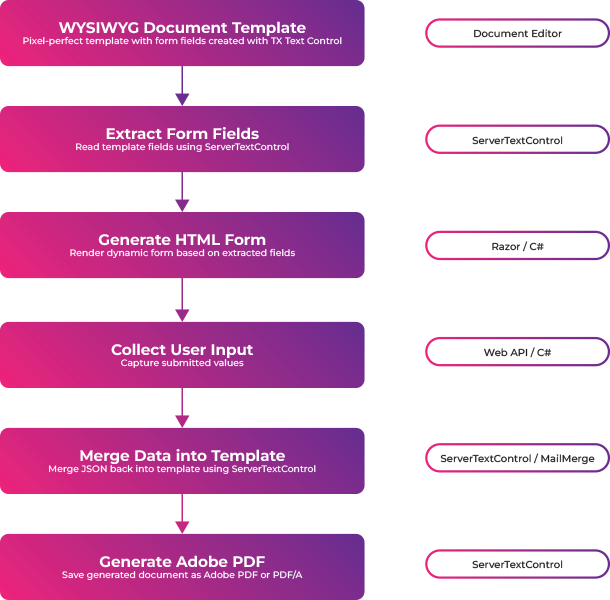

The architecture follows a simple but powerful pipeline.

Instead of maintaining two separate definitions of the same form, one for HTML and one for the document, the document template becomes the single source of truth.

• Consistent field definitions
• Predictable document layout
• No duplication between frontend and document generation
• True WYSIWYG document output

The sample repository demonstrates how to implement this approach in a modern ASP.NET Core MVC application.

Why Server-Side Generation Matters

An important aspect of this workflow is that the final document is generated on the server. This means that the merge process, document assembly, and PDF export are all handled in a controlled back-end environment rather than in the browser.

• The document generation logic stays centralized and consistent.
• Templates, business rules, and merge behavior are easier to maintain.
• Sensitive processing does not need to be pushed to the client.
• PDF output is based on the real document engine, not browser rendering differences.
• The final result is more reliable for contracts and other business documents.

This server-side approach is especially important for generating documents in a predictable and repeatable way. It ensures that the same input always produces the same professional result.

Step 1: Design the Pixel-Perfect Template

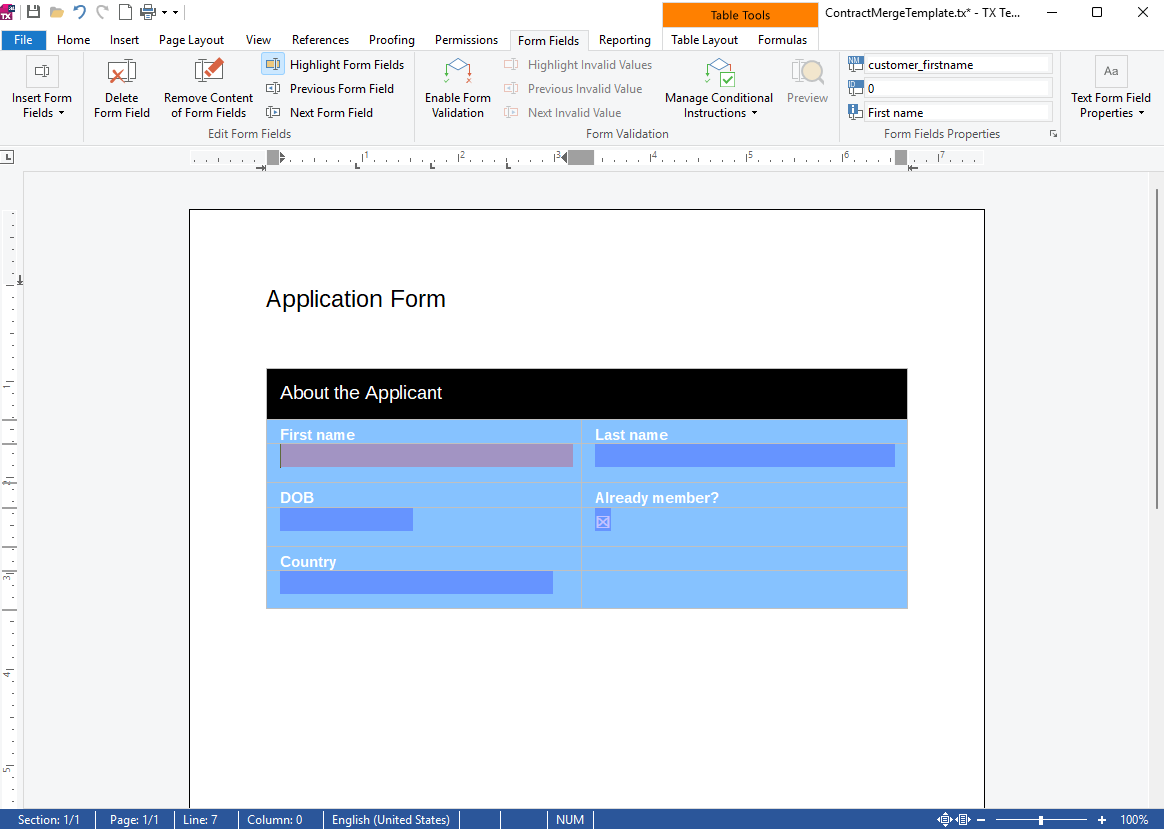

The process begins with a TX Text Control template. Form fields are then inserted into the template wherever the document requires user input.

Typical examples include:

• Customer name
• Dates
• Options (Country)
• Acceptance checkboxes

Since the template was designed using a WYSIWYG editor, the final document's layout will be exactly what the user receives. This differs fundamentally from HTML-to-PDF approaches, in which the layout must be recreated later.

Step 2: Extract Form Fields from the Template

The first step of the application process is to inspect the template and extract its form fields. The sample uses a helper class called TemplateFieldExtractor to do this. The extractor loads the template with ServerTextControl and lists all the form fields.

Conceptually the process looks like this:

using var tx = new ServerTextControl();
tx.Create();

tx.Load(templatePath);

foreach (var field in tx.FormFields)
{
    // Convert TX field into a descriptor
}

Each field is converted into a TemplateFieldDescriptor object.

public class TemplateFieldDescriptor
{
    public string Name { get; set; }
    public string Description { get; set; }
    public string FieldType { get; set; }
    public bool Required { get; set; }
    public string? DefaultValue { get; set; }
    public List<string> Options { get; set; }
}

These descriptors are the bridge between the document template and the web UI.

Step 3: Generate the HTML Form

Once the fields are extracted, the application dynamically generates an HTML form. Instead of writing large conditional blocks in Razor views, the sample uses a custom Tag Helper called FormFieldTagHelper. This allows rendering a form field with a single line:

<form-field descriptor="@field></form-field>

The Tag Helper internally decides which HTML element should be generated based on the field type.

• TextFormField → input type="text"
• DateFormField → input type="date"
• CheckFormField → input type="checkbox"
• SelectionFormField → select

This abstraction keeps the Razor view clean and reusable. The Tag Helper also automatically applies common UI patterns such as:

• Bootstrap styling
• Field icons
• Validation indicators
• Accessible HTML attributes

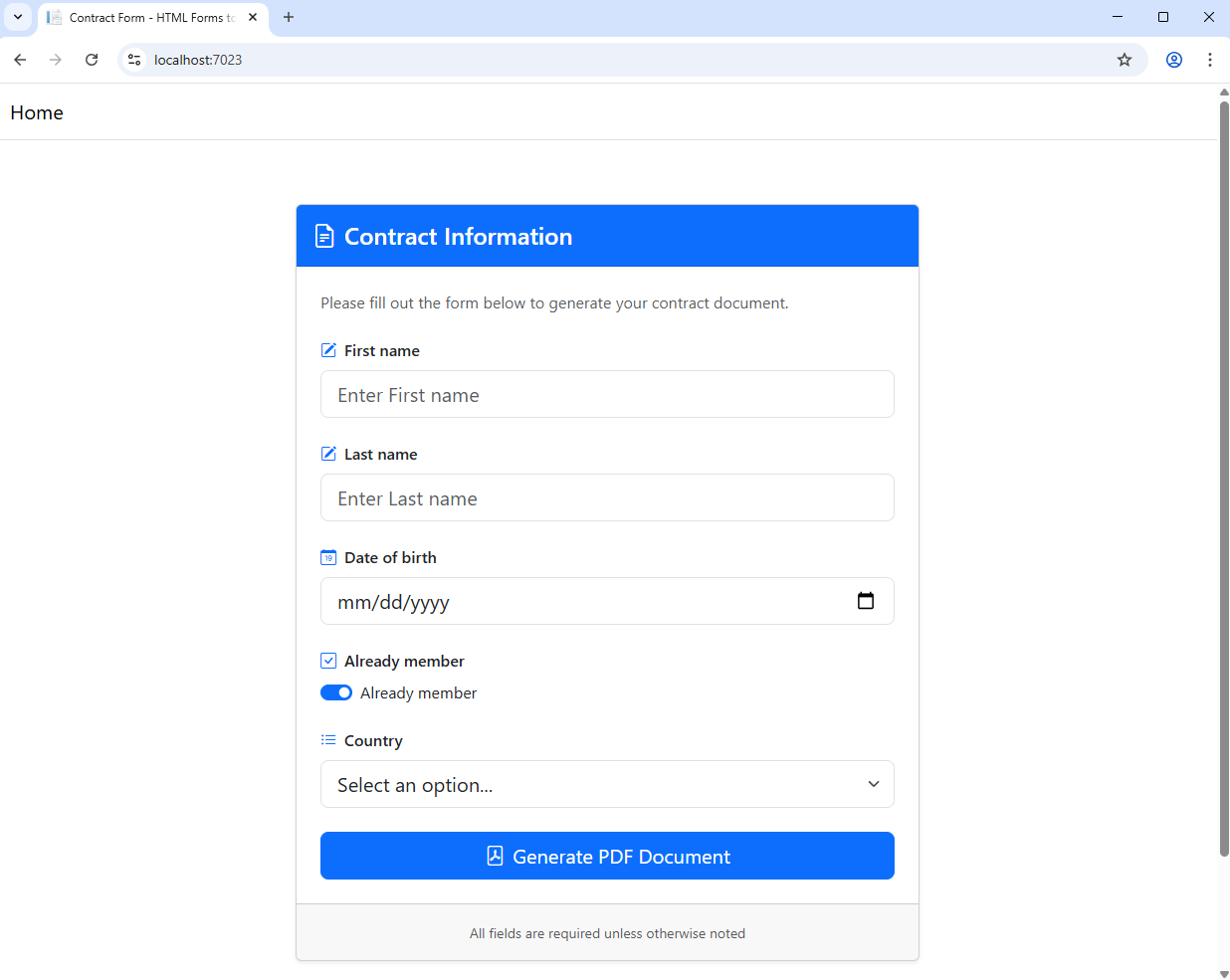

The result is a modern HTML form that reflects the document template's structure directly.

Step 4: Collect User Input

When the user submits the form, ASP.NET Core receives the values via IFormCollection. The controller converts the form values into JSON format, which is then used for the merge operation.

var values = form.Keys.ToDictionary(
    key => key,
    key => form[key].ToString());

var json = JsonSerializer.Serialize(values);

This JSON structure directly maps to the field names defined in the template.

Step 5: Merge Data into the Template

After receiving the user input, the server loads the original template again. The application then performs a MailMerge operation using TX Text Control's built-in MailMerge class. This class takes the JSON data and merges it directly into the document model.

using var tx = new ServerTextControl();
tx.Create();

tx.Load(templatePath);

var mailMerge = new MailMerge
{
    TextComponent = tx
};

mailMerge.MergeJsonData(json);

The merge operation replaces the document's merge fields with the submitted data. Since the merge occurs directly within the TX Text Control document model, the layout remains intact. Another advantage of server-side generation is that the merge logic and final rendering are handled centrally, making the output easier to validate, secure, and reproduce.

Step 6: Generate the PDF

Finally, the merged document is exported as a PDF.

tx.Save(out byte[] data, BinaryStreamType.AdobePDF);

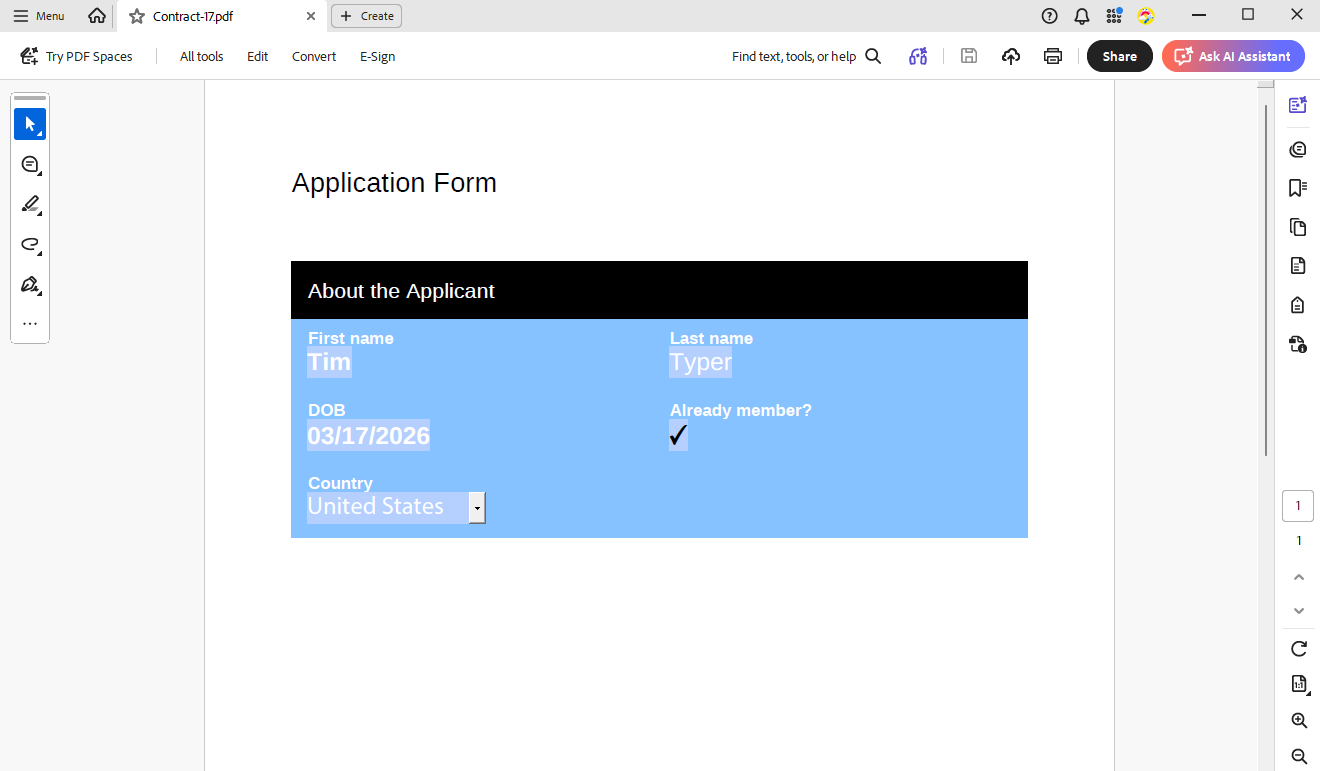

The resulting file is returned to the browser as a download. This creates a professional, pixel-perfect document that matches the original template design exactly. Since the PDF is generated on the server, users are not dependent on browser-specific PDF behavior or client-side rendering tricks to obtain the final document.

Changing the Template

One of the key advantages of this architecture is that modifying the document template is simple. Since the template serves as the source of truth, you can modify it in TX Text Control's WYSIWYG editor without altering any code. As long as you keep the field names the same, the application will automatically adapt to the new template structure.

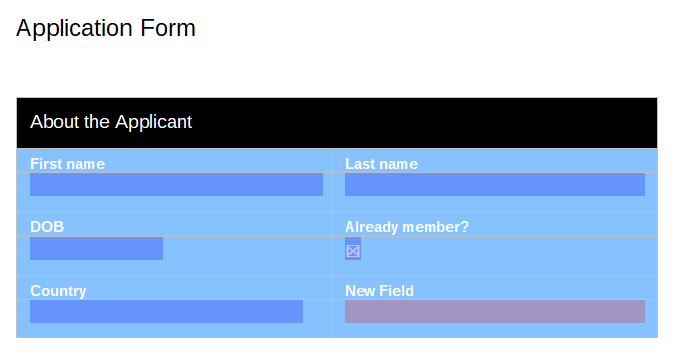

For instance, if you need to add a new field or modify the layout, you can do so directly in the template. The next time the application runs, it will extract and render the new fields in the HTML form without requiring additional coding. The following screenshot shows how a new field was added to the template and automatically appeared in the HTML form.

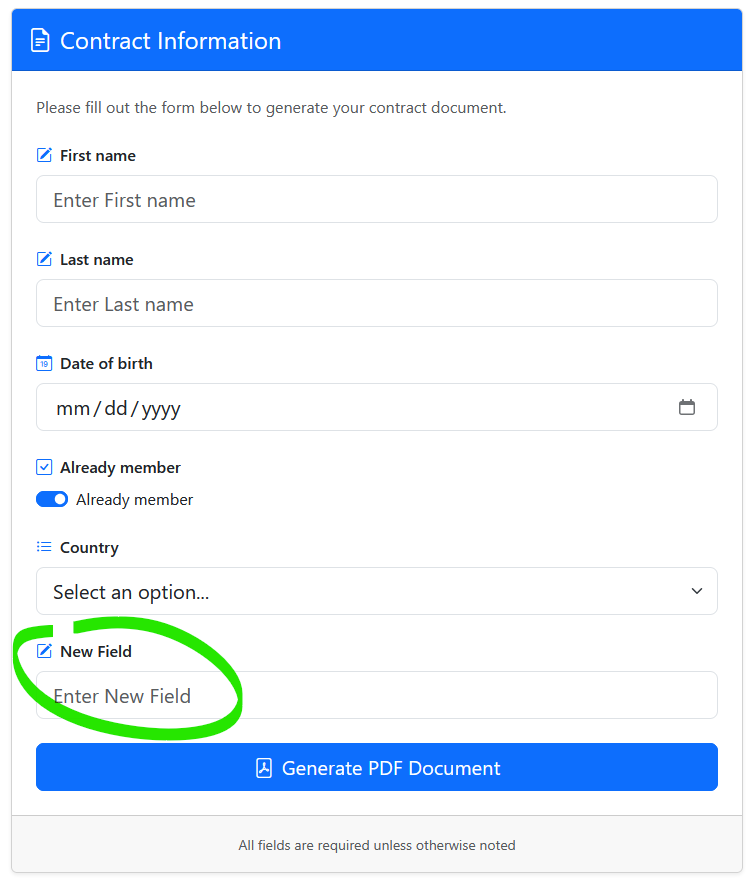

The new field is seamlessly rendered alongside the existing fields in the generated HTML form. This flexibility enables rapid iteration on document designs without modifying the underlying application logic.

Why This Architecture Is Powerful

This design solves a common problem in document applications. Without this approach, developers often struggle.

• An HTML form definition
• A document template
• Mapping logic between the two

Over time, these definitions can diverge. By establishing the document template as the definitive source, you can eliminate this duplication. The benefits are significant.

• True WYSIWYG output
• Single source of truth
• Faster development
• Maintainable architecture
• Reliable server-side PDF generation

Conclusion

Following this document-first architecture allows you to create a robust system for generating professional PDFs from user input. The sample application shows how to implement this workflow with ASP.NET Core MVC and TX Text Control. Starting with a pixel-perfect template, extracting form fields, and merging data server-side allows you to produce consistent, high-quality documents, avoiding the pitfalls of HTML-to-PDF conversion.
