Using TX Text Control .NET Server for ASP.NET with .NET 6

With the release of TX Text Control 30.0, .NET 5 and 6 support has been added. The following tutorial shows how to create a .NET 6 ASP.NET Core web application that uses the document editor TextControl ╰ TX Text Control .NET Server for ASP.NET
╰ Web.MVC Namespace
╰ TextControl Class
The TextControl class represents an extension object implementing the Text Control rich text editor functionality. and the ServerTextControl ╰ TX Text Control .NET Server for ASP.NET
╰ TXTextControl Namespace
╰ ServerTextControl Class
The ServerTextControl class implements a component that provide high-level text processing features for server-based applications. class to create documents.

Creating the Application

Make sure that you downloaded the latest version of Visual Studio 2022 that comes with the .NET 6 SDK.

1. In Visual Studio 2022, create a new project by choosing Create a new project.

2. Select ASP.NET Core Web App (Model-View-Controller) as the project template and confirm with Next.

3. Choose a name for your project and confirm with Next.

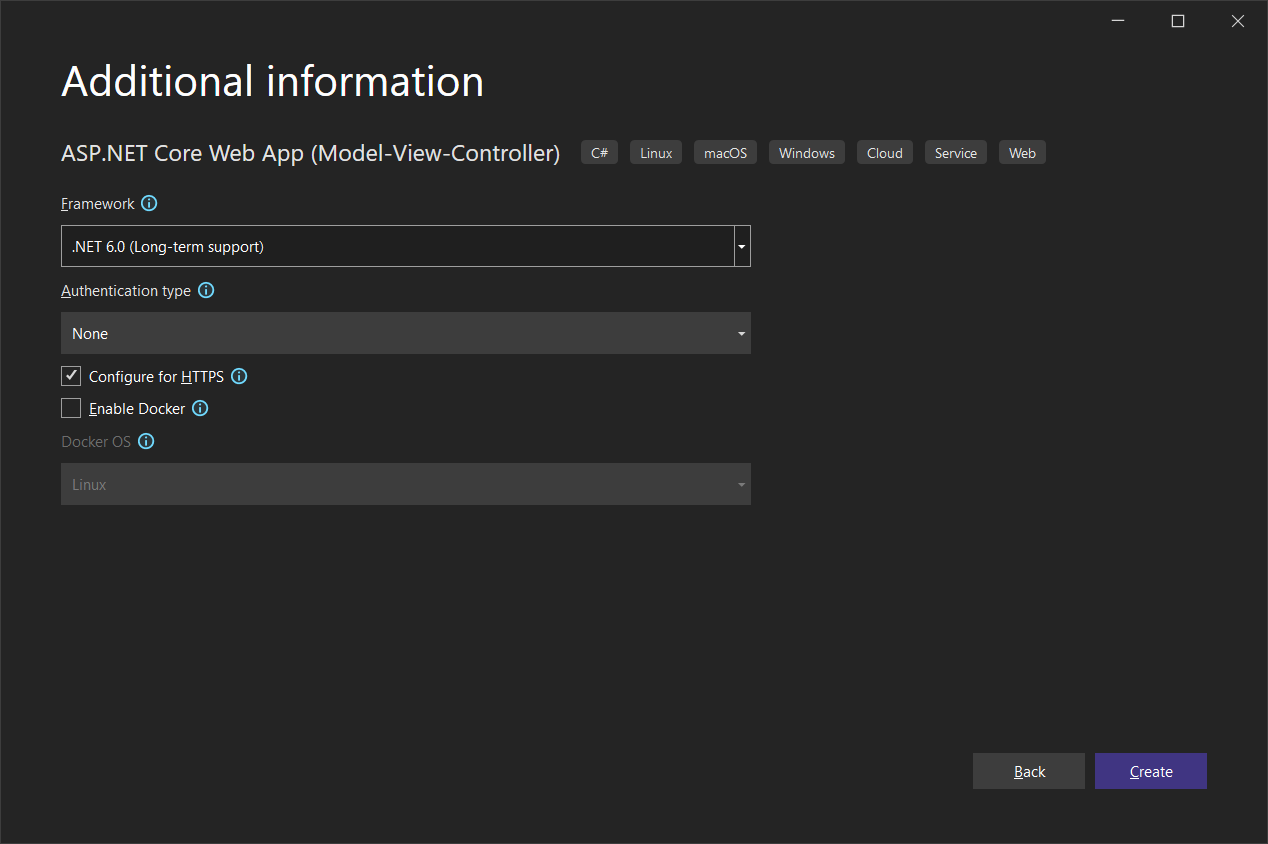

4. In the next dialog, choose .NET 6 (Long-term support) as the Framework and confirm with Create.



Adding the NuGet Package

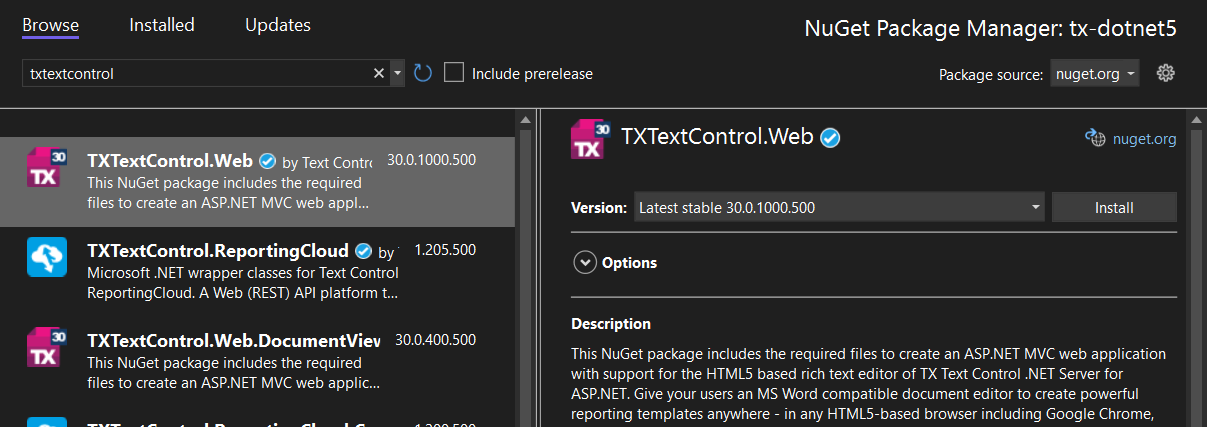

5. In the Solution Explorer, select your created project and choose Manage NuGet Packages... from the Project main menu.

   Browse for txtextcontrol.web and Install the latest version of the TXTextControl.Web package.



Configure the Application

6. Open the Program.cs file located in the project's root folder. Add the following code after the entry app.UseStaticFiles();:

   	// serve static linked files (JavaScript and CSS for the editor)
   	app.UseStaticFiles(new StaticFileOptions
   	{
   	FileProvider = new Microsoft.Extensions.FileProviders.PhysicalFileProvider(
   	System.IO.Path.Combine(System.IO.Path.GetDirectoryName(
   	System.Reflection.Assembly.GetEntryAssembly().Location),
   	"TXTextControl.Web")),
   	RequestPath = "/TXTextControl.Web"
   	});
   	// enable Web Sockets
   	app.UseWebSockets();
   	// attach the Text Control WebSocketHandler middleware
   	app.UseMiddleware<TXTextControl.Web.WebSocketMiddleware>();

   view raw startup.cs hosted with ❤ by GitHub

Adding the Control to the View

7. Find the Index.cshtml file in the Views -> Home folder. Replace the complete content with the following code:

   	@using TXTextControl.Web.MVC
   	@Html.TXTextControl().TextControl().Render()
   	<input type="button" value="Create PDF" onclick="createPDF()" />
   	@section Scripts {
   	<script type="text/javascript">
   	// converts base64 string back to a blob
   	function base64ToBlob(base64) {
   	var binary = atob(base64.replace(/\s/g, ''));
   	var len = binary.length;
   	var buffer = new ArrayBuffer(len);
   	var view = new Uint8Array(buffer);
   	for (var i = 0; i < len; i++) {
   	view[i] = binary.charCodeAt(i);
   	}
   	return view;
   	}
   	function createPDF() {
   	// save the contents of the editor
   	TXTextControl.saveDocument(TXTextControl.streamType.InternalUnicodeFormat, function (e) {
   	// call the Web API "CreatePDF"
   	$.ajax({
   	type: "POST",
   	url: "/Home/CreatePDF?id=123",
   	contentType: 'application/json',
   	data: JSON.stringify({
   	document: e.data
   	}),
   	success: successFunc,
   	error: errorFunc
   	});
   	function successFunc(data, status) {
   	// create a file blob
   	var file = new Blob([base64ToBlob(data)], { type: "application/pdf" });
   	// create a temporary link element
   	var a = document.createElement("a");
   	a.href = URL.createObjectURL(file);
   	a.download = "results.pdf";
   	// attach to body and click
   	document.body.appendChild(a);
   	a.click();
   	// remove the element
   	setTimeout(function () {
   	document.body.removeChild(a);
   	}, 0);
   	}
   	function errorFunc(xhr, ajaxOptions, thrownError) {
   	alert(thrownError);
   	}
   	});
   	}
   	</script>
   	}

   view raw test.cshtml hosted with ❤ by GitHub

   This code adds the Text Control to the view and button that calls a Web API endpoint to create a PDF document.

Adding ServerTextControl to the Project

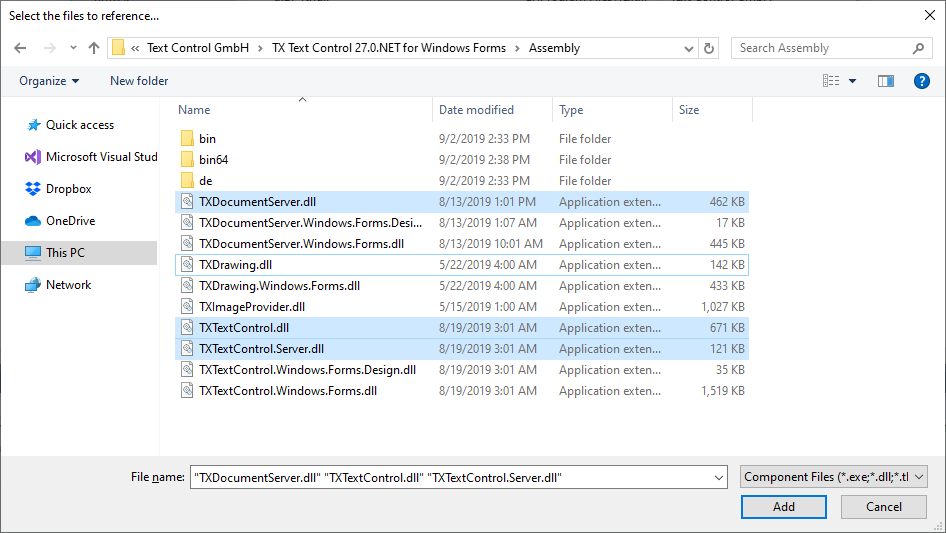

8. While the project is selected in the Solution Explorer, choose Project -> Add Project Reference... to open the Reference Manager. In the opened dialog, select Browse... to select the required TX Text Control assemblies. Navigate to the installation folder of TX Text Control and select the following assemblies from the Assembly folder:

   • TXDocumentServer.dll
   • TXTextControl.dll
   • TXTextControl.Server.dll



   Repeat this step with the following assemblies from the Assembly/bin64 folder:

   • txic.dll
   • txkernel.dll
   • txtools.dll

   After selecting these assemblies, close the Reference Manager by confirming with OK.

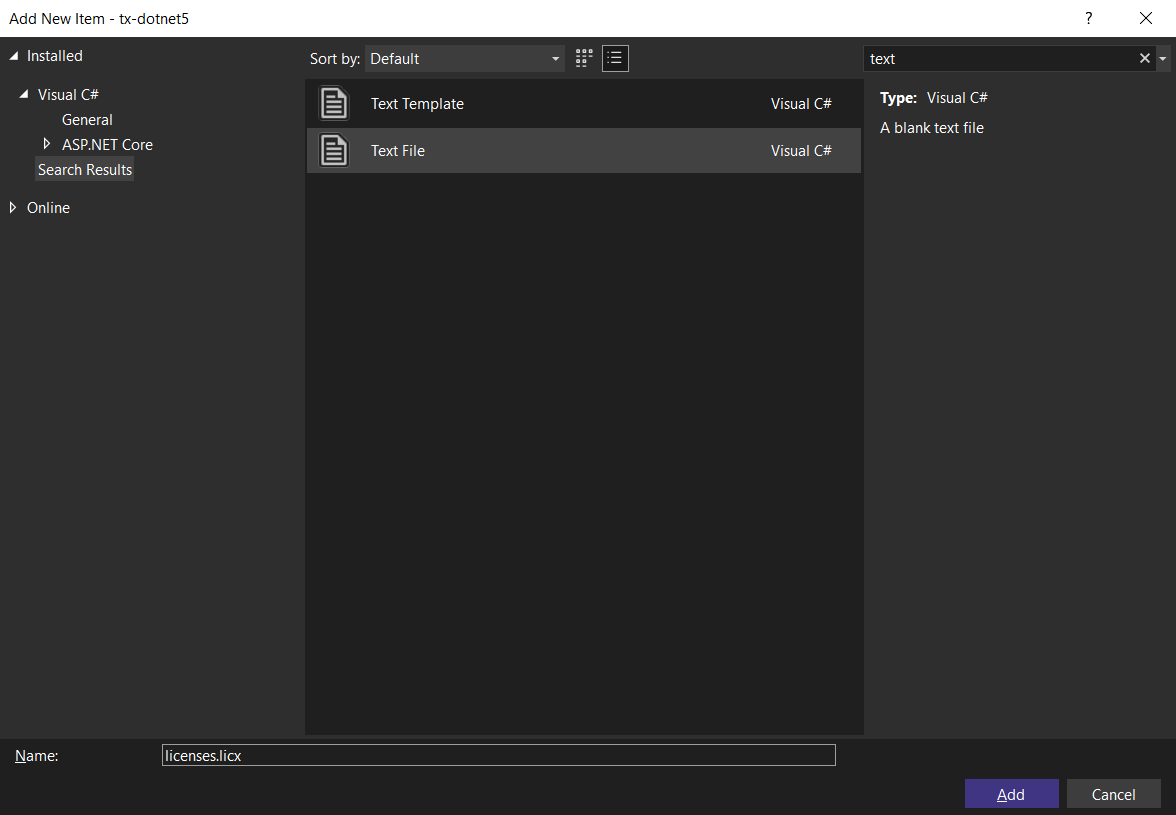

9. While the project is selected in the Solution Explorer, choose Project -> Add New Item.... Select Text File, name the file licenses.licx and close the dialog by clicking Add.



   Open the newly added file and add the following content:

   TXTextControl.ServerTextControl, TXTextControl.Server, Version=30.0.1500.500, Culture=neutral, PublicKeyToken=6b83fe9a75cfb638

   view raw licenses.licx hosted with ❤ by GitHub

   Set the Build Action property to Embedded Resource.

10. Select the project in the Solution Explorer and choose Edit Project File from the Project main menu. Find the PropertyGroup entry and replace the whole node with the following code:

    	<PropertyGroup>
    	<TargetFramework>net6.0</TargetFramework>
    	<EnableUnsafeBinaryFormatterSerialization>true</EnableUnsafeBinaryFormatterSerialization>
    	<EnableUnsafeBinaryFormatterInDesigntimeLicenseContextSerialization>true</EnableUnsafeBinaryFormatterInDesigntimeLicenseContextSerialization>
    	<ImplicitUsings>enable</ImplicitUsings>
    	<Nullable>enable</Nullable>
    	</PropertyGroup>

    view raw test.csproj hosted with ❤ by GitHub

    BinaryFormatter Information

    The above setting is required to enable the obsolete .NET BinaryFormatter while compiling the license into the assembly. We are working with Microsoft to avoid this requirement in the near future.

Adding a Web API Endpoint

13. Create a new class file in the Models folder named TransferDocument.cs and add the following code to the class:

    	public class TransferDocument {
    	public string Document { get; set; }
    	}

    view raw load.cs hosted with ❤ by GitHub

14. Open the HomeController.cs and add the following method:

    	[HttpPost]
    	public IActionResult CreatePDF([FromBody] TransferDocument document) {
    	// create a ServerTextControl
    	using (TXTextControl.ServerTextControl tx = new TXTextControl.ServerTextControl()) {
    	tx.Create();
    	tx.Load(Convert.FromBase64String(document.Document),
    	TXTextControl.BinaryStreamType.InternalUnicodeFormat);
    	byte[] bPDF;
    	tx.Save(out bPDF, TXTextControl.BinaryStreamType.AdobePDF);
    	return Ok(bPDF);
    	}
    	}

    view raw post.cs hosted with ❤ by GitHub

Now, compile and start the application. Type in some text and click the button Create PDF to call the created endpoint.
