We just published a new pre-release version of the TX Text Control DocumentViewer to NuGet:

https://www.nuget.org/packages/TXTextControl.Web.DocumentViewer/29.0.307.500-beta

You can install this version directly using the NuGet Package Manager:

Install-Package TXTextControl.Web.DocumentViewer -Version 29.0.307.500-beta

This new release comes with UI improvements such as an annotation object context toolbar and resizable sidebars.

UI Improvements

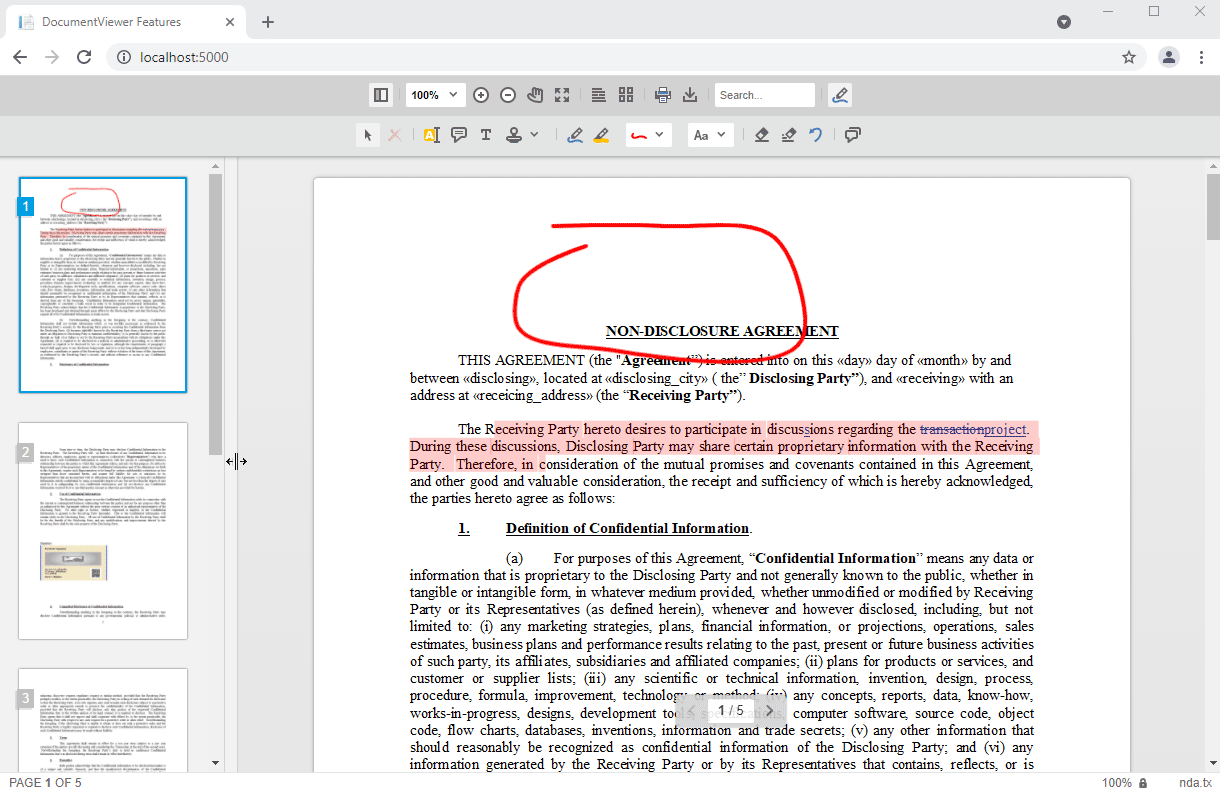

The following screen video shows the UI improvements including the resizable sidebars and the contextual annotation toolbars to add comments and to remove annotations.

UI improvements

Event Handling

The DocumentViewer received a new JavaScript method addEventListener to attach events. Currently supported events are:

  • annotationsChanged
  • signaturesCompleted

The events can be attached as shown in the following code snippet:

Loading...

In previous versions, the signature boxes were only available when the property ShowSignatureBar TX Text Control .NET Server for ASP.NET
Web.MVC.DocumentViewer Namespace
SignatureSettings Class
SignatureSettings.ShowSignatureBar Property
Specifies whether the signature bar is shown on initializing the DocumentViewer.
has been set to true. Now, the signatures boxes are available, in case a document is loaded with signature boxes included. The signature bar is not shown, if the ShowSignatureBar is set to false. In this case, the signature process can be started by clicking on one of the signature boxes or programmatically by calling the startSigningProcess method.

Loading...

In case all signature boxes have been signed and completed by the end-user, the event signaturesCompleted is fired and can be used to submit the document programmatically:

Loading...

Live Demo

You can test this new version in our live demos that has been already updated with the latest package version.

Live Demo
