The signature fields can be used with any image or signature representation, including the SVGs returned by the Document Viewer. The example discussed in this article shows how to create a custom signature appearance by adding custom text to an existing SVG signature representation.

Creating Custom Signatures

Let's take a look at how to use the SignatureBoxManager class and what the resulting signature box looks like. The following code adds a new signature box at the bottom left of page 1 of the current document loaded in a Text control object.

var signerData = new SignerData(
"John Doe", "Signer", "676 Sign Street", "john@signer.com", "I approve this document");
var signatureStyle = new SignatureStyle {
SvgImage = System.IO.File.ReadAllText("signature.svg"),
DetailsFont = new Font("Arial", 13)};
// Add a signature box to the document
var fieldName = SignatureBoxManager.AddSignatureBox(
textControl1,
new Size(8000, 2000),
1,
SignatureLocation.BottomLeft,
signerData,
signatureStyle
);
// Create a digital signature using a certificate
var certificate = new X509Certificate2("textcontrolself.pfx", "123");
var signatureFields = new List<DigitalSignature> { new DigitalSignature(certificate, null, fieldName) };
var saveSettings = new TXTextControl.SaveSettings
{
SignatureFields = signatureFields.ToArray()
};
// Save the document as PDF/A
textControl1.Save("signed.pdf", TXTextControl.StreamType.AdobePDFA, saveSettings);
view raw test.cs hosted with ❤ by GitHub

When this PDF document is opened in Acrobat Reader, the customized signature is displayed on the document.

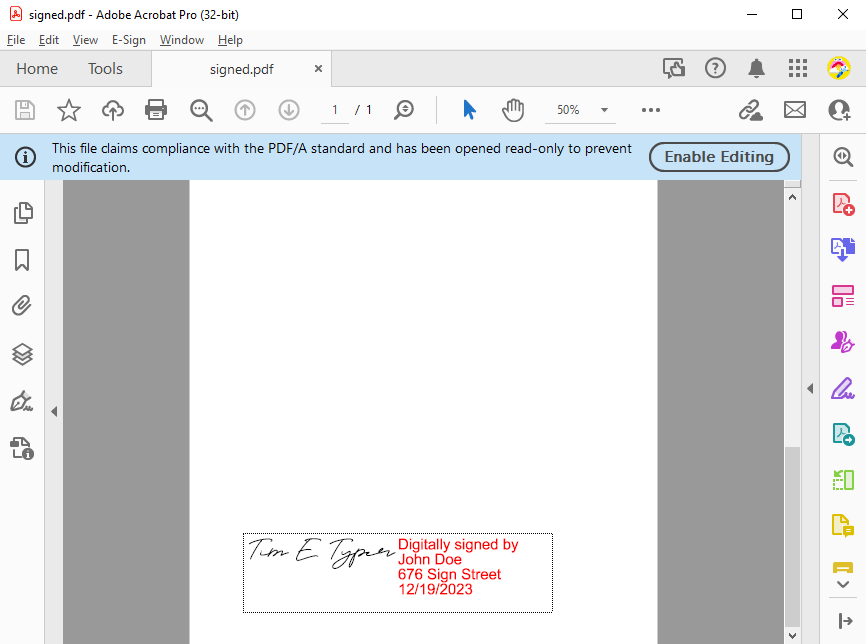

Created signature field

The following code generates a smaller signature box that is displayed in the upper-right corner of a document, with the additional information displayed in a different font.

var signerData = new SignerData(
"John Doe", "Signer", "676 Sign Street", "john@signer.com", "I approve this document");
var signatureStyle = new SignatureStyle {
SvgImage = System.IO.File.ReadAllText("signature.svg"),
DetailsFont = new Font("Times New Roman", 13)};
// Add a signature box to the document
var fieldName = SignatureBoxManager.AddSignatureBox(
textControl1,
new Size(3000, 2000),
1,
SignatureLocation.TopRight,
signerData,
signatureStyle
);
view raw custom.cs hosted with ❤ by GitHub

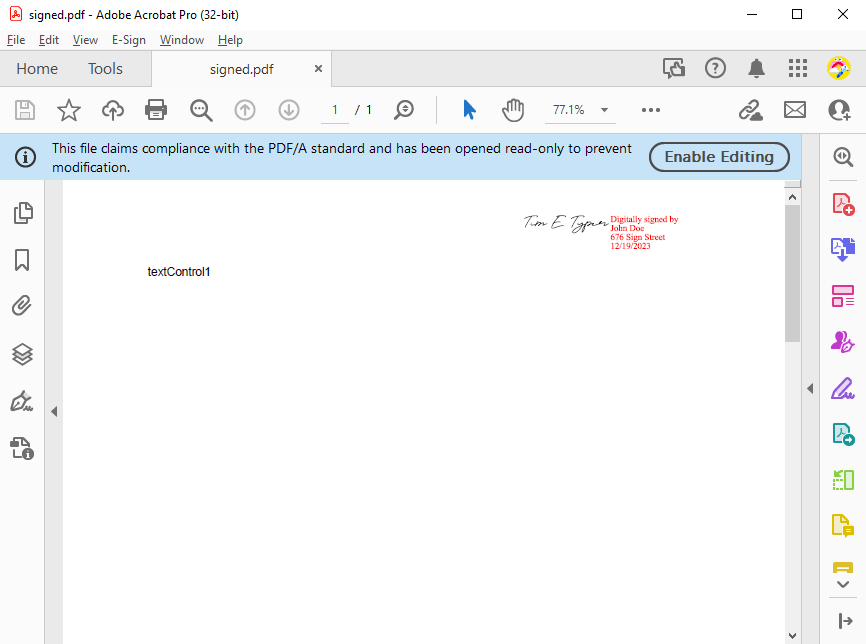

Created signature field

SignatureBoxManager Class

The code below shows the SignatureBoxManager class, which takes an existing SVG signature and embeds it into another SVG with additional custom data like signer name, date, and location.

using System;
using System.Drawing;
using System.IO;
using System.Text;
using System.Xml;
using TXTextControl;
public static class SignatureBoxManager
{
public static string AddSignatureBox(TextControl textControl, Size size, int page, SignatureLocation signatureLocation, SignerData signerData, SignatureStyle signatureStyle)
{
SignatureField field = new SignatureField(size, "sign1", 1);
field.SignerData = signerData;
var pageBounds = textControl.GetPages()[1].TextBounds;
var frameLocation = GetFrameLocation(signatureLocation, size, pageBounds);
textControl.SignatureFields.Add(field, 1, frameLocation, FrameInsertionMode.AboveTheText);
var stamp = Encoding.ASCII.GetBytes(GetSvgFromImage(size, signatureStyle.SvgImage, signerData, DateTime.Now.ToString(signatureStyle.DateFormat), signatureStyle));
using (MemoryStream ms = new MemoryStream(stamp, 0, stamp.Length, writable: false, publiclyVisible: true))
{
field.Image = new SignatureImage(ms);
}
return field.Name;
}
private static Point GetFrameLocation(SignatureLocation location, Size size, Rectangle pageBounds)
{
switch (location)
{
case SignatureLocation.TopRight:
return new Point(pageBounds.Right - size.Width, pageBounds.Top - 1440);
case SignatureLocation.BottomLeft:
return new Point(pageBounds.Left, pageBounds.Bottom - size.Height);
case SignatureLocation.BottomRight:
return new Point(pageBounds.Right - size.Width, pageBounds.Bottom - size.Height);
default:
return new Point(pageBounds.Left, pageBounds.Top - 1440);
}
}
private static string GetSvgFromImage(Size size, string svgImage, SignerData signerData, string date, SignatureStyle style)
{
var sizeInPixels = new Size(size.Width / 15, size.Height / 15);
var imageWidth = sizeInPixels.Width / 2;
var fontSize = sizeInPixels.Width / 20;
var signature = new Signature(svgImage, sizeInPixels);
var svg = new StringBuilder();
svg.Append("<svg xmlns=\"http://www.w3.org/2000/svg\" xmlns:xlink=\"http://www.w3.org/1999/xlink\" width=\"");
svg.Append(sizeInPixels.Width);
svg.Append("\" height=\"");
svg.Append(sizeInPixels.Height);
svg.Append("\">");
svg.Append("<g transform=\"scale(" + signature.ScalingFactor / 2 + ") translate(0 0)\"");
svg.Append(">");
svg.Append(svgImage);
svg.Append("</g>");
var textPositions = new[] { fontSize, fontSize * 2, fontSize * 3, fontSize * 4 };
foreach (var position in textPositions)
{
svg.Append($"<text x=\"{sizeInPixels.Width / 2}\" y=\"{position}\" font-family=\"{style.DetailsFont.FontFamily.Name}\" font-size=\"{fontSize}\" fill=\"red\">");
if (position == fontSize)
svg.Append("Digitally signed by");
else if (position == fontSize * 2)
svg.Append(signerData.Name);
else if (position == fontSize * 3)
svg.Append(signerData.Address);
else if (position == fontSize * 4)
svg.Append(date);
svg.Append("</text>");
}
svg.Append("</svg>");
return svg.ToString();
}
}
public enum SignatureLocation
{
TopLeft,
TopRight,
BottomLeft,
BottomRight
}
public class SignatureStyle
{
public SignatureStyle() { }
public string SvgImage { get; set; }
public bool ShowDate { get; set; } = true;
public bool ShowLocation { get; set; } = true;
public string DateFormat { get; set; } = "MM/dd/yyyy";
public Font DetailsFont { get; set; } = new Font("Arial", 12);
}
internal class Signature
{
private Size m_size;
private Size m_distinationSize;
private string m_signatureSVG;
private float m_scalingFactor = 1.0f;
public Signature(string signatureSVG, Size destinationSize)
{
m_signatureSVG = signatureSVG;
m_distinationSize = destinationSize;
m_size = GetSignatureSize();
m_scalingFactor = CalculateScaling();
}
public Size Size { get { return m_size; } }
public float ScalingFactor { get { return m_scalingFactor; } }
private Size GetSignatureSize()
{
XmlDocument input = new XmlDocument();
input.LoadXml(m_signatureSVG);
XmlNodeList childNodes = input.GetElementsByTagName("svg");
// find width or viewbox
if (childNodes[0].Attributes["width"] != null)
{
return new Size(
int.Parse(childNodes[0].Attributes["width"].Value),
int.Parse(childNodes[0].Attributes["height"].Value));
}
else if (childNodes[0].Attributes["viewBox"] != null)
{
var viewBox = childNodes[0].Attributes["viewBox"].Value.Split(' ');
return new Size(
int.Parse(viewBox[2]),
int.Parse(viewBox[3]));
}
return new Size(100, 100);
}
private float CalculateScaling()
{
float scalingFactor = 1;
if (m_size.Width > m_distinationSize.Width)
{
scalingFactor = (float)m_distinationSize.Width / (float)m_size.Width;
}
return scalingFactor;
}
}
view raw custom.cs hosted with ❤ by GitHub

The class calculates the location of the signature field, the image ratio to scale the signature representation, and adds the additional text to the generated SVG.

The appearance of the created signature can be customized by specifying a font, date format, and options for whether or not to display certain information.
